Hydrodynamic Analysis of Circular Translational Polishing under Mixed Lubrication

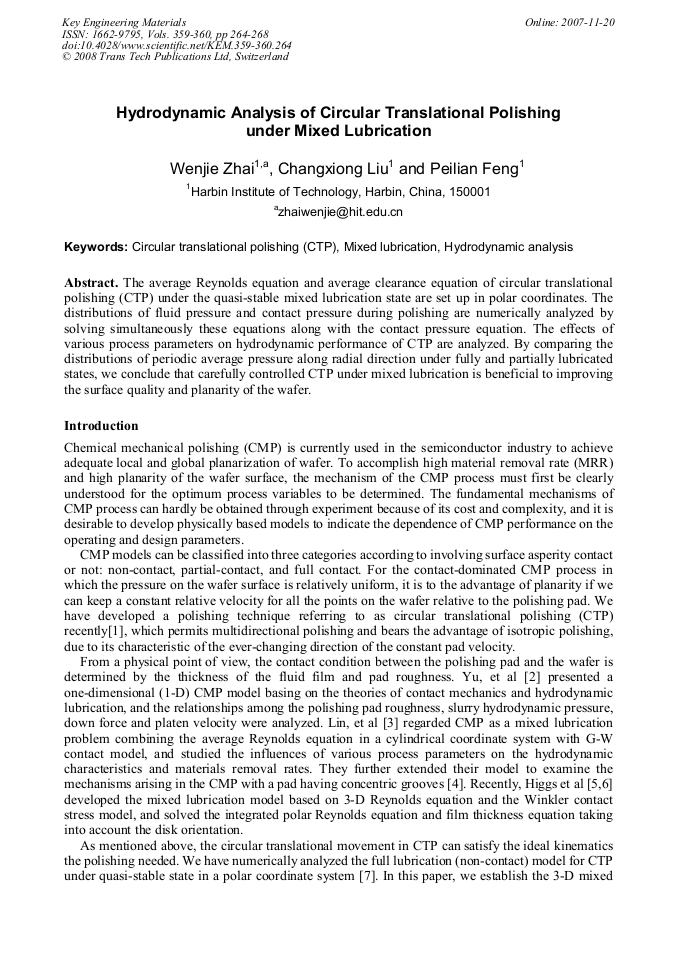

Article Preview

The average Reynolds equation and average clearance equation of circular translational polishing (CTP) under the quasi-stable mixed lubrication state are set up in polar coordinates. The distributions of fluid pressure and contact pressure during polishing are numerically analyzed by solving simultaneously these equations along with the contact pressure equation. The effects of various process parameters on hydrodynamic performance of CTP are analyzed. By comparing the distributions of periodic average pressure along radial direction under fully and partially lubricated states, we conclude that carefully controlled CTP under mixed lubrication is beneficial to improving the surface quality and planarity of the wafer.



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




W. J. Zhai et al., "Hydrodynamic Analysis of Circular Translational Polishing under Mixed Lubrication ", Key Engineering Materials, Vols. 359-360, pp. 264-268, 2008

Online since:

November 2007




[1] W.J. Zhai, Y.L. Wang and C.X. Liu: Harbin Institute of Technology, (2006), p.59. (In Chinese).

[2] T.K. Yu, C. Yu and M. Orlowski: IEEE International Workshop on Numerical Modeling of Processes and Devices for Integrated Circuits (New York, June 5-6, 1994), pp.29-32.

[3] J.F. Lin, J.D. Chern, Y.H. Chanh, P.L. Kuo and M.S. Tsai: ASME J of Trib., Vol. 126 (2004), pp.185-199.

[4] J.F. Lin, S.C. Chen, Y.L. Ouyang and M.S. Tsai: ASME J of Trib., Vol. 128 (2006), pp.445-459.

[5] F.C. Higgs, S.H. Ng, L. Borucki, I. Yoon and S. Danyluk: J. Electrochem. Soc., Vol. 152 (2005) No. 3, pp.193-198.

[6] S.H. Ng, F.C. Higgs, I. Yoon and S. Danyluk: ASME J. Tribo., Vol. 127 (2005), pp.287-292.

[7] W.J. Zhai and C.X. Liu: Lubrication Engineering, Vol. 179 (2006) No. 7, pp.45-48. (In Chinese).

[8] N. Patir and H.S. Cheng: ASME J. of Lub. Eng., Vol. 100 (1987) No. 1, pp.12-18.

[9] J.A. Greenwood and J.H. Tripp: Tribology Group, Vol. 185 (1986) No. 48, pp.625-633.
