Study of Finishing Internal Surface Using Magnetic Force Generated by Rotating Magnetic Field in Electromotor

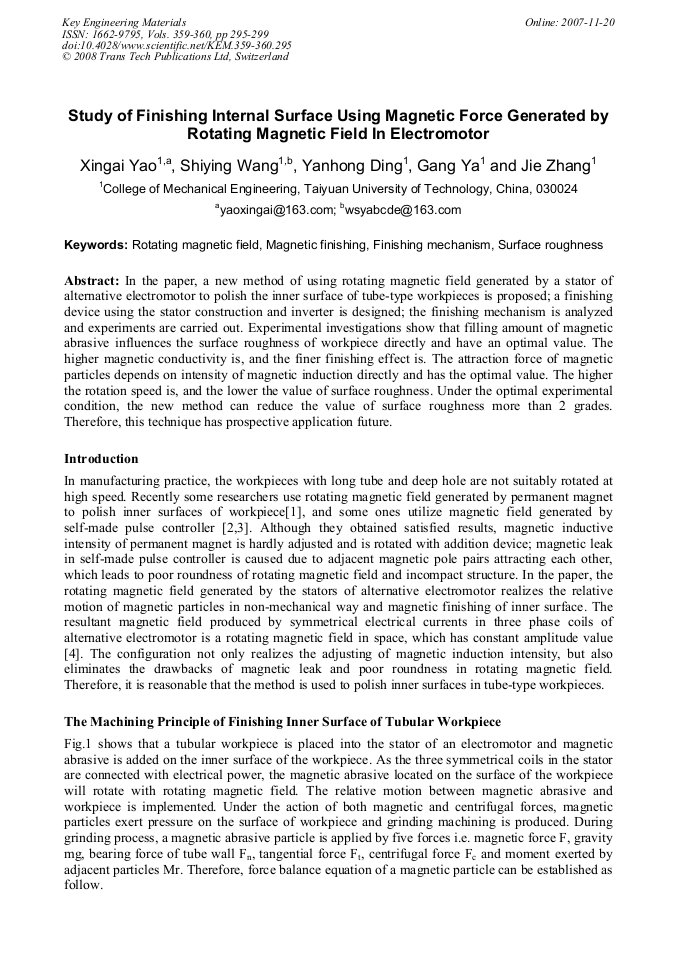

Article Preview

In the paper, a new method of using rotating magnetic field generated by a stator of alternative electromotor to polish the inner surface of tube-type workpieces is proposed; a finishing device using the stator construction and inverter is designed; the finishing mechanism is analyzed and experiments are carried out. Experimental investigations show that filling amount of magnetic abrasive influences the surface roughness of workpiece directly and have an optimal value. The higher magnetic conductivity is, and the finer finishing effect is. The attraction force of magnetic particles depends on intensity of magnetic induction directly and has the optimal value. The higher the rotation speed is, and the lower the value of surface roughness. Under the optimal experimental condition, the new method can reduce the value of surface roughness more than 2 grades. Therefore, this technique has prospective application future.



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




X. G. Yao et al., "Study of Finishing Internal Surface Using Magnetic Force Generated by Rotating Magnetic Field in Electromotor ", Key Engineering Materials, Vols. 359-360, pp. 295-299, 2008

Online since:

November 2007




[1] J.G. Li: Advanced Manufacturing Engineering, (2005) No. 6, pp.61-62. (In Chinese).

[2] J.C. Fang, H.O. Zhang and Z.J. Jin: Mechanical Science and Technology, Vol. 20 (2001) No. 1. (In Chinese).

[3] P. X . Yao, H.L. Chen and J.M. Wang: Key Engineering Materials, Vols. 304-305 (2006), pp.379-383.

[4] W.Y. Niu: Electrical Motor (China Electric Press, Beijing 2003), pp.97-109. (In Chinese).

[5] S.C. Yang: Surface Quality and Finishing Technology (Machine Industry Press, Beijing 1999), pp.192-193. (In Chinese).

[6] T. Mori., K. Hirota and Y. Kawashima: Journal of Materials Processing Technology, Vols. 143-144 (2003), pp.682-686.

[7] Y. Wang: Electric Machining, (1999) No. 3, pp.28-32. (In Chinese).

[8] Physical Department of Beijing University: Ferromagnetic (Science Press, Beijing 1976), pp.123-162. (In Chinese).
