Surface Texturing Technology by Laser Honing Based on Hydrodynamic Lubrication

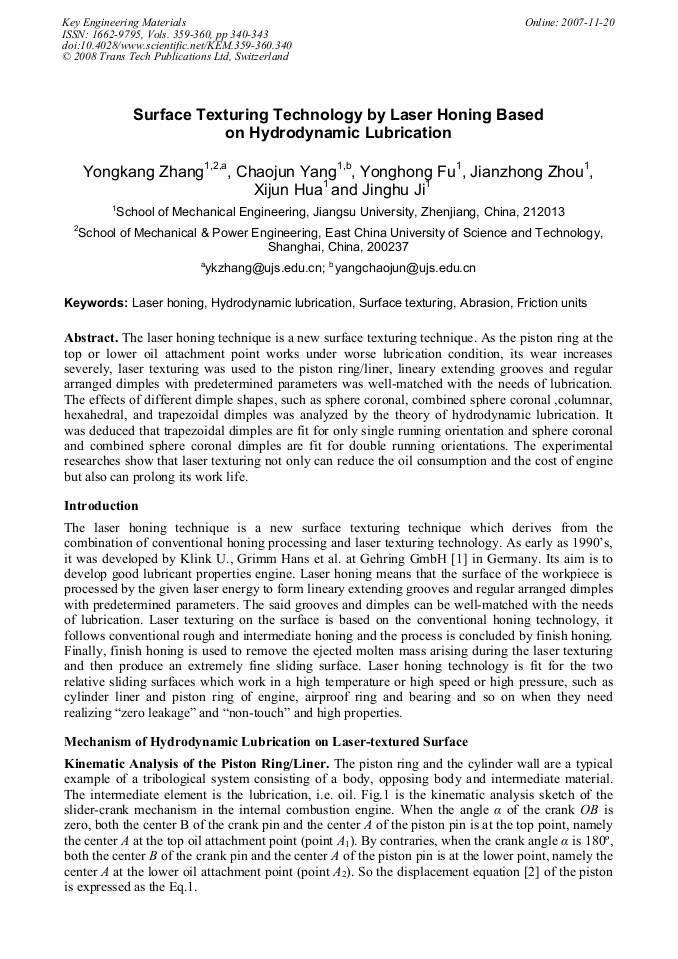

Article Preview

The laser honing technique is a new surface texturing technique. As the piston ring at the top or lower oil attachment point works under worse lubrication condition, its wear increases severely, laser texturing was used to the piston ring/liner, lineary extending grooves and regular arranged dimples with predetermined parameters was well-matched with the needs of lubrication. The effects of different dimple shapes, such as sphere coronal, combined sphere coronal ,columnar, hexahedral, and trapezoidal dimples was analyzed by the theory of hydrodynamic lubrication. It was deduced that trapezoidal dimples are fit for only single running orientation and sphere coronal and combined sphere coronal dimples are fit for double running orientations. The experimental researches show that laser texturing not only can reduce the oil consumption and the cost of engine but also can prolong its work life.



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




Y. K. Zhang et al., "Surface Texturing Technology by Laser Honing Based on Hydrodynamic Lubrication", Key Engineering Materials, Vols. 359-360, pp. 340-343, 2008

Online since:

November 2007




[1] http: /www. Gehring. de.

[2] Z.H. Wu and C.M. Wang: Internal Combustion Engine Design (Beijing University of Science and Technology Press, Beijing 1989).

[3] P.S. Zhang and S.C. Lu: Elastohydrodynamic Lubrication and its Application (High Education Press, Beijing 1995).

[4] Y.H. Fu, Y.X. Ye, Y.K. Zhang and et al: Chinese Journal of Mechanical Engineering, Vol. 38 (2002) No. 8, p.115.

[5] V. Wong and T. Tian: Annual Technical Progress Report (2006).

[6] Y.D. Zhang and Alveolate: Grooves Design and Manufacture Technology (Science and Technology Press, 2004).
