Detection of Grinding Surface’s Quality Based on Image Technique

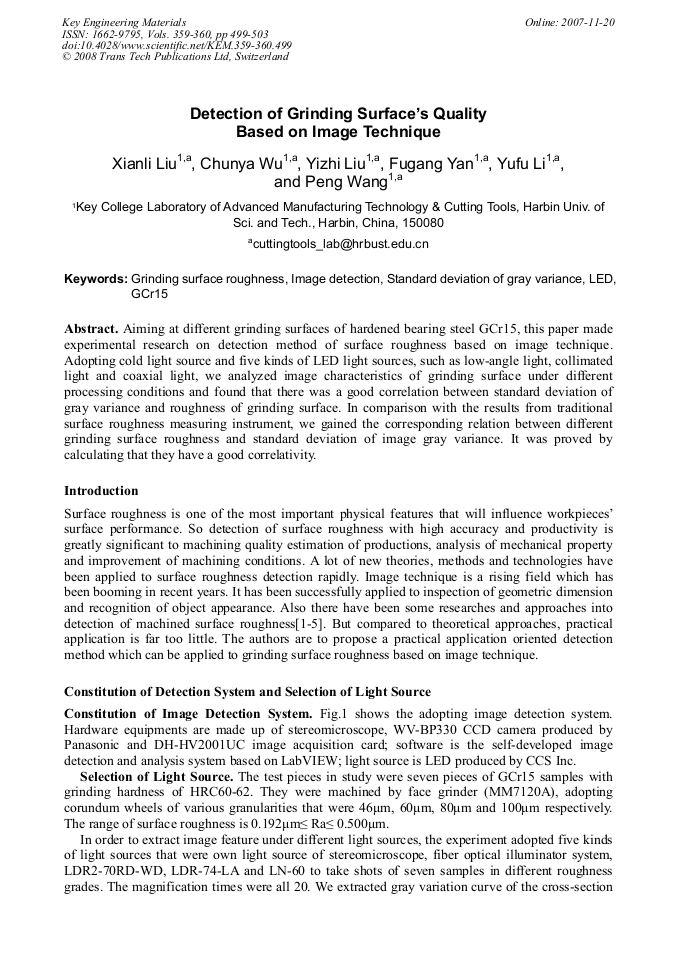

Article Preview

Aiming at different grinding surfaces of hardened bearing steel GCr15, this paper made experimental research on detection method of surface roughness based on image technique. Adopting cold light source and five kinds of LED light sources, such as low-angle light, collimated light and coaxial light, we analyzed image characteristics of grinding surface under different processing conditions and found that there was a good correlation between standard deviation of gray variance and roughness of grinding surface. In comparison with the results from traditional surface roughness measuring instrument, we gained the corresponding relation between different grinding surface roughness and standard deviation of image gray variance. It was proved by calculating that they have a good correlativity.



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




X. L. Liu et al., "Detection of Grinding Surface’s Quality Based on Image Technique", Key Engineering Materials, Vols. 359-360, pp. 499-503, 2008

Online since:

November 2007




[1] Z.T. Zhu and S.F. Li: Machinery Manufacturing Engineer, (2002) No. 3, pp.46-47 (In Chinese).

[2] C. Ma, M. Li, and C.K. Wang: Journal of Nanchang Institute of Aeronautical Technology (Natural Science), Vol. 17 (2003) No. 3, pp.51-55 (In Chinese).

[3] X.L. Liu, Y.J. Wang, Y.F. Li, F.G. Yan and Y.L. Zhao: Proceedings of SPIE (November, 2004). Vol. 5632, pp.139-146.

[4] W.M. Cheng and L.L. Chen: Measurement & Control Technology, Vol. 23 (2005) No. 5, pp.33-35 (In Chinese).

[5] G. Zheng, H.S. Su, Y.L. Xie and W. Liu: Chinese Journal of Scientific Instrument, Vol. 23 (2002) No. 3, pp.77-78 (In Chinese). Fig. 9 Relationship between Ra and W.
