Mechanism of Material Removal and the Generation of Defects by MD Analysis in Three-Dimensional Simulation in Abrasive Processes

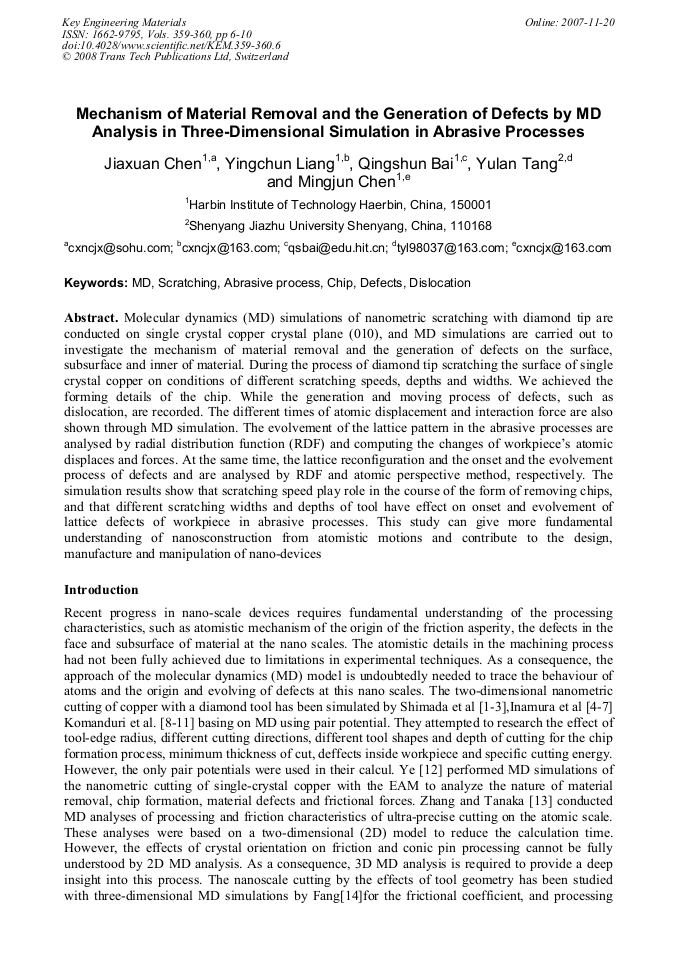

Article Preview

Molecular dynamics (MD) simulations of nanometric scratching with diamond tip are conducted on single crystal copper crystal plane (010), and MD simulations are carried out to investigate the mechanism of material removal and the generation of defects on the surface, subsurface and inner of material. During the process of diamond tip scratching the surface of single crystal copper on conditions of different scratching speeds, depths and widths. We achieved the forming details of the chip. While the generation and moving process of defects, such as dislocation, are recorded. The different times of atomic displacement and interaction force are also shown through MD simulation. The evolvement of the lattice pattern in the abrasive processes are analysed by radial distribution function (RDF) and computing the changes of workpiece’s atomic displaces and forces. At the same time, the lattice reconfiguration and the onset and the evolvement process of defects and are analysed by RDF and atomic perspective method, respectively. The simulation results show that scratching speed play role in the course of the form of removing chips, and that different scratching widths and depths of tool have effect on onset and evolvement of lattice defects of workpiece in abrasive processes. This study can give more fundamental understanding of nanosconstruction from atomistic motions and contribute to the design, manufacture and manipulation of nano-devices



Key Engineering Materials (Volumes 359-360)

Edited by:

Jiuhua Xu, Xipeng Xu, Guangqi Cai and Renke Kang




J. X. Chen et al., "Mechanism of Material Removal and the Generation of Defects by MD Analysis in Three-Dimensional Simulation in Abrasive Processes", Key Engineering Materials, Vols. 359-360, pp. 6-10, 2008

Online since:

November 2007




[1] S. Shimada, N. Ikawa, G. Ohmori and H. Tanaka: Annals of the CIRP, Vol. 41 (1991) No. 1, pp.117-120.

[2] S. Shimada, N. Ikawa, G. Ohmori, H. Tanaka, J. Uchikoshi and H. Yoshinaga: Annal of the CIRP, Vol. 42 (1993) No. 1, pp.91-94.

DOI: 10.1016/s0007-8506(07)62399-3

[3] S. Shimada, N. Ikawa, G. Ohmori, H. Tanaka and J. Uchikoshi: Annal of the CIRP, Vol. 43 (1994) No. 51, pp.51-54.

[4] T. Inamura, H. Suzuki and N. Takezawa: Int. J. Japan. Soc. Prec. Eng, Vol. 25 (1991), pp.259-66.

[5] T. Inamura, N. Takezawa and Y. Kumaki: Annal of the CIRP, Vol. 42 (1993) No. 1, pp.79-82.

[6] T. Inamura, N. Takezawa, Y. Kumaki and T. Sata: Annal of the CIRP, Vol. 43 (1994) No. 1, pp.47-50.

[7] T. Inamura, N. Takezawa N. Taniguchi: Annal of the CIRP, Vol. 41 (1992) No. 1, pp.121-124.

[8] R.K. Chandrasekaran and L.M. Raff: Wear, Vol. 240 (2000), pp.113-143.

[9] R. Komanduri, M. Lee and L.M. Raff: Journal of Machine Tools & Manufacture, Vol. 44 (2004), pp.1115-1124.

[10] R. Komanduri, N. Chandrasekaran and L.M. Raff: Materials Science and Engineering A, Vol. 340 (2003), pp.58-67.

[11] Y.Y. Ye, R. Biswas, J.R. Morris, A Bastawros and A. Chandra: Nanotechnology, Vol. 11 (2000), pp.148-153.

[12] L. Zhang and H. Tanaka: Wear, Vol. 211 (1997), pp.44-53.

[13] T.H. Fang, C.I. Weng: Nanotechnology, Vol. 1 (2000)1, pp.148-153.

[14] M.S. Daw and M.I. Baskes: Physics Review Letter, Vol. 50 (1983), pp.1285-1983; Phys. Rev. B, Vol. 29 (1984), p.6443-(1984).

[15] R.A. Johnson: Phys. Rev. B, Vol. 37 (1989), pp.3924-1988; Vol. 37 (1989), pp.6121-1988; Vol. 39 (1989), pp.554-559.

[16] S. Nose: J. Chem. Phys, Vol. 84 (1984), pp.551-559.

[17] W.G. Hoover: Phy. Rev. A, Vol. 31 (1985), pp.1695-1697.

[18] J. Li, K.J. Van Vliet, T. Zhu, S. Yip and S. Suresh: Nature, Vol. 418 (2002), pp.307-310.
