In Vivo Demonstration of 2 Types of Microporosity on the Kinetic of Bone Ingrowth and Biphasic Calcium Phosphate Bioceramics Resorption

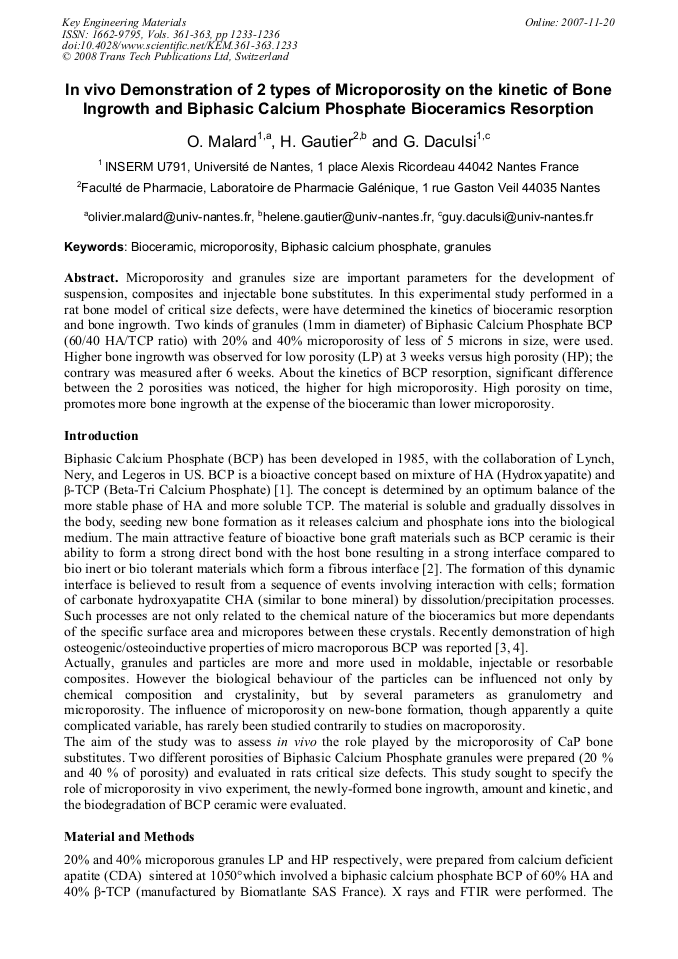

Article Preview

Microporosity and granules size are important parameters for the development of suspension, composites and injectable bone substitutes. In this experimental study performed in a rat bone model of critical size defects, were have determined the kinetics of bioceramic resorption and bone ingrowth. Two kinds of granules (1mm in diameter) of Biphasic Calcium Phosphate BCP (60/40 HA/TCP ratio) with 20% and 40% microporosity of less of 5 microns in size, were used. Higher bone ingrowth was observed for low porosity (LP) at 3 weeks versus high porosity (HP); the contrary was measured after 6 weeks. About the kinetics of BCP resorption, significant difference between the 2 porosities was noticed, the higher for high microporosity. High porosity on time, promotes more bone ingrowth at the expense of the bioceramic than lower microporosity.



Key Engineering Materials (Volumes 361-363)

Main Theme:

Edited by:

Guy Daculsi and Pierre Layrolle




O. Malard et al., "In Vivo Demonstration of 2 Types of Microporosity on the Kinetic of Bone Ingrowth and Biphasic Calcium Phosphate Bioceramics Resorption", Key Engineering Materials, Vols. 361-363, pp. 1233-1236, 2008

Online since:

November 2007




[1] Daculsi G. (1998) Biomaterials, 19: 1473-1478.

[2] De Groot, K. 1988. Ann N Y Acad Sci 523: 227.

[3] Le Nihouannen D, Daculsi G, Saffarzadeh A, Gauthier O, Delplace S, Pilet P, P. Layrolle. (2005) Bone. Jun; 36(6): 1086-93.

DOI: 10.1016/j.bone.2005.02.017

[4] Daculsi G, Layrolle P. Osteoinductive properties of Micro Macroporous biphasic calcium phosphate bioceramics. (2004) Key Engineering Materials.; 254-256: 1005-8.

DOI: 10.4028/

[5] Malard O, Bouler Jm, Guicheux J, Heymann D, Pilet P, Coquard C, Daculsi G. (1999) J Biomed Mater Res, , 46 : 103-111.

DOI: 10.1002/(sici)1097-4636(199907)46:1<103::aid-jbm12>;2-z

[6] Daculsi G., Weiss P., Delecrin J., Grimandi G., Passuti N., Guerin F. (1994) Patent n° 94-01-414 1994235.

[7] Daculsi G., Weiss P., Bouler J.M., Gauthier O., Aguado E. (1999) Bone, 25: 59-61.

[8] Millot F., Grimandi G., Weiss P. Daculsi G. (1999) Cells and Mat. 9: 21-30.

[9] Le Guehennec L, Layrolle P, Daculsi G. Eur Cell Mater. 2004 Sep 13; 8: 1-11.

[10] Daculsi G., Khairoun I., LeGeros R., Moreau F., Pilet P., Bourges X., Weiss P., Gauthier O., (2007) Key Engineering Material, 330-332: 811-814.

DOI: 10.4028/

Fetching data from Crossref.
This may take some time to load.
