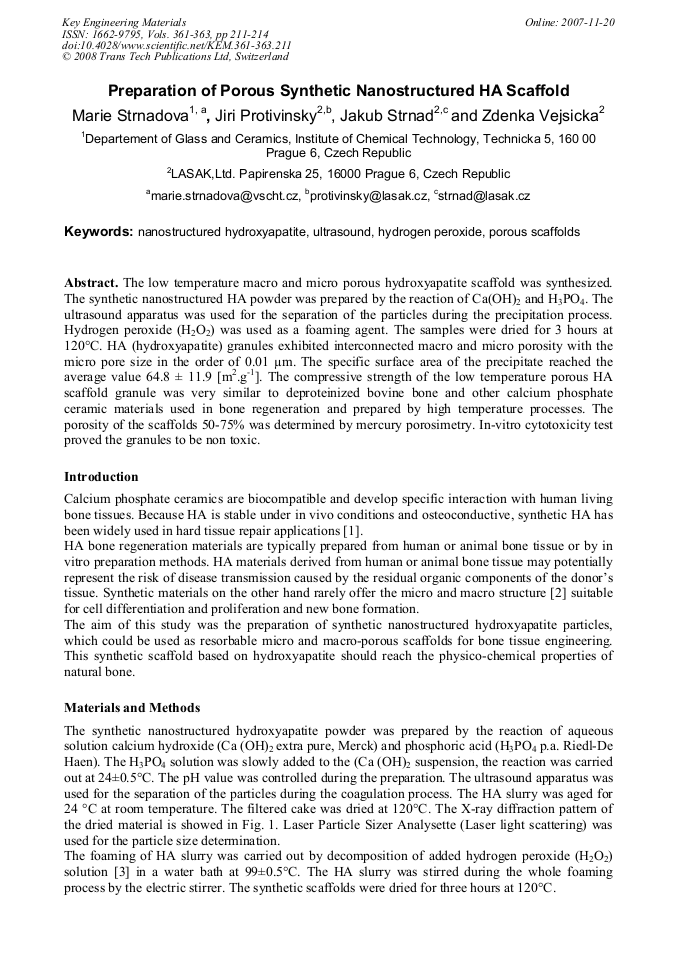

The low temperature macro and micro porous hydroxyapatite scaffold was synthesized. The synthetic nanostructured HA powder was prepared by the reaction of Ca(OH)2 and H3PO4. The ultrasound apparatus was used for the separation of the particles during the precipitation process. Hydrogen peroxide (H2O2) was used as a foaming agent. The samples were dried for 3 hours at 120°C. HA (hydroxyapatite) granules exhibited interconnected macro and micro porosity with the micro pore size in the order of 0.01 'm. The specific surface area of the precipitate reached the average value 64.8 ± 11.9 [m2.g-1]. The compressive strength of the low temperature porous HA scaffold granule was very similar to deproteinized bovine bone and other calcium phosphate ceramic materials used in bone regeneration and prepared by high temperature processes. The porosity of the scaffolds 50-75% was determined by mercury porosimetry. In-vitro cytotoxicity test proved the granules to be non toxic.
