Rough Bioglass Films Prepared by Magnetron Sputtering

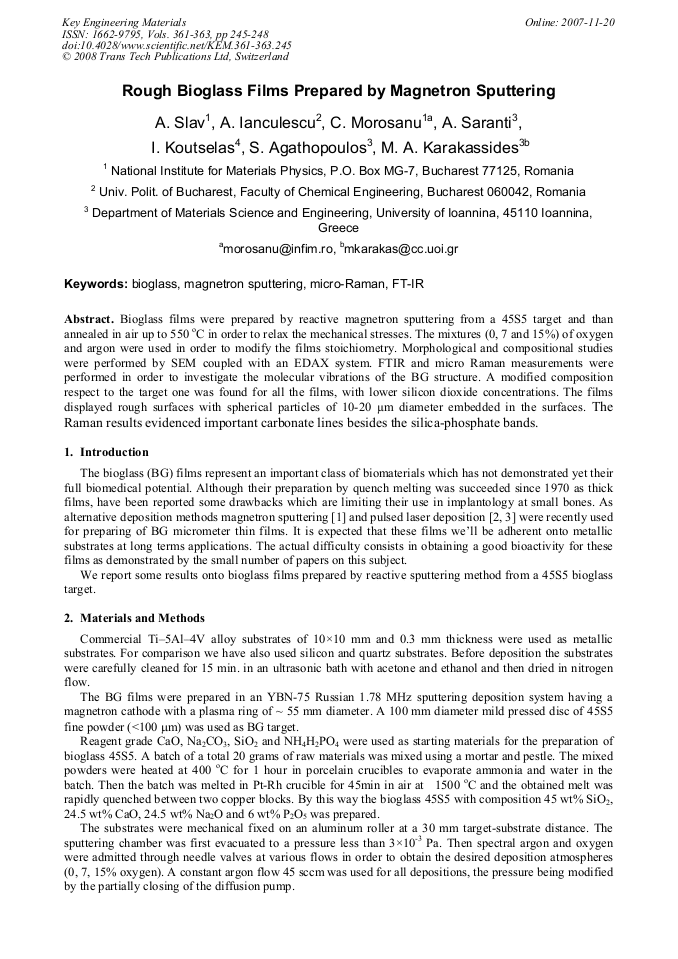

Article Preview

Bioglass films were prepared by reactive magnetron sputtering from a 45S5 target and than annealed in air up to 550 oC in order to relax the mechanical stresses. The mixtures (0, 7 and 15%) of oxygen and argon were used in order to modify the films stoichiometry. Morphological and compositional studies were performed by SEM coupled with an EDAX system. FTIR and micro Raman measurements were performed in order to investigate the molecular vibrations of the BG structure. A modified composition respect to the target one was found for all the films, with lower silicon dioxide concentrations. The films displayed rough surfaces with spherical particles of 10-20 μm diameter embedded in the surfaces. The Raman results evidenced important carbonate lines besides the silica-phosphate bands.



Key Engineering Materials (Volumes 361-363)

Main Theme:

Edited by:

Guy Daculsi and Pierre Layrolle




A. Slav et al., "Rough Bioglass Films Prepared by Magnetron Sputtering", Key Engineering Materials, Vols. 361-363, pp. 245-248, 2008

Online since:

November 2007




[1] C.C. Mardare et all, J. European Ceram Soc 23 (2003), pp.1027-1030.

[2] Zhao Y., Chen C., Wang D., Surface Review and Letters 12 (3), pp.401-408.

[3] Serra J. et all, Key Engineering Materials 192-195, pp.635-638.

[4] Agathopoulos S, Tulyaganov DU, Ventura JMG, Kannan S, Saranti A, Karakassides MA, Ferreira JMF, J. Non-Cryst. Solids, 352 (4), 322-328, (2006).


[5] D.U. Tulyaganov, S. Agathopoulos, J.M. Ventura, M.A. Karakassides, O. Fabrichnaya, J.M.F. Ferreira, J. Eur. Ceram. Soc. 26 (2006), pp.1463-1471.

[6] A. Saranti, I. Koutselas, and M.A. Karakassides, J. Non-Cryst. Solids, 352, (2006), pp.390-398.

[7] E.I. Kamitsos, M.A. Karakassides and A.P. Patsis,J. Non-Cryst. Solids, 111, 252 (1989).
