Strength and Chemical Stability Due to Aging of Two Bone Void Filler Materials

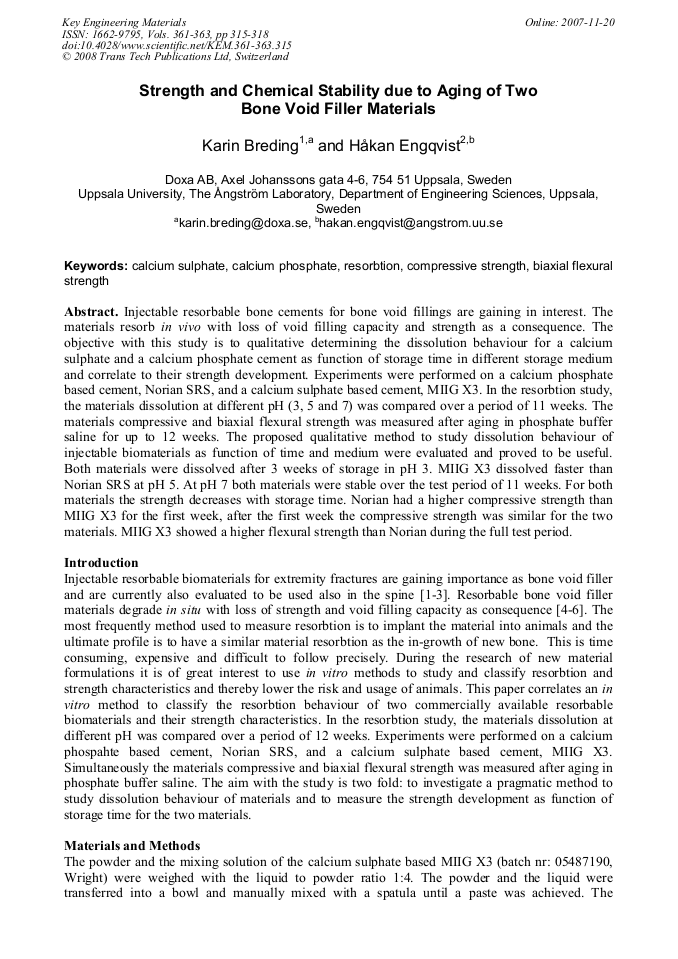

Article Preview

Injectable resorbable bone cements for bone void fillings are gaining in interest. The materials resorb in vivo with loss of void filling capacity and strength as a consequence. The objective with this study is to qualitative determining the dissolution behaviour for a calcium sulphate and a calcium phosphate cement as function of storage time in different storage medium and correlate to their strength development. Experiments were performed on a calcium phosphate based cement, Norian SRS, and a calcium sulphate based cement, MIIG X3. In the resorbtion study, the materials dissolution at different pH (3, 5 and 7) was compared over a period of 11 weeks. The materials compressive and biaxial flexural strength was measured after aging in phosphate buffer saline for up to 12 weeks. The proposed qualitative method to study dissolution behaviour of injectable biomaterials as function of time and medium were evaluated and proved to be useful. Both materials were dissolved after 3 weeks of storage in pH 3. MIIG X3 dissolved faster than Norian SRS at pH 5. At pH 7 both materials were stable over the test period of 11 weeks. For both materials the strength decreases with storage time. Norian had a higher compressive strength than MIIG X3 for the first week, after the first week the compressive strength was similar for the two materials. MIIG X3 showed a higher flexural strength than Norian during the full test period.



Key Engineering Materials (Volumes 361-363)

Main Theme:

Edited by:

Guy Daculsi and Pierre Layrolle




K. Breding and H. Engqvist, "Strength and Chemical Stability Due to Aging of Two Bone Void Filler Materials", Key Engineering Materials, Vols. 361-363, pp. 315-318, 2008

Online since:

November 2007




[1] S:M. Kenny, Bone cements and fillers: A review, Journal of materials science: Materials in medicine 14 (2003) 923-938.

[2] Lewis, G., Injectable bone cements for use in Vertebroplasty and kyphoplasty: state of-the-art review, J Biomed Mater Res Part B: Appl Biomater, 76 B: 456-468 (2006).


[3] Verlaan, J. -J., Oner, F. C., Dhert, W. J. A., Anterior spinal column augmentation with injectable bone cements, Biomaterials 27 290-301 (2006).


[4] E. Fernandez, Calcium phosphate bone cements for clinical applications Part I: Solution chemistry, Journal of materials science: Materials in medicine 10 (1999) 169-176.

[5] Felix Theiss, Biocompatibility and resorption of a brushite calcium phosphate cement, Biomaterials 26 (2005) 4383-4394.


[6] Racquel Z. LeGeros, Biodegradation and Bioresorption of Calcium Phosphate Ceramics, Clinical Materials 14 (1993) 65-68.


[7] ISO 10993: 14.

[8] Cranmer, David C. Mechanical Testing Methodology for Ceramic Design and Reliability. u. o. : Marcel Dekker, Inc, 1998. ISBN 0-8247-9567-9.

[9] ISO 9917, Water based cements.

[10] Chow, L.C., Monographs in Oral Science, Vol 18, Octacalcium phosphate (2001).
