Inspection Technology for F-Theta Lens: Practices and Discussions

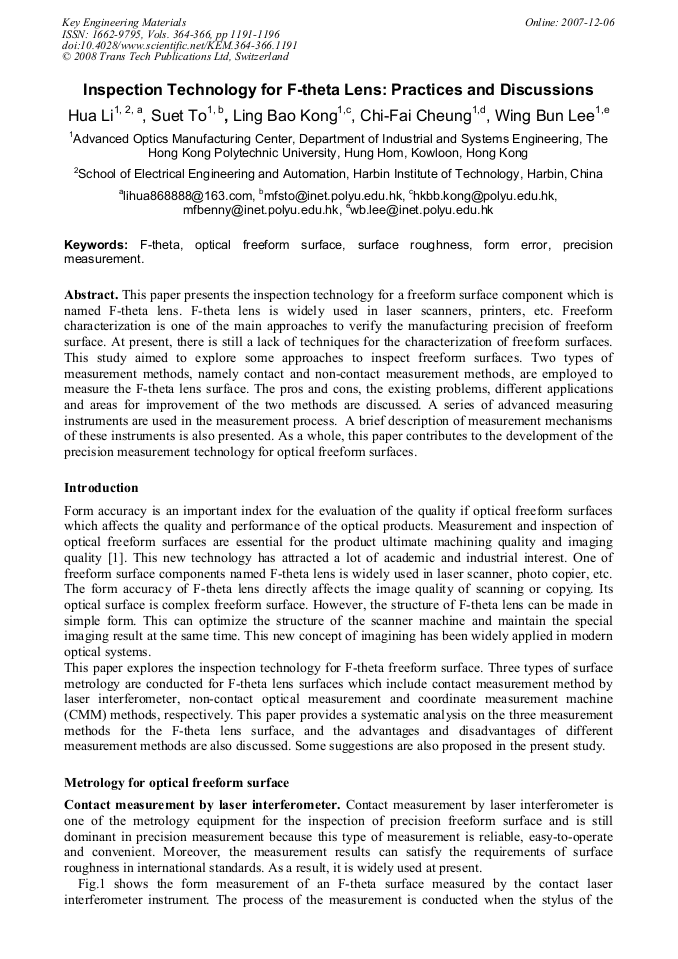

Article Preview

This paper presents the inspection technology for a freeform surface component which is named F-theta lens. F-theta lens is widely used in laser scanners, printers, etc. Freeform characterization is one of the main approaches to verify the manufacturing precision of freeform surface. At present, there is still a lack of techniques for the characterization of freeform surfaces. This study aimed to explore some approaches to inspect freeform surfaces. Two types of measurement methods, namely contact and non-contact measurement methods, are employed to measure the F-theta lens surface. The pros and cons, the existing problems, different applications and areas for improvement of the two methods are discussed. A series of advanced measuring instruments are used in the measurement process. A brief description of measurement mechanisms of these instruments is also presented. As a whole, this paper contributes to the development of the precision measurement technology for optical freeform surfaces.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




H. Li et al., "Inspection Technology for F-Theta Lens: Practices and Discussions", Key Engineering Materials, Vols. 364-366, pp. 1191-1196, 2008

Online since:

December 2007




[1] Q.S. Li, Y. Cheng, B.P. Zhan and F.Z. Cai, Study on Profile Measuring in Computer Controlled Fabrication of Optical Free-form Surface. Optics and Precision Engineering, 7(3), (1999).

[2] W.B. Lee, S. To and C.F. Cheung, Design and Advanced Manufacturing Technology for Freeform Optics, The Hong Kong Polytechnic University, 2005, 7, P5.

[3] http: /218. 7. 193. 182. /PRV/xinxijishu/dnxt/hardware/dnxt_hardware_9. htm.

[4] J.C. Lee, Y.M. Lee and Y.H. Kao, Microscopic surface profilometry by fringe projection method. Proceeding of China Mechanical Engineering 21th National Conference, (1993).

[5] F. Xie, J.L. Li, T.B. Xie, and Z. Li, Synthesis Measuring System for Engineering Surface Roughness. Tool Engineering, 4, (1999).

[6] Y.Q. Li, M.Q. Zhu, Status and Development of the Modern Precision Measurement Technology. Aeronautical Manufacturing Technology, 3, (1999).

[7] M.B. Zhou, D.J. Lin, L.R. Guo and Y.K. Guo, Measurement of Microstructures Topography. Optics and Precision Engineering, 3, (1999).

[8] B. Liu, W. Zheng, X.F. Qiang and J.F. Jiang, 3D Surface Profile Measurement Based on the Phase-shift Interfering Technique. Journal of Harbin University of Science and Technology, 3, (1999).

[9] http: /www. vertinfo. com/motoronline/productdetail. asp?cpid=7753.

[10] http: /www. jpkc. cq. edu. cn/ChongQ_2004_dxwl/lixiang3/content/dxwl12/Dxwl-120103b. htm.
