An Investigation of Form Errors Predicted Model for Injection Moulded Aspheric VCD Lens

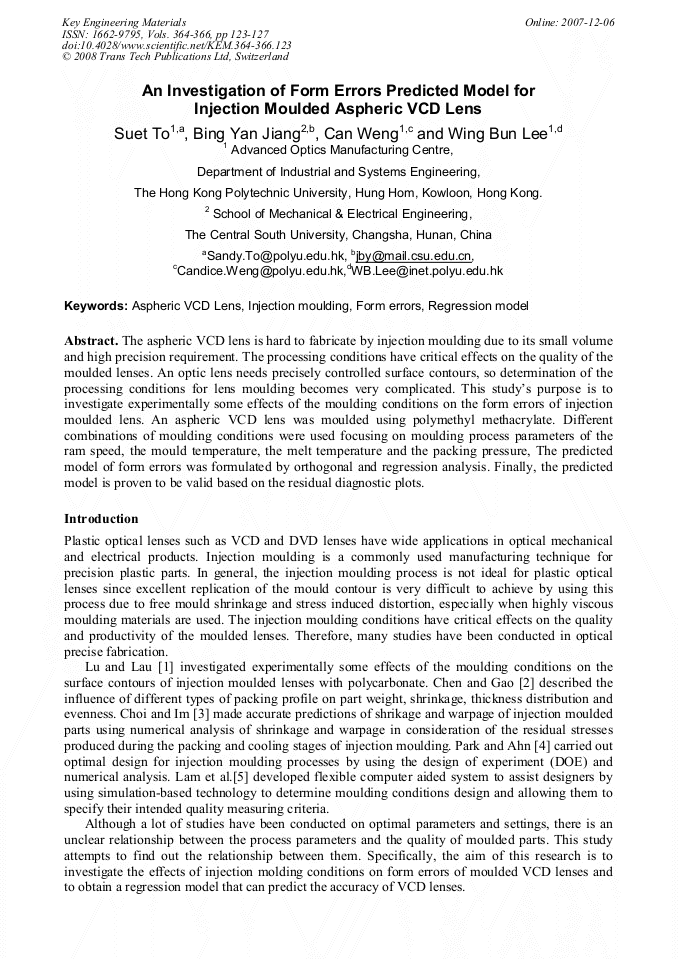

Article Preview

The aspheric VCD lens is hard to fabricate by injection moulding due to its small volume and high precision requirement. The processing conditions have critical effects on the quality of the moulded lenses. An optic lens needs precisely controlled surface contours, so determination of the processing conditions for lens moulding becomes very complicated. This study’s purpose is to investigate experimentally some effects of the moulding conditions on the form errors of injection moulded lens. An aspheric VCD lens was moulded using polymethyl methacrylate. Different combinations of moulding conditions were used focusing on moulding process parameters of the ram speed, the mould temperature, the melt temperature and the packing pressure, The predicted model of form errors was formulated by orthogonal and regression analysis. Finally, the predicted model is proven to be valid based on the residual diagnostic plots.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




S. To et al., "An Investigation of Form Errors Predicted Model for Injection Moulded Aspheric VCD Lens", Key Engineering Materials, Vols. 364-366, pp. 123-127, 2008

Online since:

December 2007




[1] Xuehong Lu and Lau Soo Khim: A Statistical experimental study of the injection molding of optical lens, Journal of material processing technology, Vol. 113(2001), pp.189-195.

DOI: 10.1016/s0924-0136(01)00606-9

[2] Xi Chen and Furong Gao: A study of packing profile on injection molded part quality, Material science and engineering A, Vol. 358 (2003), pp.205-213.

DOI: 10.1016/s0921-5093(03)00290-9

[3] Du-Soon Choi and Yong-Taek Im: Prediction of shrinkage and warpage in consideration of residual stress in simulation of injection molding, Composite structures, Vol. 47 (1999), pp.655-665.

DOI: 10.1016/s0263-8223(00)00045-3

[4] Keun Park and Jong-Ho Ahn: Design of experiment considering two-way interactions and its application to injection molding processes with numerical analysis, Journal of material processing technology, Vol. 146 (2004), pp.221-227.

DOI: 10.1016/j.jmatprotec.2003.10.020

[5] Y. C. Lam, G. A. Britton and Y. M. Deng: A computer-aided system for an optimal molding conditions design using a simulation approach, Int J Adv Manuf Technol, Vol. 22 (2003), pp.574-586.

[6] W.B. Lee, C.F. Cheung, W.M. Chiu and T.P. Leung: An investigation of residual form error compensation in the ultra-precision machining of aspheric surfaces, Journal of materials processing technology, Vol. 99 (2000), pp.129-134.

DOI: 10.1016/s0924-0136(99)00403-3
