A Framework of a Surface Generation Model in Fast Tool Servo (FTS) Machining of Optical Microstructures

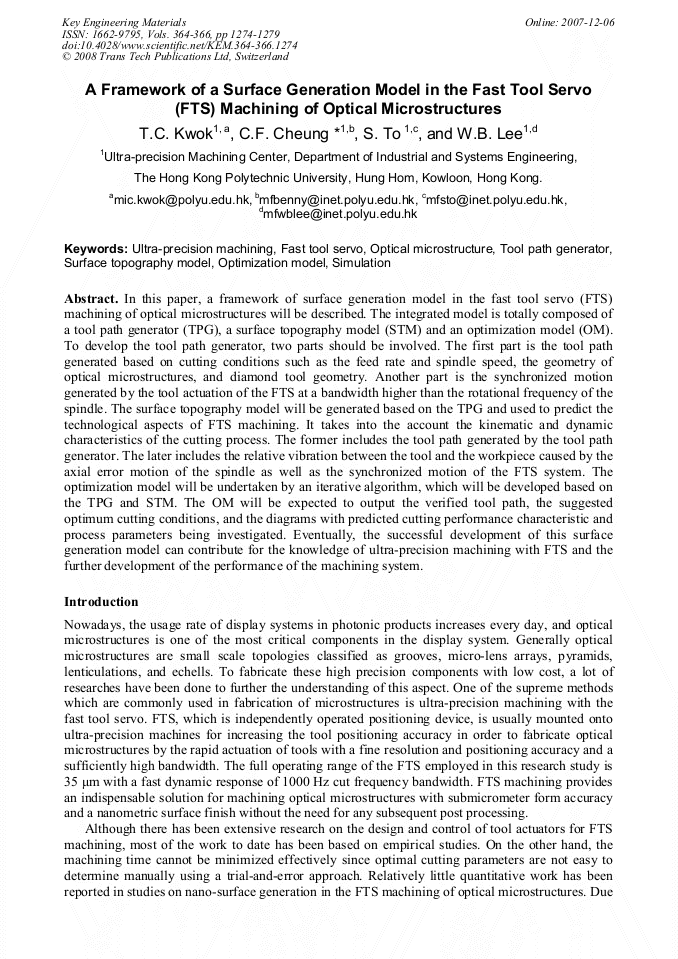

Article Preview

In this paper, a framework of surface generation model in the fast tool servo (FTS) machining of optical microstructures will be described. The integrated model is totally composed of a tool path generator (TPG), a surface topography model (STM) and an optimization model (OM). To develop the tool path generator, two parts should be involved. The first part is the tool path generated based on cutting conditions such as the feed rate and spindle speed, the geometry of optical microstructures, and diamond tool geometry. Another part is the synchronized motion generated by the tool actuation of the FTS at a bandwidth higher than the rotational frequency of the spindle. The surface topography model will be generated based on the TPG and used to predict the technological aspects of FTS machining. It takes into the account the kinematic and dynamic characteristics of the cutting process. The former includes the tool path generated by the tool path generator. The later includes the relative vibration between the tool and the workpiece caused by the axial error motion of the spindle as well as the synchronized motion of the FTS system. The optimization model will be undertaken by an iterative algorithm, which will be developed based on the TPG and STM. The OM will be expected to output the verified tool path, the suggested optimum cutting conditions, and the diagrams with predicted cutting performance characteristic and process parameters being investigated. Eventually, the successful development of this surface generation model can contribute for the knowledge of ultra-precision machining with FTS and the further development of the performance of the machining system.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




T. C. Kwok et al., "A Framework of a Surface Generation Model in Fast Tool Servo (FTS) Machining of Optical Microstructures", Key Engineering Materials, Vols. 364-366, pp. 1274-1279, 2008

Online since:

December 2007




[1] Gao, W., Araki, T., Kiyono, S., Okazaki, Y. and Yamanaka, M. Precision Nano-fabrication and Evaluation of a Large Area Sinusoidal Grid Surface for a Surface Encoder, Precision Engineering, Vo. 27, pp.289-298 (2003).

DOI: https://doi.org/10.1016/s0141-6359(03)00028-x

[2] Takasu, S., Masuda, M. And Nishiguchi, T. Influence of Study Vibration with Small Amplitude Upon Surface Roughness in Diamond Machining, Annals of the CIRP, Vol. 34, No. 1,P. 462(1985).

DOI: https://doi.org/10.1016/s0007-8506(07)61812-5

[3] Slocum, A.H. Precision Machine Design, Prentice-Hall International Editions (1992).

[4] Cheung, C.F. Modelling and Simulation of Nano-surface Generation in Ultra-precision Machining, PhD. thesis, The Hong Kong Polytechnic University, Hong Kong (2000).

[5] Cheung, C.F. and Lee, W.B. Modelling and Simulation of Surface Topography in Ultraprecision Diamond Turning, Proceedings of The Institute of Mechanical Engineers, Part B, Journal of Engineering Manufacture, Vol. 214, No. B6, pp.463-480 (2000).

DOI: https://doi.org/10.1243/0954405001517775

[6] Cheung, C.F. and Lee, W.B. Characterization of Nano-surface Generation in Single-Point Diamond Turning, International Journal of Machine Tools and Manufacture, Vol. 41, No. 6, pp.851-875 (2001).

DOI: https://doi.org/10.1016/s0890-6955(00)00102-4

[7] Cheung, C.F. and Lee, W.B. An Investigation of Cutting Dynamics in Single Point Diamond Turning, JSME International Journal-Series C: Mechanical Systems, Machine Elements and Manufacturing, Vol. 43, No. 1, pp.116-126 (2000).

DOI: https://doi.org/10.1299/jsmec.43.116

[8] Cheung, C.F. and Lee, W.B. Prediction of the Effect of Tool Interference on Surface Generation in Single-Point Diamond Turning, International Journal of Advanced Manufacturing Technology, Vol. 19, No. 4, pp.245-252 (2002).

DOI: https://doi.org/10.1007/s001700200030
