The Design of an Atmospheric Pressure Plasma Torch Used for Polishing Ultra-Smooth Surfaces

Abstract:

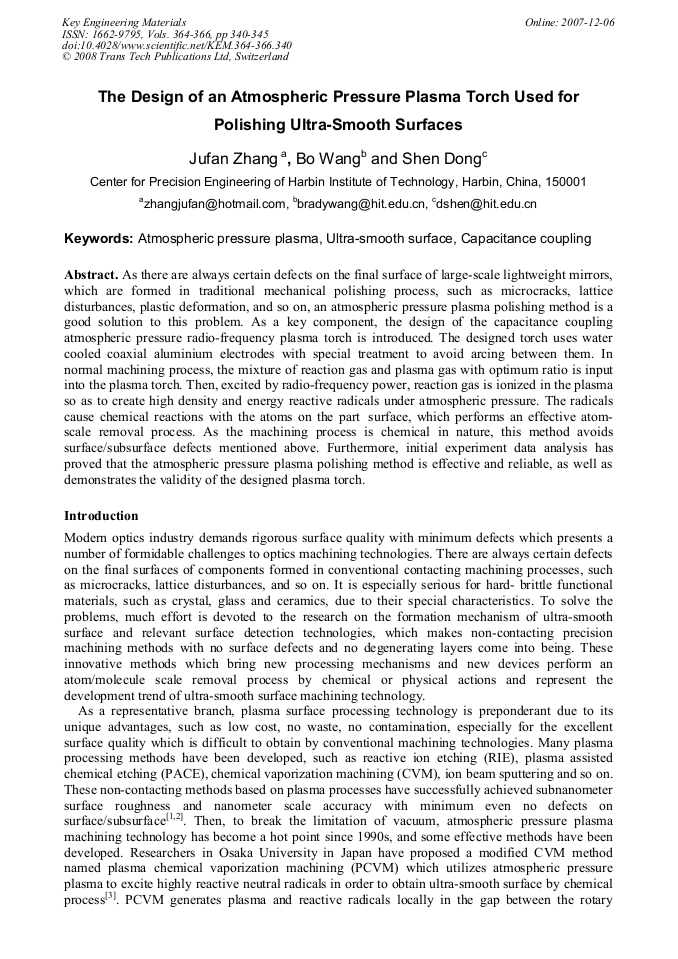

Article Preview

As there are always certain defects on the final surface of large-scale lightweight mirrors, which are formed in traditional mechanical polishing process, such as microcracks, lattice disturbances, plastic deformation, and so on, an atmospheric pressure plasma polishing method is a good solution to this problem. As a key component, the design of the capacitance coupling atmospheric pressure radio-frequency plasma torch is introduced. The designed torch uses water cooled coaxial aluminium electrodes with special treatment to avoid arcing between them. In normal machining process, the mixture of reaction gas and plasma gas with optimum ratio is input into the plasma torch. Then, excited by radio-frequency power, reaction gas is ionized in the plasma so as to create high density and energy reactive radicals under atmospheric pressure. The radicals cause chemical reactions with the atoms on the part surface, which performs an effective atomscale removal process. As the machining process is chemical in nature, this method avoids surface/subsurface defects mentioned above. Furthermore, initial experiment data analysis has proved that the atmospheric pressure plasma polishing method is effective and reliable, as well as demonstrates the validity of the designed plasma torch.

Info:

Periodical:

Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO

Pages:

340-345

Citation:

J. F. Zhang et al., "The Design of an Atmospheric Pressure Plasma Torch Used for Polishing Ultra-Smooth Surfaces", Key Engineering Materials, Vols. 364-366, pp. 340-345, 2008

Online since:

December 2007

Export:

Price:

$38.00

[1] S. D. Jacobs. International Innovations in Optical Finishing. Current Developments in Lens Design and Optical Engineering V, edited by Pantazis Z. Mouroulis, Warren J. Smith, R. Barry.

DOI: https://doi.org/10.1117/12.557274

[1] Johnson, Proc. of SPIE Vol. 5523.

[2] D. B. Graves. Plasma Processing. IEEE TRANSACTIONS ON PLASMA SCIENCE. VOL. 22, NO. 1, FEBRUARY (1994).

[3] Y. Verma,. Chang A. K, . Berrett J.W. Creation of perfect surfaces. Journal of Crystal Growth. 2005, 275: 39-50.

[4] J. W. Carr. Atmospheric Pressure Plasma Processing for Damage-Free Optics and Surfaces. Engineering Research Development and Technology, (1999).

[5] C. Fanara, Paul Shore, John R. Nicholl, Nicholas Lyford, Phil Sommer, Peter Fiske. A New Reactive Atom Plasma Technology (RAPT) for Precision Machining: the Etching of ULE Optical Surfaces. Optomechanical Technologies for Astronomy, edited by Eli Atad-Ettedgui, J. Antebi, Lemke D., Proc. of SPIE Vol. 6273, 62730A, (2006).

DOI: https://doi.org/10.1117/12.673080

[6] L. P. Wang, X. F. Wang, B,Y. Tang, K.Y. Gan and X.Y. Peng. High duty, long lifetime, cathodic arc plasma source. Rev. Sci. Instrum. 2003, 74(6): 2983-2986.

DOI: https://doi.org/10.1063/1.1573746

[7] W. M. Manheimer. The plasma physics of processing discharges, submitted to Trans. on Plasma Sci., (1993).

[8] K. Yikan, Dong Huiru. Analytical Chemistry Manual (Ⅲ): Spectral Analysis. Chemical Industry Press, (1998).

[9] J. A. Dean. Analytical Chemistry Handbook, translated by Chang Wenbao, Science Press, China, (2003).

[10] Information on http: /physics. nist. gov.
