Microfluidic Parallel Form Mixer Utilizing Chaotic Electric Field

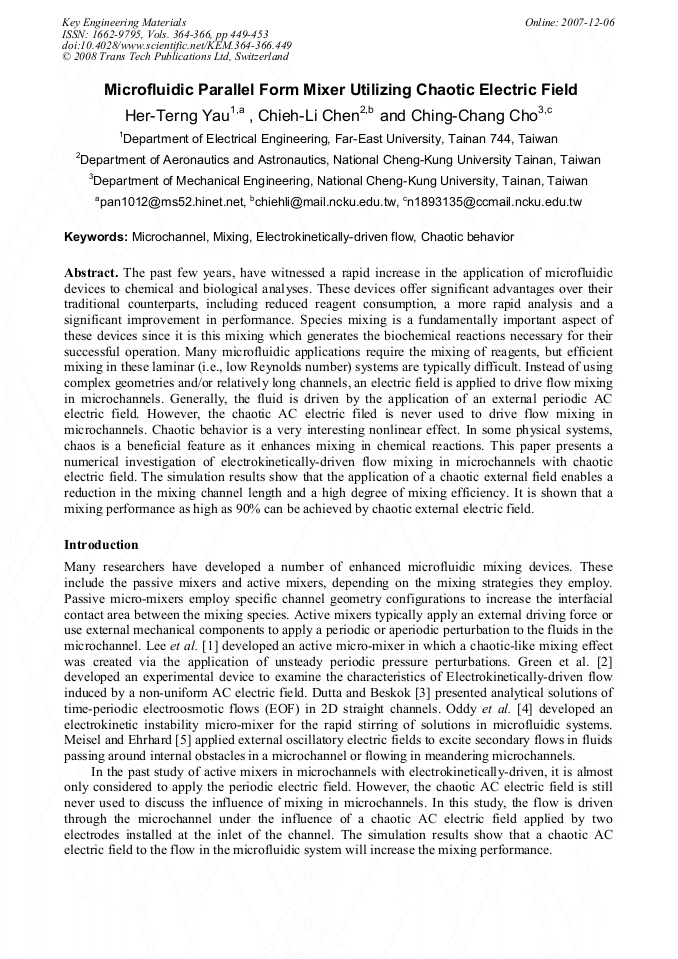

Article Preview

The past few years, have witnessed a rapid increase in the application of microfluidic devices to chemical and biological analyses. These devices offer significant advantages over their traditional counterparts, including reduced reagent consumption, a more rapid analysis and a significant improvement in performance. Species mixing is a fundamentally important aspect of these devices since it is this mixing which generates the biochemical reactions necessary for their successful operation. Many microfluidic applications require the mixing of reagents, but efficient mixing in these laminar (i.e., low Reynolds number) systems are typically difficult. Instead of using complex geometries and/or relatively long channels, an electric field is applied to drive flow mixing in microchannels. Generally, the fluid is driven by the application of an external periodic AC electric field. However, the chaotic AC electric filed is never used to drive flow mixing in microchannels. Chaotic behavior is a very interesting nonlinear effect. In some physical systems, chaos is a beneficial feature as it enhances mixing in chemical reactions. This paper presents a numerical investigation of electrokinetically-driven flow mixing in microchannels with chaotic electric field. The simulation results show that the application of a chaotic external field enables a reduction in the mixing channel length and a high degree of mixing efficiency. It is shown that a mixing performance as high as 90% can be achieved by chaotic external electric field.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




H. T. Yau et al., "Microfluidic Parallel Form Mixer Utilizing Chaotic Electric Field", Key Engineering Materials, Vols. 364-366, pp. 449-453, 2008

Online since:

December 2007




[1] Y.K. Lee, J. Deval, P. Tabeling, and C.M. Ho: Chaotic mixing in electrokinetically and pressure driven micro flows, Proc. 14th IEEE Workshop on MEMS (Interlaken, Switzerland) (2001), p.483.

DOI: https://doi.org/10.1109/memsys.2001.906584

[2] N.G. Green, A. Ramos, A. Gonzalez, H. Morgan, and A. Castellanos: Fluid flow induced by nonuniform ac electric fields in electrolytes on microelectrodes. Ⅰ. experimental measurements, Phys. Rev. E. Vol. 61 (2000), p.4011.

DOI: https://doi.org/10.1103/physreve.61.4011

[3] P. Dutta, and A. Beskok: Analytical solution of time periodic electroosmotic flows: Analogies to Stokes' second problem, Anal. Chem. Vol. 73 (2001), p.5097.

DOI: https://doi.org/10.1021/ac015546y

[4] M.H. Oddy, J.G. Santiago, and J.C. Mikkelsen: Electrokinetic instability micromixing, Anal. Chem. Vol. 73 (2001), p.5822.

DOI: https://doi.org/10.1021/ac0155411

[5] I. Meisel, and P. Ehrhard: Electrically-excited(electroosmotic) flows in microchannels for mixing applications, European Journal of Mechanics B/Fluids Vol. 25 (2006), p.491.

DOI: https://doi.org/10.1016/j.euromechflu.2005.12.002

[6] R. J. Yang, L.M. Fu, and Y.C. Lin: Electroosmotic flow in microchannels, J. Colloids Interface sci. Vol. 239 (2001), p.98.

[7] C.C. Chang and R.J. Yang: Computational analysis of electrickinetically driven flow mixing in microchannels with patterned blocks, J. Micromech. Microeng. Vol. 14 (2004), p.550.

[8] H.T. Yau: Design of adaptive sliding mode controller for chaos synchronization with uncertainties, Chaos Solitons & Fractals Vol. 22 (2004), p.341.

DOI: https://doi.org/10.1016/j.chaos.2004.02.004

[9] D. Erickson, and D. Li: Influence of surface heterogeneity on electrokinetically driven microfluidic mixing, Langmuir Vol. 18 (2002), p.1883.

DOI: https://doi.org/10.1021/la015646z
