Study on Micro-Feature of Backlight Module for Micro Injection Molding Technology

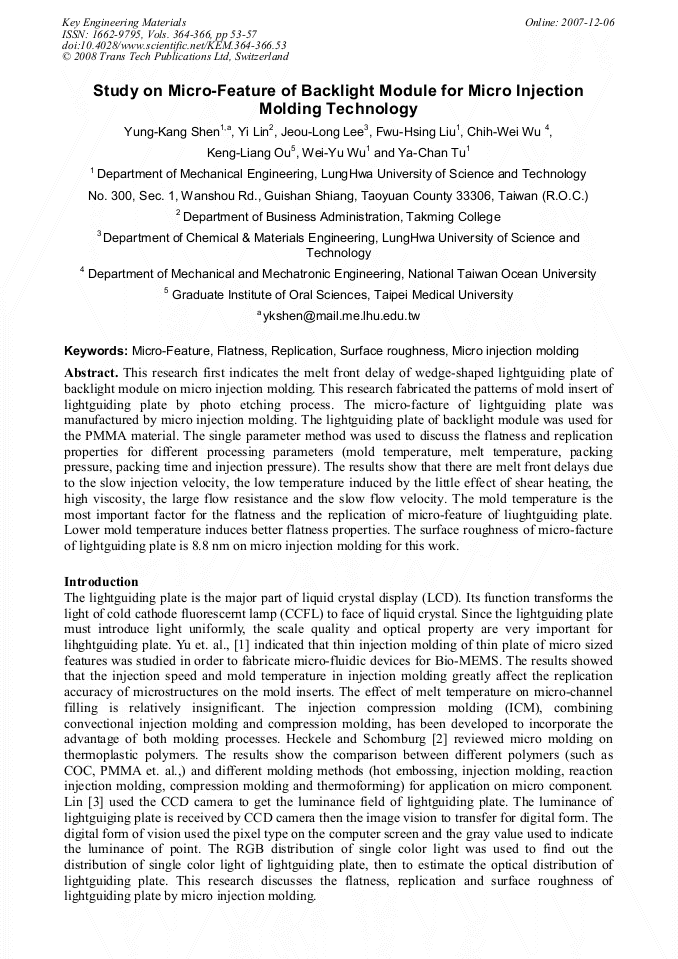

Article Preview

This research first indicates the melt front delay of wedge-shaped lightguiding plate of backlight module on micro injection molding. This research fabricated the patterns of mold insert of lightguiding plate by photo etching process. The micro-facture of lightguiding plate was manufactured by micro injection molding. The lightguiding plate of backlight module was used for the PMMA material. The single parameter method was used to discuss the flatness and replication properties for different processing parameters (mold temperature, melt temperature, packing pressure, packing time and injection pressure). The results show that there are melt front delays due to the slow injection velocity, the low temperature induced by the little effect of shear heating, the high viscosity, the large flow resistance and the slow flow velocity. The mold temperature is the most important factor for the flatness and the replication of micro-feature of liughtguiding plate. Lower mold temperature induces better flatness properties. The surface roughness of micro-facture of lightguiding plate is 8.8 nm on micro injection molding for this work.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




Y. K. Shen et al., "Study on Micro-Feature of Backlight Module for Micro Injection Molding Technology", Key Engineering Materials, Vols. 364-366, pp. 53-57, 2008

Online since:

December 2007




[1] L. Yu, C.G. Koh, L.J. Lee, K.W. Koelling, M.J. Madou: Poly. Eng. Sci., Vol. 45, No. 5 (2002), p.871.

[2] M. Heckele, W.K. Schmburg: J. Micromech. Microeng., Vol. 1, No. 14 (2004), p. R1.

[3] H.S. Lin: J. Auto. Tech., Vol. 1, No. 4 (2002), p.28.
