Design of Protective Coatings for Glass Lens Molding

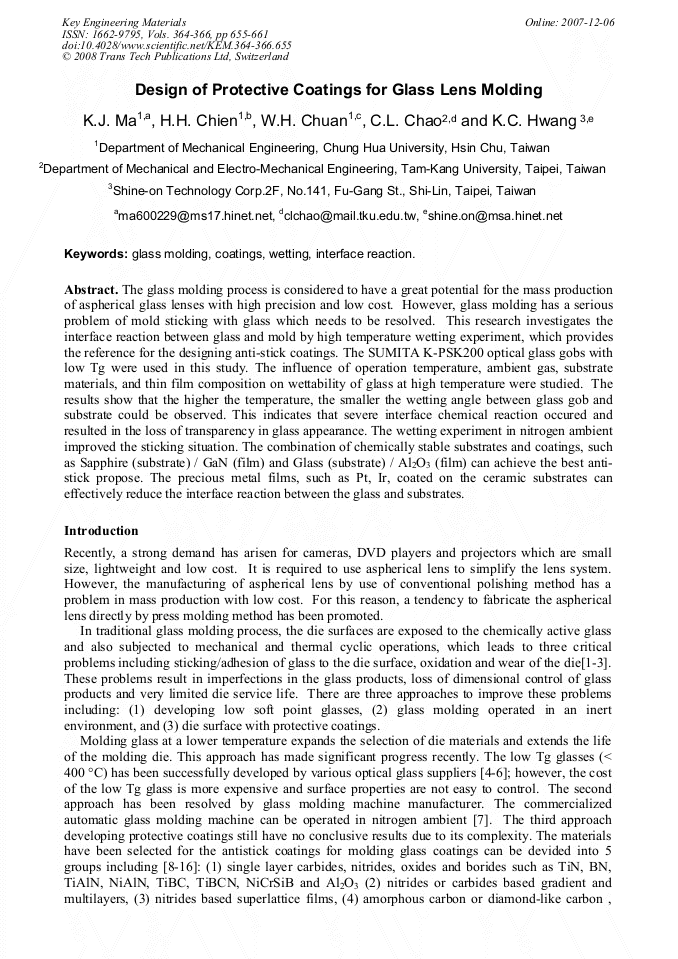

Article Preview

The glass molding process is considered to have a great potential for the mass production of aspherical glass lenses with high precision and low cost. However, glass molding has a serious problem of mold sticking with glass which needs to be resolved. This research investigates the interface reaction between glass and mold by high temperature wetting experiment, which provides the reference for the designing anti-stick coatings. The SUMITA K-PSK200 optical glass gobs with low Tg were used in this study. The influence of operation temperature, ambient gas, substrate materials, and thin film composition on wettability of glass at high temperature were studied. The results show that the higher the temperature, the smaller the wetting angle between glass gob and substrate could be observed. This indicates that severe interface chemical reaction occured and resulted in the loss of transparency in glass appearance. The wetting experiment in nitrogen ambient improved the sticking situation. The combination of chemically stable substrates and coatings, such as Sapphire (substrate) / GaN (film) and Glass (substrate) / Al2O3 (film) can achieve the best antistick propose. The precious metal films, such as Pt, Ir, coated on the ceramic substrates can effectively reduce the interface reaction between the glass and substrates.



Key Engineering Materials (Volumes 364-366)

Edited by:

Guo Fan JIN, Wing Bun LEE, Chi Fai CHEUNG and Suet TO




K. J. Ma et al., "Design of Protective Coatings for Glass Lens Molding", Key Engineering Materials, Vols. 364-366, pp. 655-661, 2008

Online since:

December 2007




[1] US Patent 4606750, Mold for direct press molding of optical glass element, Matsushita Electric Industrial Co., Ltd, Aug. 19, (1986).

[2] US patent 5217516, Method of making optical glass article, Sumitomo Electric Industries, Ltd., Jun. 8, (1993).

[3] Brand, J., Gadow, R., Killinger, A., Application of Diamond-like Carbon Coatings on Steel Tools in the Production of Precision Glass Components, Surface and Coatings Technology, Elsevier, 180 -181, P. 213-217, (2004).

DOI: 10.1016/j.surfcoat.2003.10.138

[4] http: /www. schott. com/optics_devices/english/products/materials_for_molding. html.

[5] http: /www. oharacorp. com.

[6] http: /www. sumita-opt. co. jp/en/optical. htm.

[7] http: /www. toshiba-machine. co. jp/english/product/high/contents/molding. html.

[8] US patent 5026415, Mold with hydrogenated amorphous carbon film for molding an optical element, Canon Kabushiki Kaisha, Jun. 25, (1991).

[9] Zhong, D., Mateeva, E., Dahan, I., Moore, J.J., Mustoe, G.G.W., Ohno, T., Disam, J., Thiel, S., Wettability of NiAl, Ni-Al-N, Ti-B-C, and Ti-B-C-N Films by Glass at High Temperatures, Surface and Coatings Technology, Elsevier, 133-134, P. 8-14, (2000).

DOI: 10.1016/s0257-8972(00)00877-x

[10] Nishiyama Satoshi, Takahashi Eiji, Iwamoto Yasuo, Ebe Akinori, Kuratani Naoto, Ogata Kiyoshi, Boron Nitride Hard Coatings by Ion Beam and Vapor Deposition, Thin Solid Films, Elsevier, 281-282, P. 327-330, (1996).

DOI: 10.1016/0040-6090(96)08658-0

[11] Hock, M., Schaffer, E., Doll, W., Kleer, G., Composite Coating Materials for the Moulding of Diffractive and Refractive Optical Components of Inorganic Glasses, Surface and Coatings Technology, Elsevier, 163-164, P. 689-694, (2003).

DOI: 10.1016/s0257-8972(02)00658-8

[12] Lupton David F., Merker Jürgen, Fischer Bernd, Völkl Rainer, Platinum Materials for the Glass Industry, 24th International Percious Metals Conference, Williamsburg, Virginia, USA, JUNE 11-14, (2000).

[13] US patent 4685948, Mold for Press-molding Glass Optical Elements and a Molding Method Using the Same, Matsushita Electric Industrial Co., Ltd., Aug. 11, (1987).

[14] US patent 5171348, Die for press-molding optical element, Matsushita Electric Industrial Co., Ltd., Dec. 15, (1992).

[15] US patent 4948627, Process for producing glass molds, Hoya Corporation, Aug. 14, (1990).

[16] US patent 5876478, Metal Mold for Glass Forming, Nippon Steel Corporation, Mar. 2, (1999).
