Application of Adaptive Mesh and ALE Method in Simulation of Extrusion of Aluminum Alloys

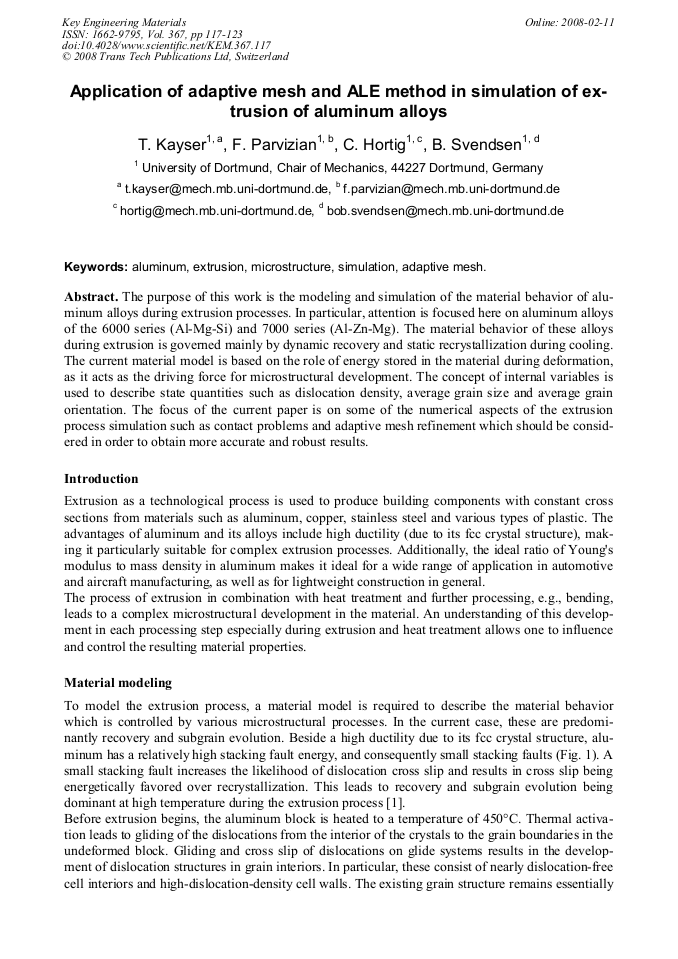

Article Preview

The purpose of this work is the modeling and simulation of the material behavior of aluminum alloys during extrusion processes. In particular, attention is focused here on aluminum alloys of the 6000 series (Al-Mg-Si) and 7000 series (Al-Zn-Mg). The material behavior of these alloys during extrusion is governed mainly by dynamic recovery and static recrystallization during cooling. The current material model is based on the role of energy stored in the material during deformation, as it acts as the driving force for microstructural development. The concept of internal variables is used to describe state quantities such as dislocation density, average grain size and average grain orientation. The focus of the current paper is on some of the numerical aspects of the extrusion process simulation such as contact problems and adaptive mesh refinement which should be considered in order to obtain more accurate and robust results.



Edited by:

Luca Tomesani and Lorenzo Donati




T. Kayser et al., "Application of Adaptive Mesh and ALE Method in Simulation of Extrusion of Aluminum Alloys", Key Engineering Materials, Vol. 367, pp. 117-123, 2008

Online since:

February 2008




[1] M. Bauser, G. Sauer and K. Siegert: Strangpressen, Aluminium-Verlag, Düsseldorf, 2nd Edition, (2001).

[2] H. -J. Bargel and G. Schulze: Werkstoffkunde, Springer-Verlag, Berlin, 7th Edition, (2000).

[3] Saiyi Li , Olaf Engler and Paul Van Houtte: Plastic anisotropy and texture evolution during tensile testing of extruded aluminium profiles, Modelling Simul. Mater. Sci. Eng. 13, (2005).


[4] C. M. Sellars and Q. Zhu: Microstructural modelling of aluminium alloys during thermomechanical processing, Materials Science and Engineering A 280, no. 1, (2000).


[5] T. Furu, H. R. Shercliff, G. J. Baxter, and C. M. Sellars. The influence of transient deformation conditions on recrystallization during thermomechanical processing of an Al-1% Mg alloy. Acta Materialia 47, (1999), pp.2377-2389.


[6] T. Sheppard: Prediction of structure during shaped extrusion and subsequent static recrystallisation during the solution soaking operation, Journal of Materials Processing Technology, (2006).


[7] G. J. Baxter, T. Furu, Q. Zhu, J. A. Whiteman and C. M. Sellars: The influence of transient strain rate deformation conditions on the deformed microstructure of aluminium alloy Al-1% Mg. Acta Metallurgica, 47, (1999), pp.2367-2376.
