Recent Developments in the Manufacture of Complex Components by Influencing the Material Flow during Extrusion

Abstract:

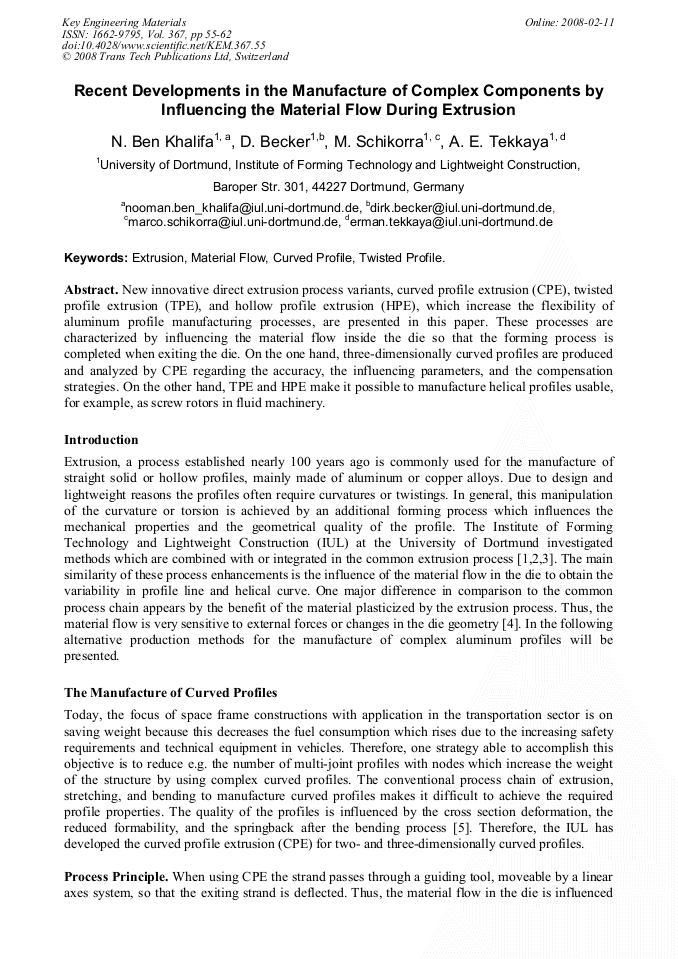

Article Preview

New innovative direct extrusion process variants, curved profile extrusion (CPE), twisted profile extrusion (TPE), and hollow profile extrusion (HPE), which increase the flexibility of aluminum profile manufacturing processes, are presented in this paper. These processes are characterized by influencing the material flow inside the die so that the forming process is completed when exiting the die. On the one hand, three-dimensionally curved profiles are produced and analyzed by CPE regarding the accuracy, the influencing parameters, and the compensation strategies. On the other hand, TPE and HPE make it possible to manufacture helical profiles usable, for example, as screw rotors in fluid machinery.

Info:

Periodical:

Edited by:

Luca Tomesani and Lorenzo Donati

Pages:

55-62

Citation:

N. Ben Khalifa et al., "Recent Developments in the Manufacture of Complex Components by Influencing the Material Flow during Extrusion", Key Engineering Materials, Vol. 367, pp. 55-62, 2008

Online since:

February 2008

Export:

Price:

$38.00

[1] D. Arendes: Direct Manufacturing of Rounded Aluminium Profiles During Extrusion. PhD Thesis (in German) University of Dortmund, Shaker Verlag, Aachen, (1999).

[2] A. Klaus: Optimization of Process Accuracy and Reliability of Rounding During Extrusion. PhD Thesis (in German) University of Dortmund, Shaker Verlag, Aachen, (2002).

[3] N. Ben Khalifa, M. Schikorra, A. Erman Tekkaya: Erste Untersuchungen zur Herstellung von Schraubenrotoren mittels innovativer Umformverfahren, Aluminium, International Journal for Industry, Research and Applications, Volume 83, Issue 4 (2007).

[4] S. Andreoli: New instruments fort the optimization of aluminium extrusion dies, Aluminium 2000- 6 th world conference, Florence, Italy (2007), Proceedings on CD.

[5] F. Vollertsen, A. Sprenger, J. Kraus, H. Arnet: Extrusion, channel, and profile bending: a review, Journal of Materials Processing Technology, Volume 87 (1999), pp.1-27.

DOI: https://doi.org/10.1016/s0924-0136(98)00339-2

[6] K. Kauder, M. Janicki: The Influence of Clearence Flows on the working Behaviour of Compressors. Schraubenmaschinen 2006, VDI-Berichte No. 1932, Düsseldorf, (2006).

[7] G. Schreiter: Hydrostatisches Strangpressen. In: Strangpressen. Editors: M. Bauser, G. Sauer, K. Siegert. 2nd Edition, Aluminium-Verlag, Düsseldorf, (2001).

[8] N. N: www. hydro. com, special spiral extrusion, utilizing a tailored alloy.

[9] K. Kondo, K. Ohga: Precision cold Die Forging of a Ring Gear by divided Flow Method. Int. Mach. Tools Manufact., Vol. 35, No. 8, pp.1005-1013, (1995).

DOI: https://doi.org/10.1016/0890-6955(95)90405-b

[10] T. Keppler-Ott: Optimierung des Querfließpressens schrägverzahnter Stirnräder. PhD Thesis (in German), University Stuttgart, DGM Informationsgesellschaft Verlag, (2002).

[11] M. Kleiner: Method and device for the production of curved workpieces. European Patent EP0706843 B1, (1999).
