Effect of Cr Additives on the Microstructures and Properties of Laser Cladded Ni3Si

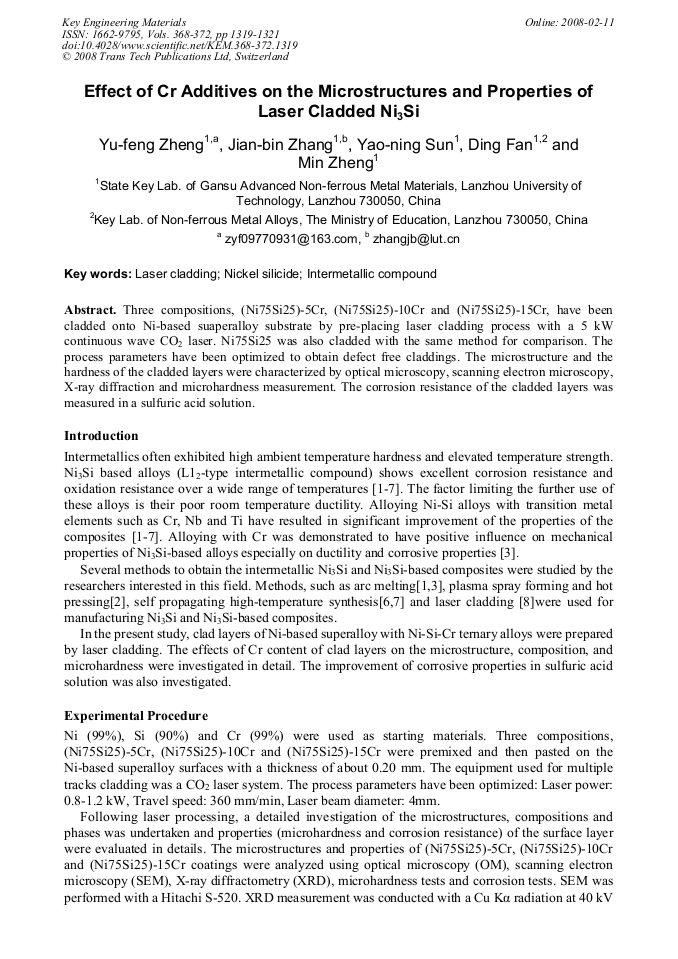

Article Preview

Three compositions, (Ni75Si25)-5Cr, (Ni75Si25)-10Cr and (Ni75Si25)-15Cr, have been cladded onto Ni-based suaperalloy substrate by pre-placing laser cladding process with a 5 kW continuous wave CO2 laser. Ni75Si25 was also cladded with the same method for comparison. The process parameters have been optimized to obtain defect free claddings. The microstructure and the hardness of the cladded layers were characterized by optical microscopy, scanning electron microscopy, X-ray diffraction and microhardness measurement. The corrosion resistance of the cladded layers was measured in a sulfuric acid solution.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




Y. F. Zheng et al., "Effect of Cr Additives on the Microstructures and Properties of Laser Cladded Ni3Si", Key Engineering Materials, Vols. 368-372, pp. 1319-1321, 2008

Online since:

February 2008




[1] T. Takasugi: Intermetallics Vol. 8 [5-6] (2000), p.575.

[2] S. Van Dyck, L. Delaey, L. Froyen, et al.: Intermetallics Vol. 5.

[2] (1997), p.137.

[3] T. Takasugi, H. Kawai, Y. Kaneno: Mater. Sci. Eng. Vol. A329-331 (2002), p.446.

[4] A. Taub and C. L. Briant: Metall. Trans. Vol. 20A.

[10] (1989), p. (2025).

[5] W. Takahashi, H. Anada and Y. Shida: Sumitomo Metals, Vol. 44.

[5] (1992), p.89.

[6] J.S.C. Jang, C.J. Ou, and C.Y. Cheng: Mater. Sci. Eng. Vol. A329-331 (2002), p.455.

[7] Q. Bi, P. La, W. Liu, et al.: Metall. Trans. Vol. 36A.

[5] (2005), p.1301.

[8] D. Fan, J.B. Zhang, Y.N. Sun, et al.: Key Eng. Mater. Vol. 336-338 (2007), p.1380. Fig. 4 Vickers hardness of clad layer Fig. 5 Weight loss of clad layer during 96 h immersion in 1M H2SO4 solution.
