Low-Temperature Sintering of Ba5(Nb1-xVx)4O15 Ceramics with H3BO3

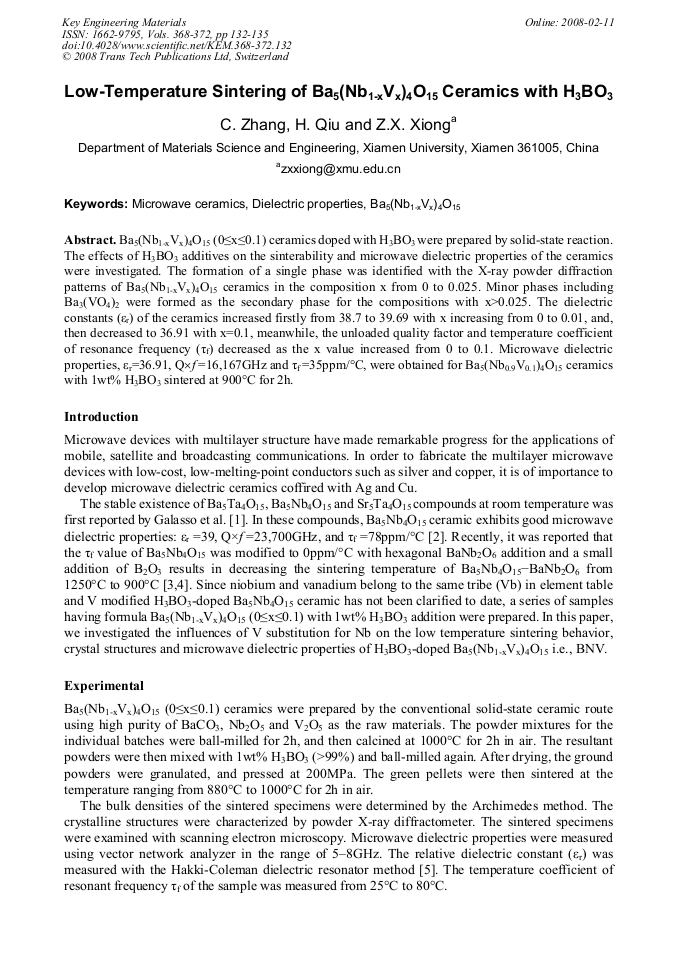

Article Preview

Ba5(Nb1-xVx)4O15 (0≤x≤0.1) ceramics doped with H3BO3 were prepared by solid-state reaction. The effects of H3BO3 additives on the sinterability and microwave dielectric properties of the ceramics were investigated. The formation of a single phase was identified with the X-ray powder diffraction patterns of Ba5(Nb1-xVx)4O15 ceramics in the composition x from 0 to 0.025. Minor phases including Ba3(VO4)2 were formed as the secondary phase for the compositions with x>0.025. The dielectric constants (εr) of the ceramics increased firstly from 38.7 to 39.69 with x increasing from 0 to 0.01, and, then decreased to 36.91 with x=0.1, meanwhile, the unloaded quality factor and temperature coefficient of resonance frequency (τf) decreased as the x value increased from 0 to 0.1. Microwave dielectric properties, εr=36.91, Q×f =16,167GHz and τf =35ppm/°C, were obtained for Ba5(Nb0.9V0.1)4O15 ceramics with 1wt% H3BO3 sintered at 900°C for 2h.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




C. Zhang et al., "Low-Temperature Sintering of Ba5(Nb1-xVx)4O15 Ceramics with H3BO3", Key Engineering Materials, Vols. 368-372, pp. 132-135, 2008

Online since:

February 2008




[1] F. Galasso and L. Katz: Acta Cryst. Vol. 14 (1961), p.647.

[2] I.N. Jawahar, M.T. Sebastian and P. Mohananb: Mat. Sci. Eng. B-Solid. Vol. 106 (2004), p.207.

[3] D.W. Kim, J.R. Kim, S.H. Yoon and K.S. Hong: J. Am. Cream. Soc. Vol. 85 (2002), p.2759.

[4] D.W. Kim, K.S. Hong, C.S. Yoon and C.K. Kim: J. Eur. Ceram. Soc. Vol. 23 (2003), p.2597.

[5] B.W. Hakki and P.D. Coleman: IEEE Trans: Microwave Theor. Tech. Vol. 8 (1960), p.402.

[6] R. Umemuraa, H. Ogawa, A. Yokoi, et al.: J. Alloy. Compd. Vol. 424 (2006), p.388.

[7] A. E. Paladino: J. Am. Ceram. Soc. Vol. 54 (1971), p.168.
