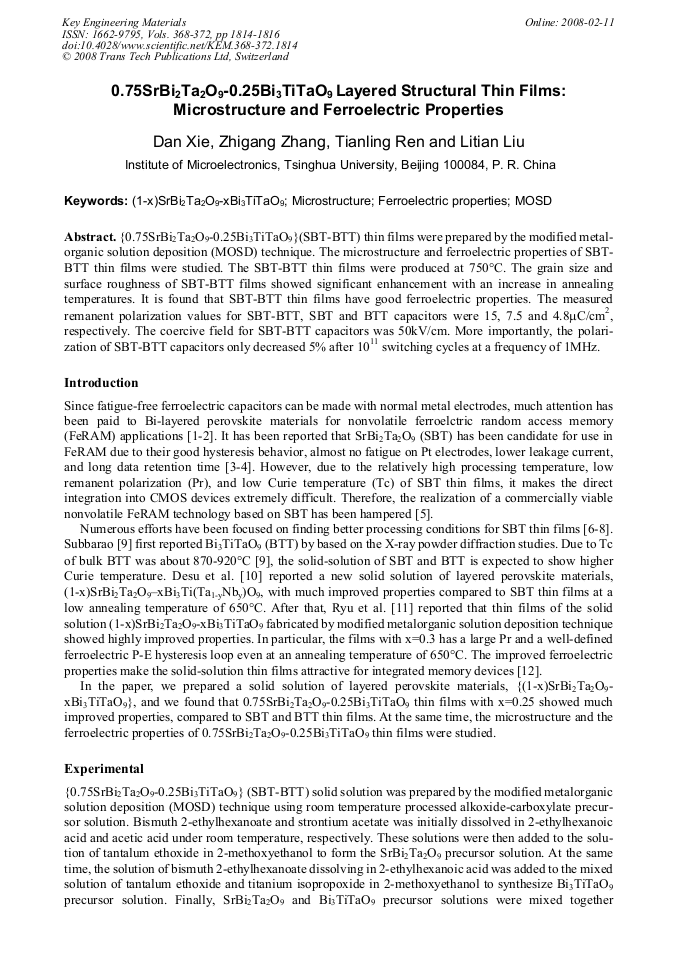

0.75SrBi2Ta2O9-0.25Bi3TiTaO9 Layered Structural Thin Films: Microstructure and Ferroelectric Properties


Article Preview

{0.75SrBi2Ta2O9-0.25Bi3TiTaO9}(SBT-BTT) thin films were prepared by the modified metalorganic solution deposition (MOSD) technique. The microstructure and ferroelectric properties of SBTBTT thin films were studied. The SBT-BTT thin films were produced at 750°C. The grain size and surface roughness of SBT-BTT films showed significant enhancement with an increase in annealing temperatures. It is found that SBT-BTT thin films have good ferroelectric properties. The measured remanent polarization values for SBT-BTT, SBT and BTT capacitors were 15, 7.5 and 4.8μC/cm2, respectively. The coercive field for SBT-BTT capacitors was 50kV/cm. More importantly, the polarization of SBT-BTT capacitors only decreased 5% after 1011 switching cycles at a frequency of 1MHz.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




D. Xie et al., "0.75SrBi2Ta2O9-0.25Bi3TiTaO9 Layered Structural Thin Films: Microstructure and Ferroelectric Properties", Key Engineering Materials, Vols. 368-372, pp. 1814-1816, 2008

Online since:

February 2008




Fetching data from Crossref.
This may take some time to load.
