Synthesis, Microstructure and Magnetic Properties of Nanocrystalline Ni-Zn Ferrite by a Modified Wet Chemical Method

Abstract:

Article Preview

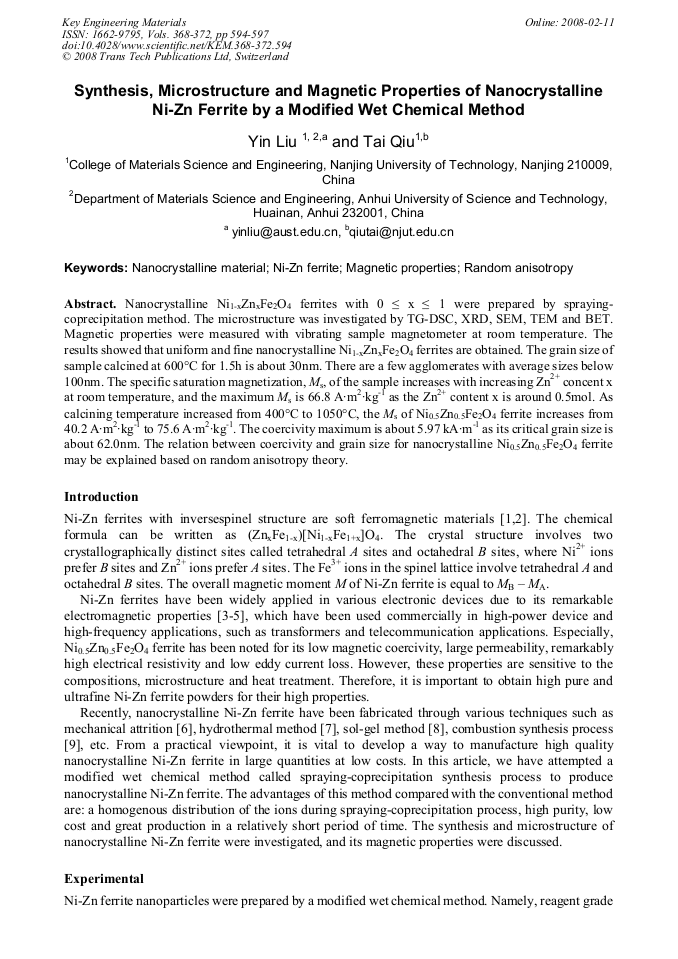

Nanocrystalline Ni1-xZnxFe2O4 ferrites with 0 ≤ x ≤ 1 were prepared by sprayingcoprecipitation method. The microstructure was investigated by TG-DSC, XRD, SEM, TEM and BET. Magnetic properties were measured with vibrating sample magnetometer at room temperature. The results showed that uniform and fine nanocrystalline Ni1-xZnxFe2O4 ferrites are obtained. The grain size of sample calcined at 600°C for 1.5h is about 30nm. There are a few agglomerates with average sizes below 100nm. The specific saturation magnetization, Ms, of the sample increases with increasing Zn2+ concent x at room temperature, and the maximum Ms is 66.8 A·m2·kg-1 as the Zn2+ content x is around 0.5mol. As calcining temperature increased from 400°C to 1050°C, the Ms of Ni0.5Zn0.5Fe2O4 ferrite increases from 40.2 A·m2·kg-1 to 75.6 A·m2·kg-1. The coercivity maximum is about 5.97 kA·m-1 as its critical grain size is about 62.0nm. The relation between coercivity and grain size for nanocrystalline Ni0.5Zn0.5Fe2O4 ferrite may be explained based on random anisotropy theory.

Info:

Periodical:

Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong

Pages:

594-597

Citation:

Y. Liu and T. Qiu, "Synthesis, Microstructure and Magnetic Properties of Nanocrystalline Ni-Zn Ferrite by a Modified Wet Chemical Method", Key Engineering Materials, Vols. 368-372, pp. 594-597, 2008

Online since:

February 2008

Authors:

Export:

Price:

$38.00

[1] B.D. Cullity: Introduction to Magnetic Materials (Addison-Wesley Reading, Mass, USA, 1972).

[2] F. Saito, T. Toyoda, T. Mori, et al.: Phys. B. Vol. 270 (1999), p.35.

[3] T. Tsutaoka, M. Ueshima, Y. Tokunaga, et al.: J. Appl. Phys. Vol. 78 (1995), p.3983.

[4] C.J. Hsu, J.H. Jean: Mater. Chem. Phys. Vol. 78 (2002), p.323.

[5] J.E. Burke: Ceramic Fabrication Process (Wiley, New York, USA, 1958).

[6] L.M. Yu, J.C. Zhang and Y.S. Liu: J. Magn. Magn. Mater. Vol. 288 (2005), p.54.

[7] C.K. Kim, J.H. Lee, S. Katoh, et al.: Mater. Res. Bullet. Vol. 36 (2001), p.2241.

[8] C.R. Gong: J. Sol-Gel. Sci. Tech. Vol. 35 (2005), p.77.

[9] A.C.F.M. Costa: J. Magn. Magn. Mater. Vol. 256 (2003), p.174.

[10] E.P. Wohlfarth: Ferromagnetic Materials (North-Holland, Amsterdam, 1980).

[11] Z.G. Zhou: Ferrite Magnetic Materials, First Edition (Science Press, Beijing, China 1981).

[12] D.J. Sellmyer, Y. Liu, D. Shindo: Handbook of Advanced Magnetic Materials (Tsinghua University Press, Beijing, 2005).

[13] G. Herzer: Script. Matall. Mater. Vol. 33 (1995), p.1741.

[14] K. Suzuki, G. Herzer, J.M. Cadogan: J. Magn. Magn. Mater. Vol. 177-181 (1998), p.949.
