Dielectric Behavior of (1-X)BaTiO3-XCaCu2.94Mn0.06Ti4O12 Composite Ceramics

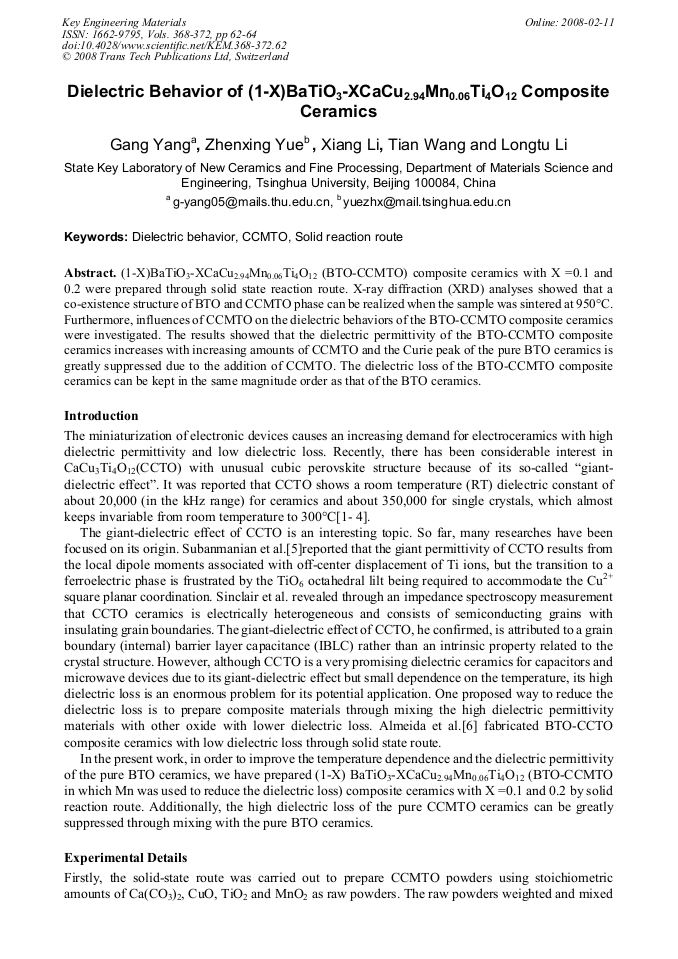

Article Preview

(1-X)BaTiO3-XCaCu2.94Mn0.06Ti4O12 (BTO-CCMTO) composite ceramics with X =0.1 and 0.2 were prepared through solid state reaction route. X-ray diffraction (XRD) analyses showed that a co-existence structure of BTO and CCMTO phase can be realized when the sample was sintered at 950°C. Furthermore, influences of CCMTO on the dielectric behaviors of the BTO-CCMTO composite ceramics were investigated. The results showed that the dielectric permittivity of the BTO-CCMTO composite ceramics increases with increasing amounts of CCMTO and the Curie peak of the pure BTO ceramics is greatly suppressed due to the addition of CCMTO. The dielectric loss of the BTO-CCMTO composite ceramics can be kept in the same magnitude order as that of the BTO ceramics.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




G. Yang et al., "Dielectric Behavior of (1-X)BaTiO3-XCaCu2.94Mn0.06Ti4O12 Composite Ceramics", Key Engineering Materials, Vols. 368-372, pp. 62-64, 2008

Online since:

February 2008




[1] S.F. Shao, J.L. Zhang, W.L. Zhong and C.L. Wang: J. Appl. Phys. Vol. 99(1992), pp.084106-1.

[2] B. Shri Prakash and K.B.R. Varma: Physica B Vol. 382(2006), p.312.

[3] S.M. Ke, H.T. Huang and H.Q. Fan: Appl. Phys. Lett. Vol. 89(2006), pp.182904-1.

[4] D. C. Sinclair, T. B. Adams, F.D. Morrison, et al.: Appl. Phys. Lett. Vol. 80(2002), p.2153.

[5] M.A. Subramanian, L. Dong, N. Duan, et al.: J. Solid State Chem. Vol. 151(2000), p.323.

[6] P.B.A. Fechine, A.F.L. Almeida, F.N.A. Freire, et al.: Mater. Chem. Phys. Vol. 96(2006), p.402.

[7] D. Hennings and H. Schreinemacher: Mater. Res. Bull. Vol. 12(1977).
