Synthesis of Y2BaCuO5 Nanopowder by Co-Precipitation under Ultrasonic Irradiation

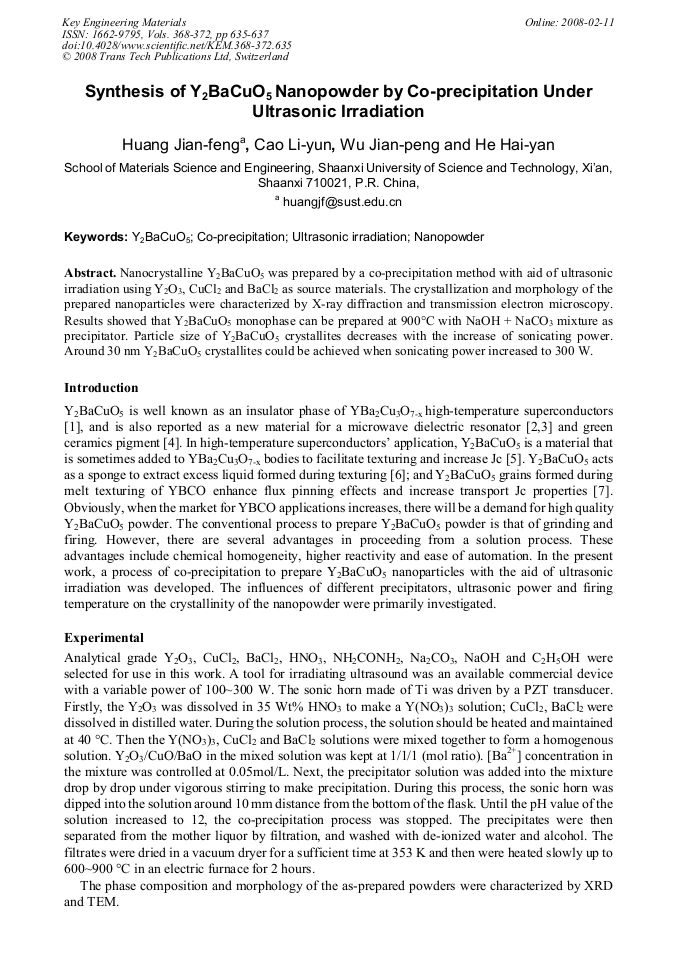

Article Preview

Nanocrystalline Y2BaCuO5 was prepared by a co-precipitation method with aid of ultrasonic irradiation using Y2O3, CuCl2 and BaCl2 as source materials. The crystallization and morphology of the prepared nanoparticles were characterized by X-ray diffraction and transmission electron microscopy. Results showed that Y2BaCuO5 monophase can be prepared at 900°C with NaOH + NaCO3 mixture as precipitator. Particle size of Y2BaCuO5 crystallites decreases with the increase of sonicating power. Around 30 nm Y2BaCuO5 crystallites could be achieved when sonicating power increased to 300 W.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




J. F. Huang et al., "Synthesis of Y2BaCuO5 Nanopowder by Co-Precipitation under Ultrasonic Irradiation", Key Engineering Materials, Vols. 368-372, pp. 635-637, 2008

Online since:

February 2008




[1] J.A. Alarco, A. Ilyushechkin, T. Yamashita, et al.: Mat. Sci. Eng. B. Vol. 64 (1999), p.130.

[2] H. Ogawa, M. Watanabe, H. Ohsato and C. Humphreys: In Proceeding of the Eleventh IEEE International Symposium on Application of Ferroelectrics (1998), p.517.

[3] A. Kana, H. Ogawa, H. Ohsato and S. Ishihara: J. Eur. Ceram. Soc. Vol. 21 (2001), p.2593.

[4] F. Fernandez, C. Colon, A. Duran, et al.: J. Alloy Compd. Vol. 275-277 (1998), p.750.

[5] S. Takebayashi, S.I. Yoo and M. Murakami: Physica C. Vol. 383 (2003), p.465.

[6] L. Zhou: Physica C. Vol. 337 (2000), p.121.

[7] Y. Zhao, S.H. Han, H. Zhang and C.H. Choi: Physica C. Vol. 337 (2000), p.106.

[8] Y Kang, et al.: Mater. Lett. Vol. 42 (2000).
