Synthesis of Ti3Si0.4Al0.8C1.8 Solid Solution

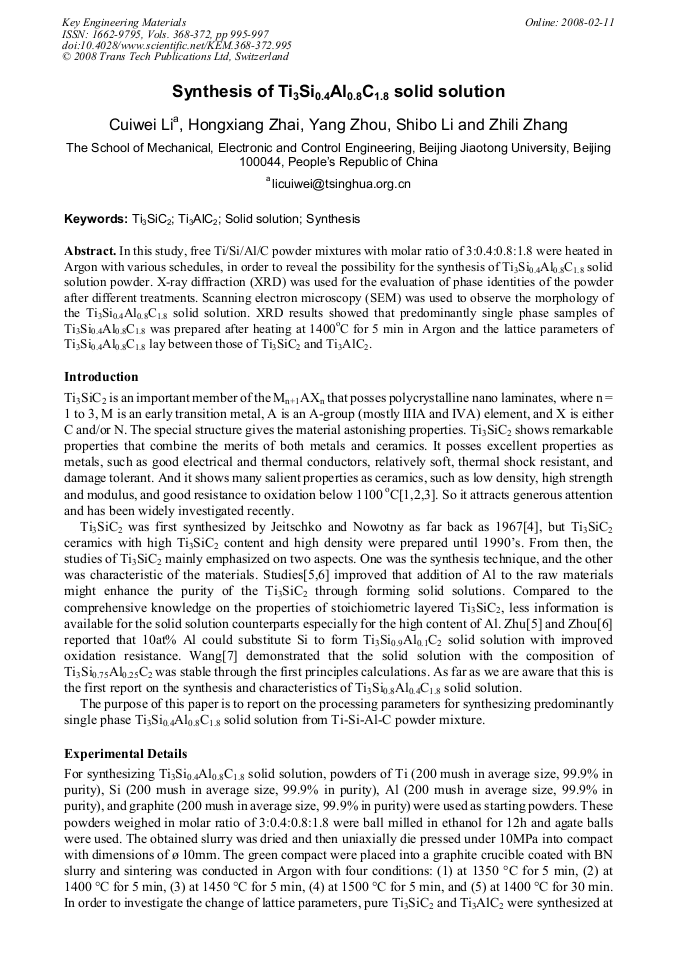

Article Preview

In this study, free Ti/Si/Al/C powder mixtures with molar ratio of 3:0.4:0.8:1.8 were heated in Argon with various schedules, in order to reveal the possibility for the synthesis of Ti3Si0.4Al0.8C1.8 solid solution powder. X-ray diffraction (XRD) was used for the evaluation of phase identities of the powder after different treatments. Scanning electron microscopy (SEM) was used to observe the morphology of the Ti3Si0.4Al0.8C1.8 solid solution. XRD results showed that predominantly single phase samples of Ti3Si0.4Al0.8C1.8 was prepared after heating at 1400oC for 5 min in Argon and the lattice parameters of Ti3Si0.4Al0.8C1.8 lay between those of Ti3SiC2 and Ti3AlC2.



Key Engineering Materials (Volumes 368-372)

Edited by:

Wei Pan and Jianghong Gong




C. W. Li et al., "Synthesis of Ti3Si0.4Al0.8C1.8 Solid Solution", Key Engineering Materials, Vols. 368-372, pp. 995-997, 2008

Online since:

February 2008




[1] M.W. Barsoum: Prog. Solid State Chem. Vol. 28 (2000), P. 201.

[2] M.W. Barsoum and T. El-Raghy: Met. Mater. Trans. Vol. 30A (1999), P. 363.

[3] M.W. Barsoum, L. Farber and T. El-Raghy: Met. Mater. Trans. Vol. 30A (1999), P. 1727.

[4] W. Jeitschko and H. Nowotny: Monatsh. Chem. Vol. 98 (1967), P. (1953).

[5] J. Y. Wang and Y. C. Zhou: J. Phys.: Condens. Matter. Vol. 15 (2003), P. 5959.

[6] B.C. Mei, X.W. Xu, J.Q. Zhu and J. Liu: Rare Metal Mater. Eng. Vol. 34 (2005), P. 895.

[7] H.B. Zhang, Y.C. Zhou , Y.W. Bao and M.S. Li: Acta Materialia. Vol. 52 (2004), P. 3631.

[8] N.V. Tzenov and M.W. Barsoum: J. Am. Ceram. Soc. Vol. 83 (2000), P. 825. Fig. 3 SEM graph of Ti3Si0. 4Al0. 8C1. 8 solid solution.

Fetching data from Crossref.
This may take some time to load.
