RIBAD Deposition of TiN on Magnesium Alloy

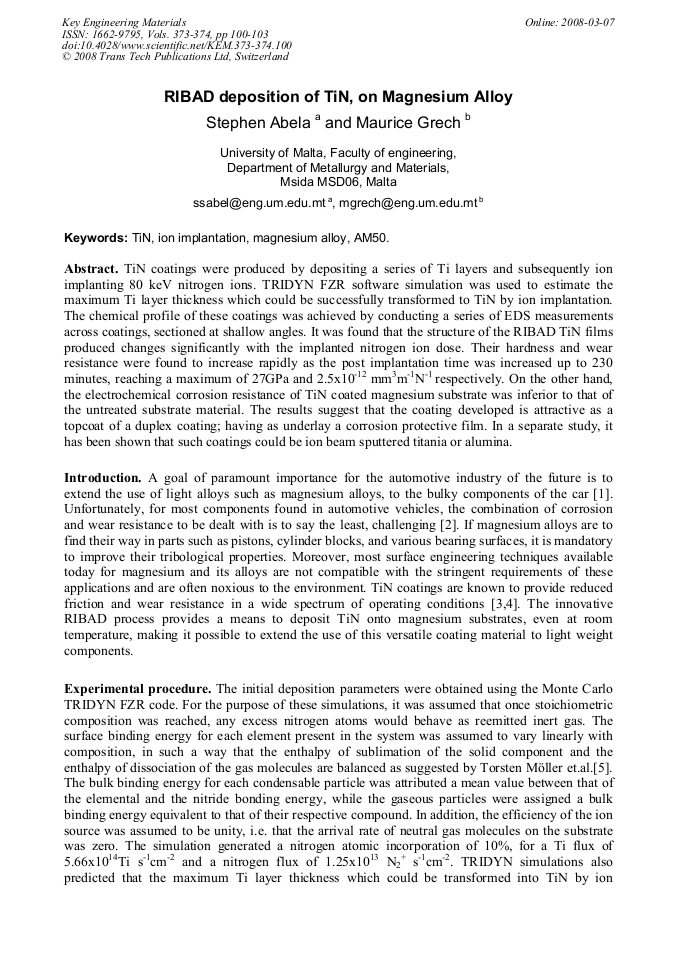

Article Preview

TiN coatings were produced by depositing a series of Ti layers and subsequently ion implanting 80 keV nitrogen ions. TRIDYN FZR software simulation was used to estimate the maximum Ti layer thickness which could be successfully transformed to TiN by ion implantation. The chemical profile of these coatings was achieved by conducting a series of EDS measurements across coatings, sectioned at shallow angles. It was found that the structure of the RIBAD TiN films produced changes significantly with the implanted nitrogen ion dose. Their hardness and wear resistance were found to increase rapidly as the post implantation time was increased up to 230 minutes, reaching a maximum of 27GPa and 2.5x10-12 mm3m-1N-1 respectively. On the other hand, the electrochemical corrosion resistance of TiN coated magnesium substrate was inferior to that of the untreated substrate material. The results suggest that the coating developed is attractive as a topcoat of a duplex coating; having as underlay a corrosion protective film. In a separate study, it has been shown that such coatings could be ion beam sputtered titania or alumina.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




S. Abela and M. Grech, "RIBAD Deposition of TiN on Magnesium Alloy", Key Engineering Materials, Vols. 373-374, pp. 100-103, 2008

Online since:

March 2008




[1] H. Friedrich and S. Schumann, Mineral Processing and Extractive Metallurgy: IMM Transactions section C, Volume 111, number 2, August 2002, pages 65-71(7).

[2] Jan Ivar Skar, Malte Isacsson, and Zheng Tan: Magnesium Automotive and End User Seminar (EFM), Aalen, Germany, September 22. -23, (2005).

[3] Arnold H. Deutchman, and Robert J. Partyka: Proceedings from the 1st International Surface Engineering Congress and the 13 th IFHTSE Congress, 7-10 October 2002, Columbus Ohio.

[4] Fu Yongquin, Zhu Xiaodong, Xu Kewei, He Jiawen: Part 1', Surface Modification Technologies volume X. Published by the American society of materials. ISBN: 1861250223, (1997).

[5] Torsten Möuller, Karl-Heinz Heinig, and Wolfhard Möller: Journal of Applied Physics, Letter 81, 2002, page 3049. Publisde online arXiv: Cond-mat / 0208137v1 7Aug (2002).

[6] B.L. Taiwari and J. J. Bommarito, Magnesium technology 002, TMS, 2002, pages 269-275.

[7] X. Wang, Y. Chen, G. Yang, X. Liu, and S. Zou: Journal of Applied Physics A, Material Science and processing, Volume 56, No6, 1993, pages 561-565.

[8] Jochen M. Schneider, William D. Sproul, Andrey A. Voevodin, and Allan Matthews: Journal of Vacuum Science & Technology A: Vacuum, Surfaces, and Films, Volume 15, Issue 3, 1997, pages 1084-1088.

DOI: https://doi.org/10.1116/1.580434

[9] S. Fukumoto, H. Tsubakino, S. Inoue, L. Liu, M. Terasawa, and T. Mitamura, Materials Science and Engineering, Volume A263, 1999, pages 205-209.

[10] Y. Massiani, A. Medjahed, P. Gravier, I. Rebatel, and J. P. Crousier. Surface and Coating Technology, Volume 45, 1991, pages 115-120.

DOI: https://doi.org/10.1016/0257-8972(91)90213-g
