Preparation and Characterization of Ni-Al-Cr3C2 Coating

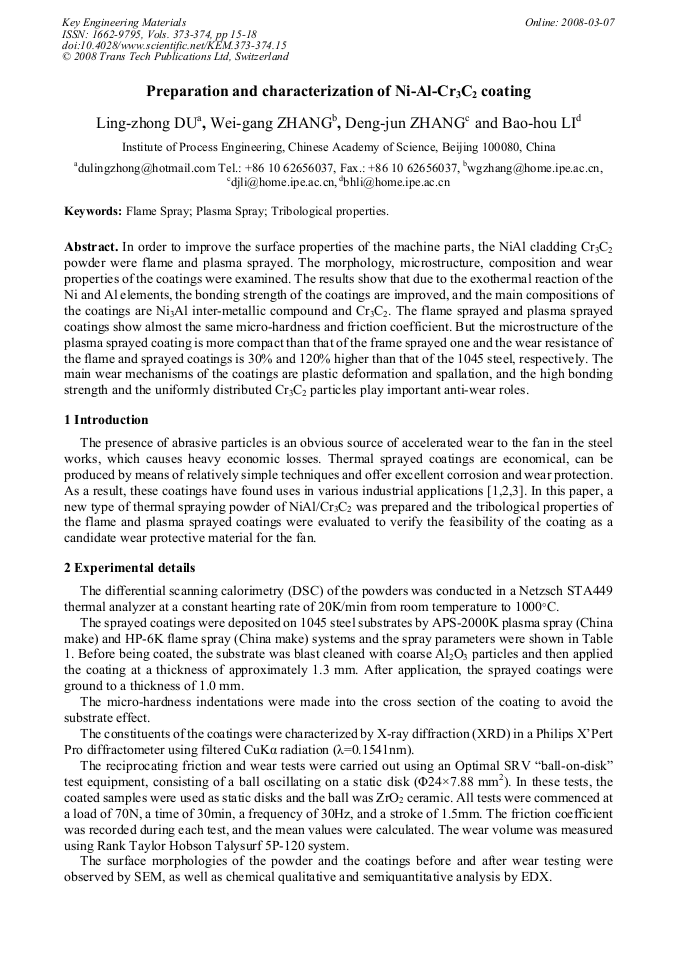

Article Preview

In order to improve the surface properties of the machine parts, the NiAl cladding Cr3C2 powder were flame and plasma sprayed. The morphology, microstructure, composition and wear properties of the coatings were examined. The results show that due to the exothermal reaction of the Ni and Al elements, the bonding strength of the coatings are improved, and the main compositions of the coatings are Ni3Al inter-metallic compound and Cr3C2. The flame sprayed and plasma sprayed coatings show almost the same micro-hardness and friction coefficient. But the microstructure of the plasma sprayed coating is more compact than that of the frame sprayed one and the wear resistance of the flame and sprayed coatings is 30% and 120% higher than that of the 1045 steel, respectively. The main wear mechanisms of the coatings are plastic deformation and spallation, and the high bonding strength and the uniformly distributed Cr3C2 particles play important anti-wear roles.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




L. Z. Du et al., "Preparation and Characterization of Ni-Al-Cr3C2 Coating", Key Engineering Materials, Vols. 373-374, pp. 15-18, 2008

Online since:

March 2008




[1] M.H. Li, Z.Y. Zhang and X.F. Sun: Surface and Coatings Technology Vol. 165 (3) (2003), p.241.

[2] Buta Singh sidhu, D. Puri and S. Prakash: Materials Science and Engineering A Vol. 368 (2004), p.149.

[3] Y. Wang, W. Chen and L. Wang: Wear Vol. 254 (2003), p.350.

[4] M.H. Enayati, Z. Sadeghian, M. Salehi and A. Saidi: Materials Science and Engineering A Vol. 375-377 (2004), p.809.

[5] Peiqing La, Mingwu Bai, Qunji Xue and Weimin Liu: Surface and Coatings Technology Vol. 113 (1999), p.44.


[6] H. P. Ng, X. K. Meng and A. H. W. Ngan: Scripta Materialia Vol. 39 (12) (1998), p.1737.

[7] C. L. Yeh and W. Y. Sung: Journal of Alloys and Compounds Vol. 384 (2004), p.181.

[8] Y. Wang and W. Chen: Surface and Coatings Technology Vol. 183 (2004), p.18.

[9] T. Sundararajan, S. Kuroda and F. Abe: Corrosion Science Vol. 47 (2005), p.1129.

[10] E. Celik, I. A. Sengil and E. Avci: Surface and Coatings Technology Vol. 97 (1997), p.355 (a) (b) (c) Fig. 6 Worn surface of the (a) flame sprayed coating (b) plasma sprayed coating (c) 1045 steel substrate.
