Preparation and Characterization of Cr-Co-P Alloy Coating Electrodeposited from Trivalent Chromium Solution

Abstract:

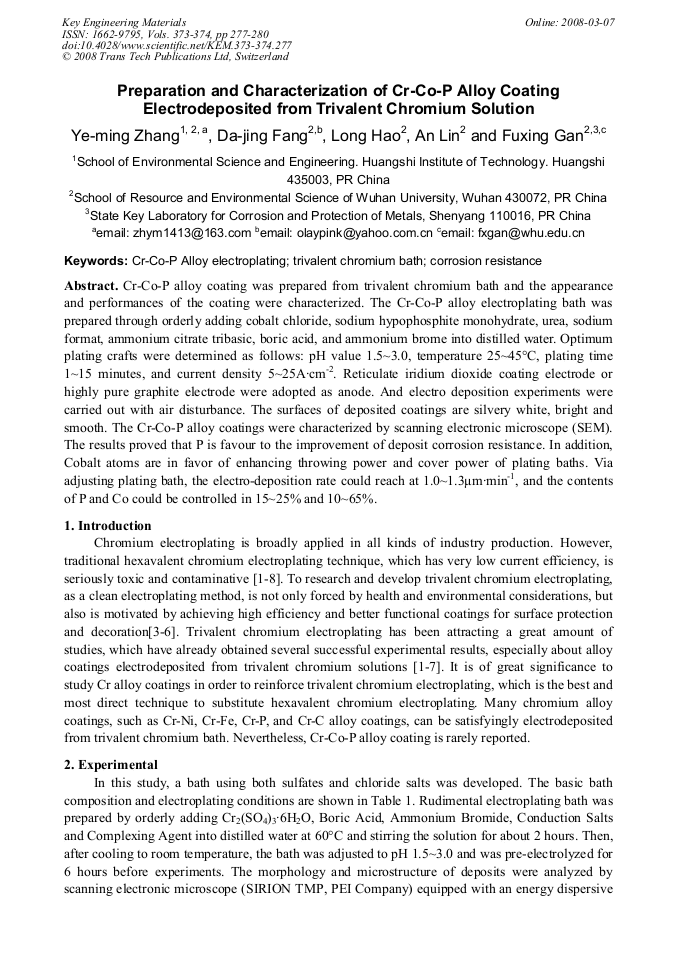

Article Preview

Cr-Co-P alloy coating was prepared from trivalent chromium bath and the appearance and performances of the coating were characterized. The Cr-Co-P alloy electroplating bath was prepared through orderly adding cobalt chloride, sodium hypophosphite monohydrate, urea, sodium format, ammonium citrate tribasic, boric acid, and ammonium brome into distilled water. Optimum plating crafts were determined as follows: pH value 1.5~3.0, temperature 25~45°C, plating time 1~15 minutes, and current density 5~25A·cm-2. Reticulate iridium dioxide coating electrode or highly pure graphite electrode were adopted as anode. And electro deposition experiments were carried out with air disturbance. The surfaces of deposited coatings are silvery white, bright and smooth. The Cr-Co-P alloy coatings were characterized by scanning electronic microscope (SEM). The results proved that P is favour to the improvement of deposit corrosion resistance. In addition, Cobalt atoms are in favor of enhancing throwing power and cover power of plating baths. Via adjusting plating bath, the electro-deposition rate could reach at 1.0~1.3μm·min-1, and the contents of P and Co could be controlled in 15~25% and 10~65%.

Info:

Periodical:

Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu

Pages:

277-280

DOI:

10.4028/www.scientific.net/KEM.373-374.277

Citation:

Y. M. Zhang et al., "Preparation and Characterization of Cr-Co-P Alloy Coating Electrodeposited from Trivalent Chromium Solution", Key Engineering Materials, Vols. 373-374, pp. 277-280, 2008

Online since:

March 2008

Export:

Price:

$35.00

[1] Baosong Li, An Lin, Xu Wu, Yeming Zhang, Fuxing Gan. Electrodeposition and characterization of Fe-Cr-P amorphous alloys from trivalent chromium sulfate electrolyte [J]. Journal of Alloys and compounds.

DOI: 10.1016/j.jallcom.2006.11.162

[2] Jamese H. Lindsay. Decorative and Hard Chromium Plating [J]. Plating and Surface Finishing, 1999; 86(11) : 40 - 42.

[3] ElSharif M, Chisholm C V. Electrodeposition of Thick Chromium Coatings from an Environmentally Acceptable Chromium (III) Glycine Complex [J]. Trans. IMF, 1999; 77(4): 139-144.

DOI: 10.1080/00202967.1999.11871269

[4] T, Long E. Electrodeposition from Trivalent Chromium Electrolytes [J]. Trans. IMF, 1998; 76(6): B83 - 85.

[5] Lansdell P, Farr J P G. The Corrosion Resistance of Chromium Electroplated from Trivalent and Hexavalent Chromium Plating Solutions [J]. Trans. IMF, 1997; 75(6): 219-223.

DOI: 10.1080/00202967.1997.11871178

[6] Donald L, Snyder. Decorative Chromium Plating [J]. Metal Finishing Guidebook, 1999; 97(1): 211.

DOI: 10.1016/s0026-0576(99)80021-x

[7] ElSharif M. Environmentally Acceptable Process from Electrodeposition of Hard Chromium(III) Electrolyte [J]. Trans. IMF, 1995; 73(1): 19-25.

DOI: 10.1080/00202967.1995.11871049

[8] El2Sharif M. Replacing Hexavalent Chromium in Electroplating. Trans. IMF, 1997; 75 (6): 143-146.

[9] Zenmi Tu, Zhelong Yang. Cathode Polarization in Trivalent Chromium Plating [J]. Plating and Surface Finishing, 1993; 79 (9): 78-82. TEL: +86 27 68775799, FAX: +86 27 68775869.
