Microstructure and Tribological Properties of Layer Deposited by Micro-Plasma Arc Welding on Worn Gear

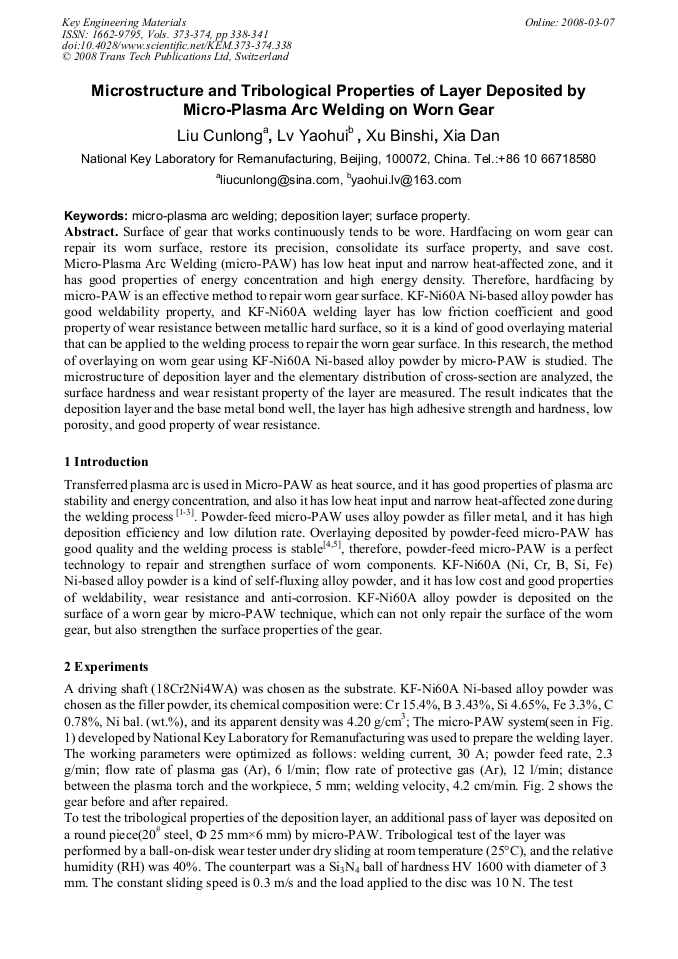

Article Preview

Surface of gear that works continuously tends to be wore. Hardfacing on worn gear can repair its worn surface, restore its precision, consolidate its surface property, and save cost. Micro-Plasma Arc Welding (micro-PAW) has low heat input and narrow heat-affected zone, and it has good properties of energy concentration and high energy density. Therefore, hardfacing by micro-PAW is an effective method to repair worn gear surface. KF-Ni60A Ni-based alloy powder has good weldability property, and KF-Ni60A welding layer has low friction coefficient and good property of wear resistance between metallic hard surface, so it is a kind of good overlaying material that can be applied to the welding process to repair the worn gear surface. In this research, the method of overlaying on worn gear using KF-Ni60A Ni-based alloy powder by micro-PAW is studied. The microstructure of deposition layer and the elementary distribution of cross-section are analyzed, the surface hardness and wear resistant property of the layer are measured. The result indicates that the deposition layer and the base metal bond well, the layer has high adhesive strength and hardness, low porosity, and good property of wear resistance.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




C. L. Liu et al., "Microstructure and Tribological Properties of Layer Deposited by Micro-Plasma Arc Welding on Worn Gear", Key Engineering Materials, Vols. 373-374, pp. 338-341, 2008

Online since:

March 2008




[1] Aiyiti. Wurikaixi, W.H. Zhao and B.H. Lu: Optimization of Process Parameters for Micro-Plasma Arc Welding-Based Rapid Prototyping. [J]Journal of Xi'an Jiaotong University. 2006, 40(5): 568-572.

DOI: https://doi.org/10.3901/jme.2006.05.192

[2] M. Yan, X.B. Zhang and W.Z. Zhu: The microstructure and wear resistance of plasma-arc remelted Ni-Base overlay. [J]Mater. Sci. Lett. 1996, 15: (2038).

[3] W. Luo and X.B. Zhang: Effect of micro-plasma arc surface remelting on the corrosion resistance of 1Cr18Ni9Ti. [J]Materials Protection. 1999, 32: 13.

[4] M. Yan and W.Z. Zhu: A new approach of surface treatment: remelting of micro-beam plasma arc. [J]Mater. Sci. Lett. 1998, 34: 222.

[5] W. Luo, J.F. Luan and M. Yan: Surface treatment of 0Cr19Ni9 stainless steel SMAW jointby plasma melting. [J]Transaction of Zhejiang University. 2002, 3(3): 272-277.

DOI: https://doi.org/10.1631/jzus.2002.0272
