Preparation of Ag Nanoparticles Colloid by Pulsed Laser Ablation in Distilled Water

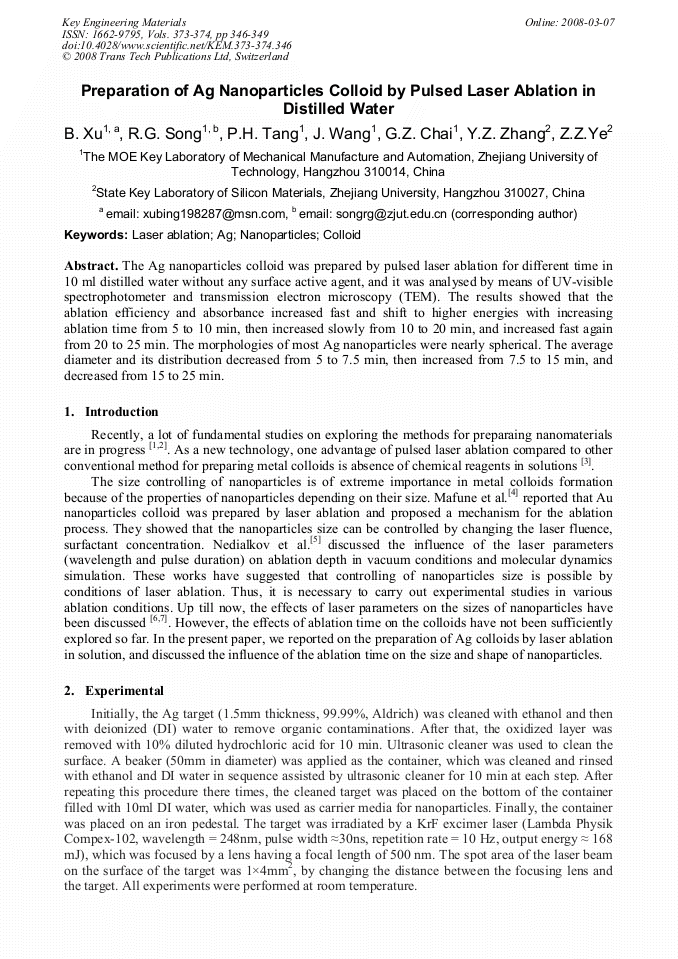

Article Preview

The Ag nanoparticles colloid was prepared by pulsed laser ablation for different time in 10 ml distilled water without any surface active agent, and it was analysed by means of UV-visible spectrophotometer and transmission electron microscopy (TEM). The results showed that the ablation efficiency and absorbance increased fast and shift to higher energies with increasing ablation time from 5 to 10 min, then increased slowly from 10 to 20 min, and increased fast again from 20 to 25 min. The morphologies of most Ag nanoparticles were nearly spherical. The average diameter and its distribution decreased from 5 to 7.5 min, then increased from 7.5 to 15 min, and decreased from 15 to 25 min.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




B. Xu et al., "Preparation of Ag Nanoparticles Colloid by Pulsed Laser Ablation in Distilled Water", Key Engineering Materials, Vols. 373-374, pp. 346-349, 2008

Online since:

March 2008




[1] J.H. Yao, W. Zhang, Ni-Coated Nano-Al2O3 Composite Coating Prepared by laser Cladding[J], Chinese J. Lasers, 2006, 33 (5): 705~708.

[2] Z.L. Ding, J.M. Zhang, F.J. Qi, et al. Synthesis of indium nanoparticles and indium nanowires(in Chinese)[J]. The Chinese Journal of Nonferrous Metals, 16(2006): 105-109.

[3] X.P. Zhu, Tsuneo Suzuki, Tadachika Nakayama, Hisayuki Suematsu, Weihua Jiang and Koichi Niihara. Underwater laser ablation approach to fabricating monodisperse metallic nanoparticles[J]. Chemical Physics Letters, 2006, 427(1-3): 127-131.

DOI: 10.1016/j.cplett.2006.05.119

[4] F. Mafune, J. Kohno, Y. Takeda, et al. Growth of Gold Clusters into Nanoparticles in a Solution Following Laser-Induced Fragmentation[J]. J. Phys. Chem. B, 106(2002): 8555-8561.

DOI: 10.1021/jp020786i

[5] N.N. Nedialkov, S.E. Imamova, P.A. Atanasov, et al. Mechanism of ultrashort laser ablation of metals: molecular dynamics simulation[J]. Applied Surface Science, 247(2005): 243-248.

DOI: 10.1016/j.apsusc.2005.01.056

[6] F. Mafune, J. Kohno, Y. Takeda, et al. Formation of gold nanoparticles by laser ablation in aqueous solution of surfactant[J]. J. Phys. Chem. B, 105(2001): 5114-5120.

DOI: 10.1021/jp0037091

[7] T. Tsuji, N. Watanabe, M. Tsuji. Laser induced morphology change of silver colloids: Formation of nano-size wires [J]. Appl. Surf. Sci, 211(2003): 189-193.

DOI: 10.1016/s0169-4332(03)00225-3

[8] T. Tsuji, K. Iryo, Y. Nishimur, et al. Preparation of metal colloids by a laser ablation technique in solution: influence of laser wavelength on the ablation efficiency (II)[J]. J. Photochem. Photobiol. A, 145(2001): 201-207.

DOI: 10.1016/s1010-6030(01)00583-4

[9] Z.Q. Chen, G.X. Wang. Colloid and Interface Chemistry (in Chinese)[M]. Beijing: Higher Education Press, (2001).

Fetching data from Crossref.
This may take some time to load.
