Plasma Transferred Arc Powder Surfacing Technology of Thrust Face

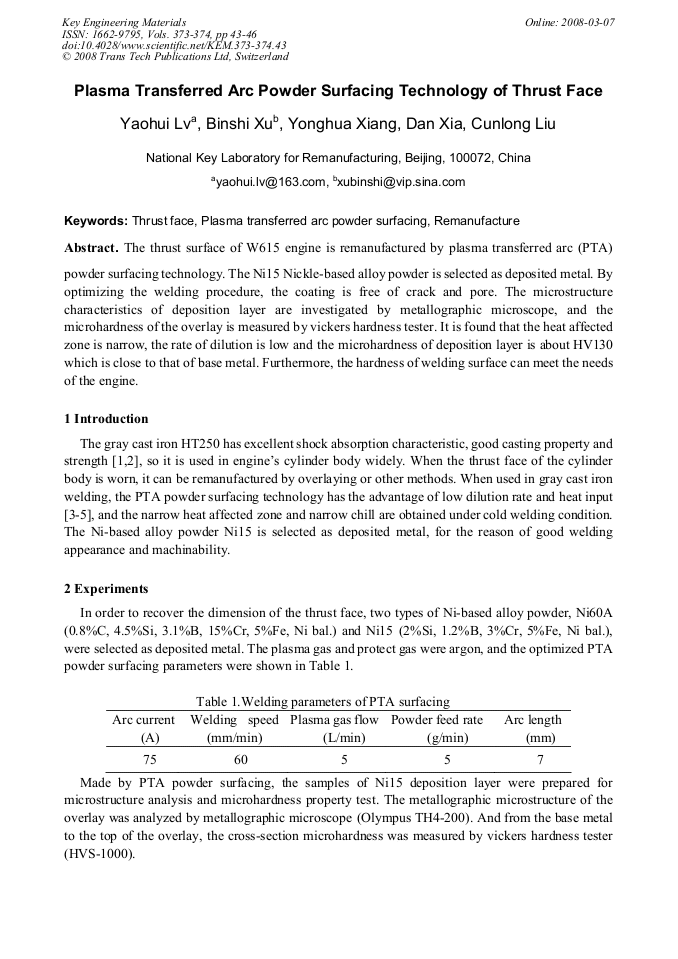

Article Preview

The thrust surface of W615 engine is remanufactured by plasma transferred arc (PTA) powder surfacing technology. The Ni15 Nickle-based alloy powder is selected as deposited metal. By optimizing the welding procedure, the coating is free of crack and pore. The microstructure characteristics of deposition layer are investigated by metallographic microscope, and the microhardness of the overlay is measured by vickers hardness tester. It is found that the heat affected zone is narrow, the rate of dilution is low and the microhardness of deposition layer is about HV130 which is close to that of base metal. Furthermore, the hardness of welding surface can meet the needs of the engine.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




Y. H. Lv et al., "Plasma Transferred Arc Powder Surfacing Technology of Thrust Face", Key Engineering Materials, Vols. 373-374, pp. 43-46, 2008

Online since:

March 2008




[1] H.W. Kong and L.P. Liu: Analyzing and discussing on Welding Technology and property of Cast Iron. Research Studies on Foundry Equipment, 2001, (10), pp.28-31.

[2] D.M. Stefanesdcu: Cast Iron. In Metal Handbook, 9th ed. ASM International, Metal Park, OH, 1988, (15), pp.168-181.

[3] H.J. Kim and Y.J. Kim: Wear and corrosion resistance of PTA weld surfaced Ni and Co base alloy layers. Surface Engineering, 1999, (6), pp.495-501.


[4] Y.J. Wang: Investigation of Plasma Spray Welding Technology and its Application in Hot Rolling Guide Plate. Surface Technology. 2005, 34(4), pp.58-61.

[5] X.F. Wang, P. Shan and X.B. Wang: Microstructure and properties of TiB2-metal ceramics coating by plasma transferred arc surfacing. Transaction of The China Welding Institution. 2005, 26(7), pp.33-36.
