Evaluation and Analysis for the Surface Morphology and Mechanism Properties of the Self-Repair Microcapsule

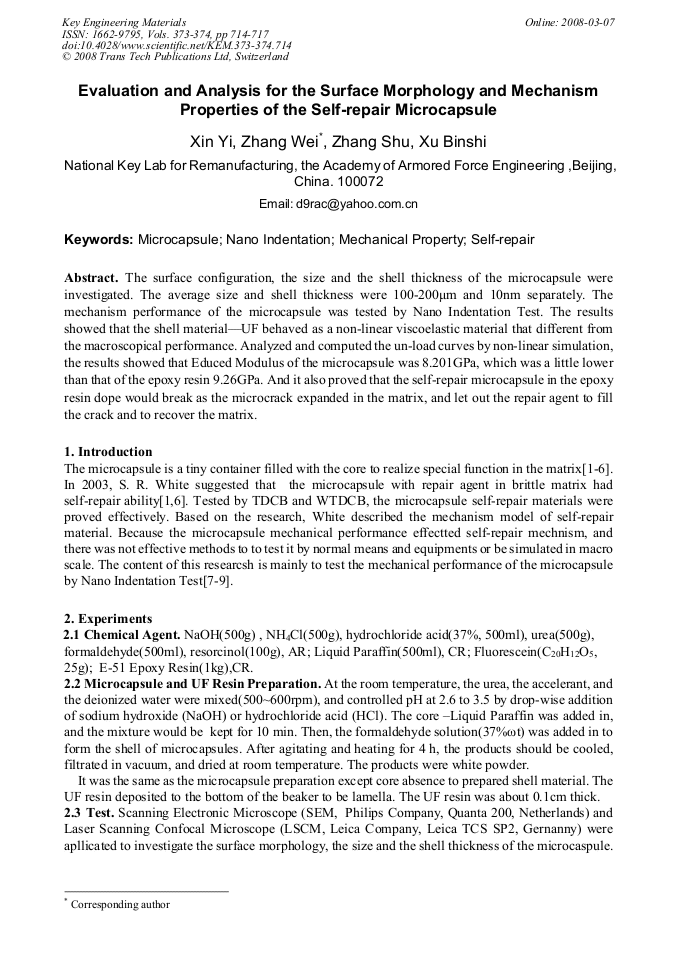

Article Preview

The surface configuration, the size and the shell thickness of the microcapsule were investigated. The average size and shell thickness were 100-200μm and 10nm separately. The mechanism performance of the microcapsule was tested by Nano Indentation Test. The results showed that the shell material—UF behaved as a non-linear viscoelastic material that different from the macroscopical performance. Analyzed and computed the un-load curves by non-linear simulation, the results showed that Educed Modulus of the microcapsule was 8.201GPa, which was a little lower than that of the epoxy resin 9.26GPa. And it also proved that the self-repair microcapsule in the epoxy resin dope would break as the microcrack expanded in the matrix, and let out the repair agent to fill the crack and to recover the matrix.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




Y. Xin et al., "Evaluation and Analysis for the Surface Morphology and Mechanism Properties of the Self-Repair Microcapsule", Key Engineering Materials, Vols. 373-374, pp. 714-717, 2008

Online since:

March 2008




[1] White S R, Sottos N R, Geubelle P H, etc.: Nature Vol. 409(2001), p.794.

[2] Dry. C M.: Composite Structures Vol. 35(1996), p.263.

[3] J Raghavan, R P Wool.: J Appl Polym Sci. Vol. 71(1999), p.775.

[4] Brown E N : Journal of Microencapsulation. Vol. 20(2003), p.719.

[5] Michael Richard Kessler: Applied Science and Manufacturing. Vol. 32(2001), p.683.

[6] Michael R K, Sottos N R, White S. R.: Composites: Part A. Vol. 34 (2003), p.743.

[7] Mehdiabadi S.: Journal of Applied Polymer Science Vol. 6(1998), p.631.

[8] Sanghvi S P.: Journal of Microencapsulation. Vol. 9(1992), p.21.

[9] Alexandridou S.: Journal of Microencapsulation. Vol. 1(2001), p.767.

[10] Dang Xudan. Fracture Mechanics Experiment research for the Microcapsule Self-repair Compound Material. Zhengzhou University. 2005 Acknowledgements The authors acknowledges the support of the National Nature science foundation No. 50775222, No. 50735006. The authors would like to thank Professor Zhu Youli for his help echnical advice and guidance. The authors gratefully acknowledge Wang Hongmei and YU Helong for testing.
