Figuration Control of Deposit in Friction Surfacing

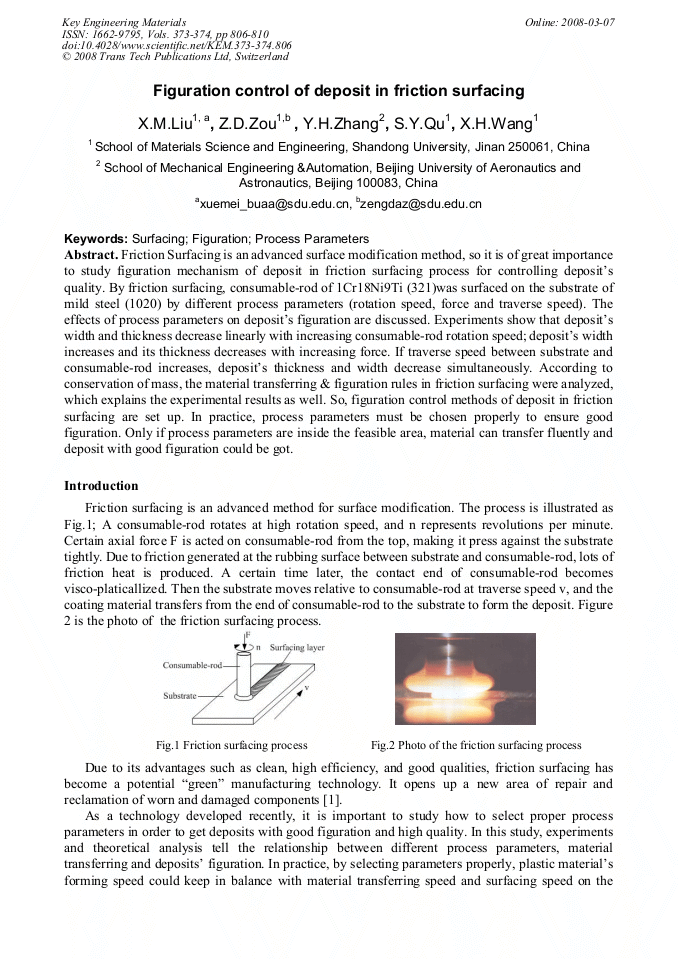

Article Preview

Friction Surfacing is an advanced surface modification method, so it is of great importance to study figuration mechanism of deposit in friction surfacing process for controlling deposit’s quality. By friction surfacing, consumable-rod of 1Cr18Ni9Ti (321)was surfaced on the substrate of mild steel (1020) by different process parameters (rotation speed, force and traverse speed). The effects of process parameters on deposit’s figuration are discussed. Experiments show that deposit’s width and thickness decrease linearly with increasing consumable-rod rotation speed; deposit’s width increases and its thickness decreases with increasing force. If traverse speed between substrate and consumable-rod increases, deposit’s thickness and width decrease simultaneously. According to conservation of mass, the material transferring & figuration rules in friction surfacing were analyzed, which explains the experimental results as well. So, figuration control methods of deposit in friction surfacing are set up. In practice, process parameters must be chosen properly to ensure good figuration. Only if process parameters are inside the feasible area, material can transfer fluently and deposit with good figuration could be got.



Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu




X. M. Liu et al., "Figuration Control of Deposit in Friction Surfacing ", Key Engineering Materials, Vols. 373-374, pp. 806-810, 2008

Online since:

March 2008




[1] W.M. Thomas. An introduction to friction surfacing. First International Conference on Surface Engineering, Brighton U.K., 25-28, June 1985, by Welding Inst., Abington, Cambridge, U. K (1986)261-277.

[2] K. Fukakusa, Real rotational contact plane in friction welding of different diameter material and dissimilar materials: Fundamental study of friction welding, Weld. Int. 11(1997)425-431.


[3] X.M. Liu. Study on thermal/mechanical behaviour and process mechanism of friction surfacing. PhD Thesis, Beijing University of Aeronautics and Astronautics (2005).

[4] J.S. Yao. A Study on the physical process of consumable-rod friction welding. PhD Thesis, Beijing University of Aeronautics and Astronautics (2001).

[5] J. Q. Li, T. Shinoda. Underwater friction surfacing. Surfacing Engineering, 16 (2000) 31-35.

[6] Z.R. Zhang, X.T. Xiao, Y.F. Liu. Coupled thermo -mechanical FEM analysis of twist -compression deformation. Process Metal Figuration Technics, 16 (1998) 37-40.
