An Automatic High Velocity Arc Spraying System

Abstract:

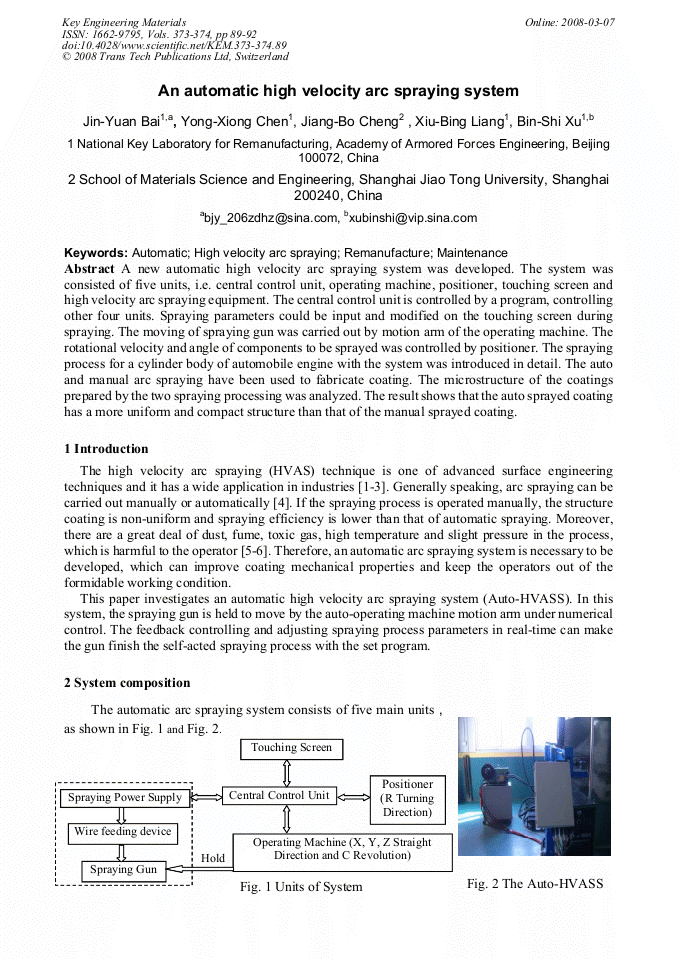

Article Preview

A new automatic high velocity arc spraying system was developed. The system was consisted of five units, i.e. central control unit, operating machine, positioner, touching screen and high velocity arc spraying equipment. The central control unit is controlled by a program, controlling other four units. Spraying parameters could be input and modified on the touching screen during spraying. The moving of spraying gun was carried out by motion arm of the operating machine. The rotational velocity and angle of components to be sprayed was controlled by positioner. The spraying process for a cylinder body of automobile engine with the system was introduced in detail. The auto and manual arc spraying have been used to fabricate coating. The microstructure of the coatings prepared by the two spraying processing was analyzed. The result shows that the auto sprayed coating has a more uniform and compact structure than that of the manual sprayed coating.

Info:

Periodical:

Key Engineering Materials (Volumes 373-374)

Main Theme:

Edited by:

M.K. Lei, X.P. Zhu, K.W. Xu and B.S. Xu

Pages:

89-92

Citation:

J. Y. Bai et al., "An Automatic High Velocity Arc Spraying System", Key Engineering Materials, Vols. 373-374, pp. 89-92, 2008

Online since:

March 2008

Export:

Price:

$38.00

[1] B. S Xu, W. Zhang, S.N. Ma, et al. Structure and properties of coatings deposited by high velocity arc spray technique. ASME Journal of Tribology. 2000, 122(7): 646-649.

DOI: https://doi.org/10.1115/1.555415

[2] B.S. Xu, S.C. Liu and Z.X. Zhu. Foundations and Applications of Remanufacturing Engineering.

[3] D.I. Wimpenny, G.J. Gibbons. Metal spray tooling for composite forming. Journal of Materials Processing Technology 138 (2003) 443-448.

DOI: https://doi.org/10.1016/s0924-0136(03)00114-6

[4] A.P. Newberya, P.S. Grantb. Oxidation during electric arc spray forming of steel. Journal of Materials Processing Technology 178 (2006) 259-269.

[5] S.H. Deng. The study and implementation for real-time monitor and communication system of robot. [D]. Dissertation of Master, China(2003).

[6] S.G. Yan, S.Y. Bai, C.J. Shen The applications of arc spraying device of mechanization. Corrosion and protection, 2002, 23(9): 395-396.

[7] Y.X. Chen, B.S. Xu, Y. Xu, et al. Progress in Applying HVAS Technology to Maintenance & Remanufacture Engineering. China Surface Engineering, 2006, 19(5): 169-173.
