Experimental Research on Orthogonal Cutting and Oblique Cutting of Hardened Steel GCr15

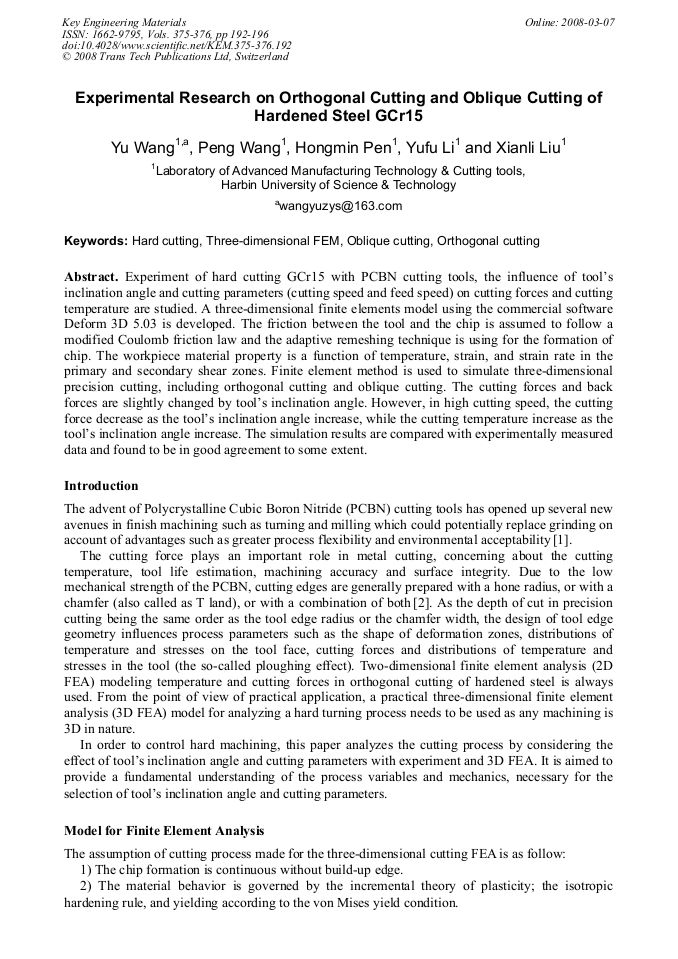

Article Preview

Experiment of hard cutting GCr15 with PCBN cutting tools, the influence of tool’s inclination angle and cutting parameters (cutting speed and feed speed) on cutting forces and cutting temperature are studied. A three-dimensional finite elements model using the commercial software Deform 3D 5.03 is developed. The friction between the tool and the chip is assumed to follow a modified Coulomb friction law and the adaptive remeshing technique is using for the formation of chip. The workpiece material property is a function of temperature, strain, and strain rate in the primary and secondary shear zones. Finite element method is used to simulate three-dimensional precision cutting, including orthogonal cutting and oblique cutting. The cutting forces and back forces are slightly changed by tool’s inclination angle. However, in high cutting speed, the cutting force decrease as the tool’s inclination angle increase, while the cutting temperature increase as the tool’s inclination angle increase. The simulation results are compared with experimentally measured data and found to be in good agreement to some extent.



Key Engineering Materials (Volumes 375-376)

Edited by:

Yingxue Yao, Xipeng Xu and Dunwen Zuo




Y. Wang et al., "Experimental Research on Orthogonal Cutting and Oblique Cutting of Hardened Steel GCr15 ", Key Engineering Materials, Vols. 375-376, pp. 192-196, 2008

Online since:

March 2008




[1] J. Shi and C.R. Liu: Journal of Manufacturing Science and Engineering, (2005), pp.476-483.

[2] Y.C. Yen, A. Jain and T. Altan: Journal of Materials Processing Technology, (2004), pp.72-81.

[3] D.H. Wen: The Mechanism and Technology of Hard Turning with PCBN Tool (Ph.D. Dissertation, DaLian University, China 2002).

[4] J.H. Giovanola: Mechanics of Materials, (1988) No. 7, pp.73-78.

[5] C. Z Duan: Study on Microcosmic Mechanism of Adiabatic Shear Behavior in Orthogonal Cutting of High Strength Steel (Ph.D. Dissertation, DaLian University, China 2002).

[6] D.H. Wen and X.L. Liu: Tool Engineering, (2002) No. 3, pp.11-13.
