Experimental Research on Microelectroforming with Ultrasonic Agitation

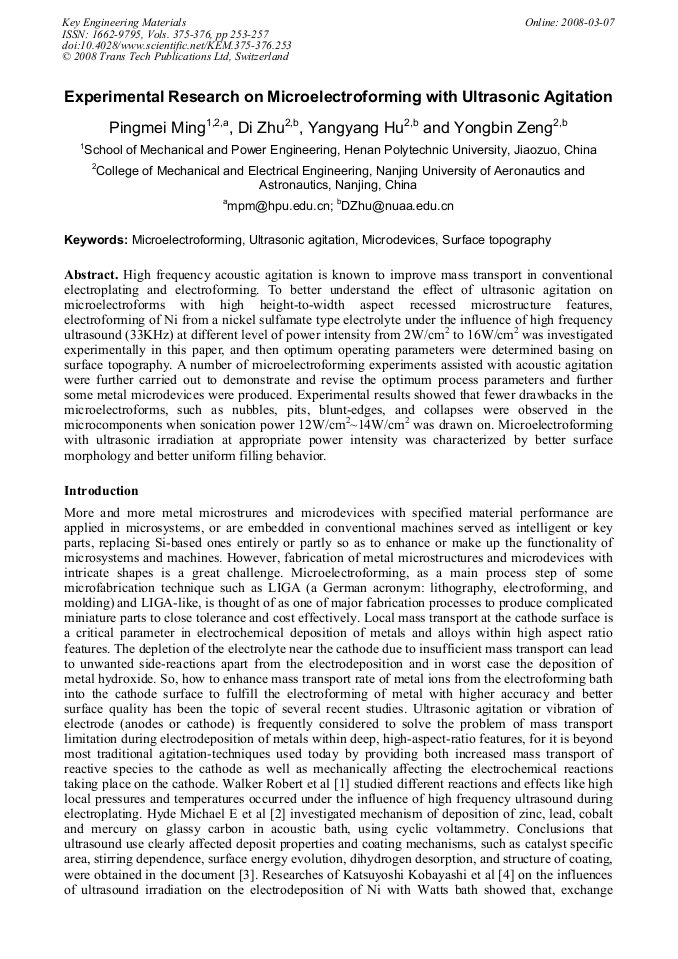

Article Preview

High frequency acoustic agitation is known to improve mass transport in conventional electroplating and electroforming. To better understand the effect of ultrasonic agitation on microelectroforms with high height-to-width aspect recessed microstructure features, electroforming of Ni from a nickel sulfamate type electrolyte under the influence of high frequency ultrasound (33KHz) at different level of power intensity from 2W/cm2 to 16W/cm2 was investigated experimentally in this paper, and then optimum operating parameters were determined basing on surface topography. A number of microelectroforming experiments assisted with acoustic agitation were further carried out to demonstrate and revise the optimum process parameters and further some metal microdevices were produced. Experimental results showed that fewer drawbacks in the microelectroforms, such as nubbles, pits, blunt-edges, and collapses were observed in the microcomponents when sonication power 12W/cm2~14W/cm2 was drawn on. Microelectroforming with ultrasonic irradiation at appropriate power intensity was characterized by better surface morphology and better uniform filling behavior.



Key Engineering Materials (Volumes 375-376)

Edited by:

Yingxue Yao, Xipeng Xu and Dunwen Zuo




P. M. Ming et al., "Experimental Research on Microelectroforming with Ultrasonic Agitation", Key Engineering Materials, Vols. 375-376, pp. 253-257, 2008

Online since:

March 2008
