Experimental Study of the Ultrahigh Speed Grinding Spindle System with a Squeeze Film Damper

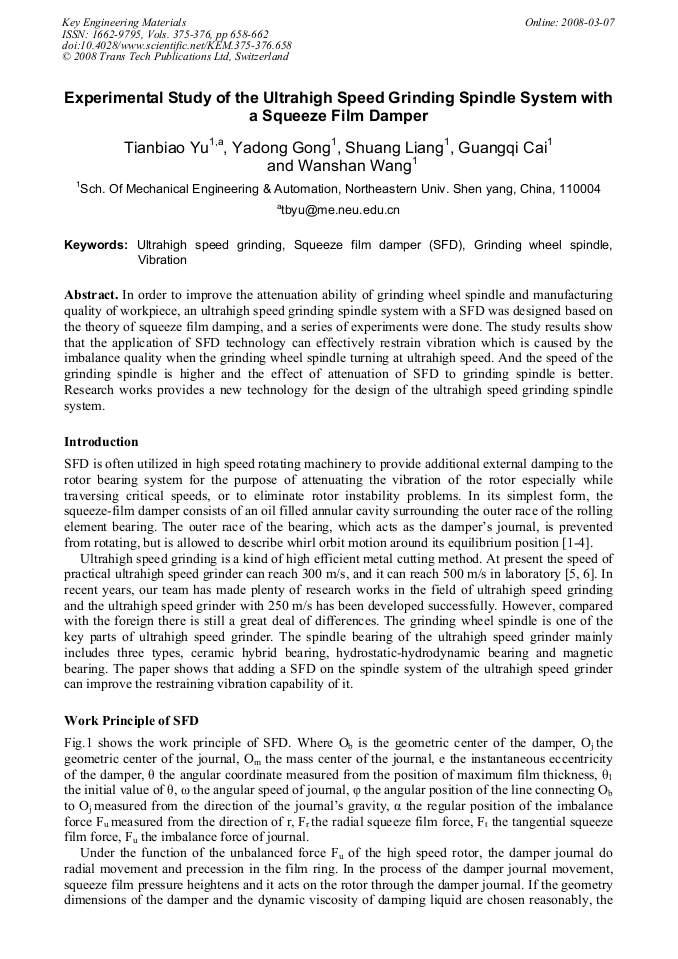

Article Preview

In order to improve the attenuation ability of grinding wheel spindle and manufacturing quality of workpiece, an ultrahigh speed grinding spindle system with a SFD was designed based on the theory of squeeze film damping, and a series of experiments were done. The study results show that the application of SFD technology can effectively restrain vibration which is caused by the imbalance quality when the grinding wheel spindle turning at ultrahigh speed. And the speed of the grinding spindle is higher and the effect of attenuation of SFD to grinding spindle is better. Research works provides a new technology for the design of the ultrahigh speed grinding spindle system.



Key Engineering Materials (Volumes 375-376)

Edited by:

Yingxue Yao, Xipeng Xu and Dunwen Zuo




T. B. Yu et al., "Experimental Study of the Ultrahigh Speed Grinding Spindle System with a Squeeze Film Damper", Key Engineering Materials, Vols. 375-376, pp. 658-662, 2008

Online since:

March 2008




[1] G. Adiletta and L.D. Pietra: Journal of Tribology, Vol. 128 (2006), p.365.

[2] P. Bonello, M.J. Brennan and R. Holmes: Journal of Engineering for Gas Turbines and Power, Vol. 126 (2004), p.855.

[3] J.I. Inayat-Hussain, H. Kanki and N.W. Mureithi: Journal of fluids and Structures, Vol. 17 (2003), p.433.

[4] C.V. Suciu, O. Bonneau and D.B. Picard: Journal of Tribology, Vol. 122 (2000), No. 2, p.211.

[5] H.H. Zhao, X.J. Gao and G.Q. Cai: Chinese Journal of Mechanical Engineering, Vol. 42 (2006) No. 9, p.43.

[6] X.M. Sheng, H.W. Huang and H.Q. Mi: Journal of Hunan University, Vol. 29 (2002), p.73.
