Design of Energy-Controllable Pulse Generator on Micro WEDM

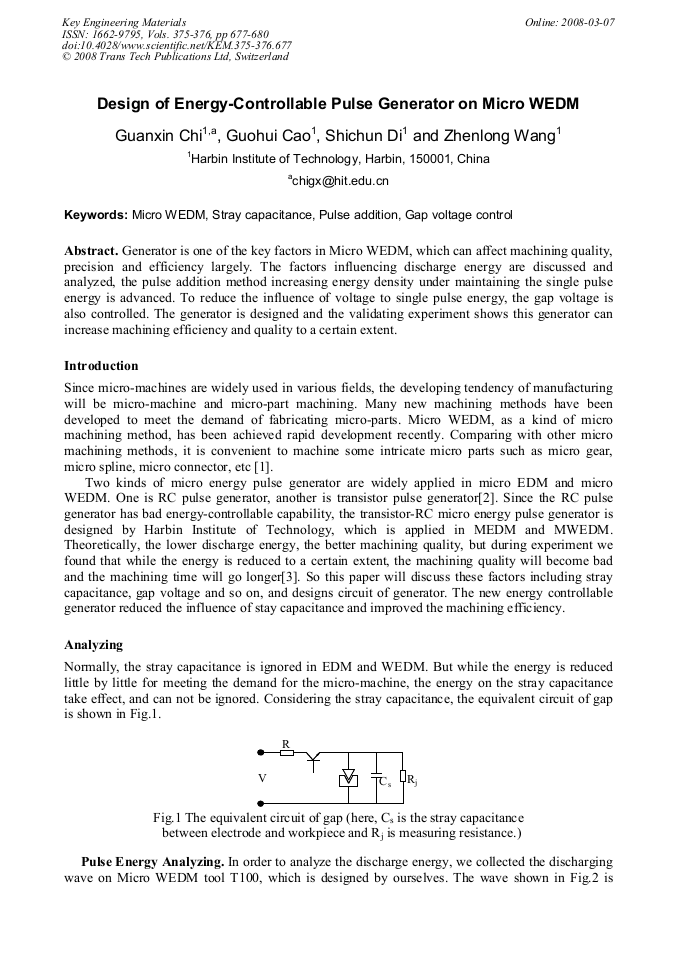

Article Preview

Generator is one of the key factors in Micro WEDM, which can affect machining quality, precision and efficiency largely. The factors influencing discharge energy are discussed and analyzed, the pulse addition method increasing energy density under maintaining the single pulse energy is advanced. To reduce the influence of voltage to single pulse energy, the gap voltage is also controlled. The generator is designed and the validating experiment shows this generator can increase machining efficiency and quality to a certain extent.



Key Engineering Materials (Volumes 375-376)

Edited by:

Yingxue Yao, Xipeng Xu and Dunwen Zuo




G. X. Chi et al., "Design of Energy-Controllable Pulse Generator on Micro WEDM", Key Engineering Materials, Vols. 375-376, pp. 677-680, 2008

Online since:

March 2008




[1] G.X. Chi, S.C. Di, R.L. Huang and B. Yu: Manufacturing Technology & Machine Tool, (2004) No. 10, pp.22-25.

[2] Z.H. Ren, B.Y. Song, R.D. Han and M.Y. Liu: Electromachining & Mould, (2006) No. 3, pp.29-31.

[3] Z.F. Yu: Research on Micro Energy and Controllable Pulse Power Supply for MWEDM (Master Degree, Harbin Institute of Technology, China 2006), pp.36-38.

[4] J.C. Liu, J.Q. Zhao and W.S. Zhao: Non-Traditional Machining (China Machine Press, China 2004).
