Research on Energy-Saving EDM Pulse Power Supply

Abstract:

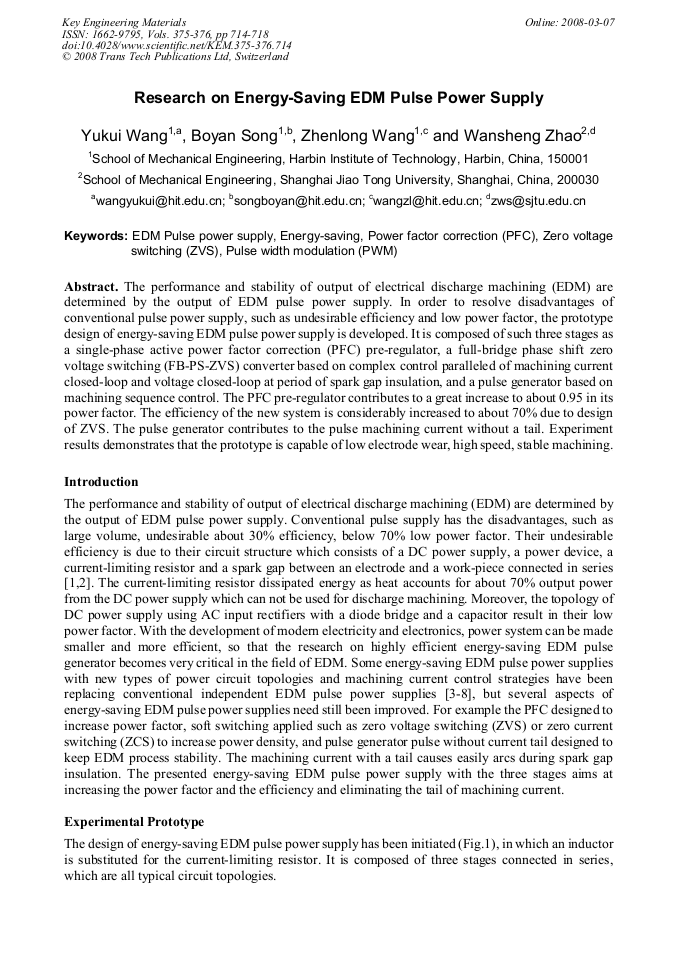

Article Preview

The performance and stability of output of electrical discharge machining (EDM) are determined by the output of EDM pulse power supply. In order to resolve disadvantages of conventional pulse power supply, such as undesirable efficiency and low power factor, the prototype design of energy-saving EDM pulse power supply is developed. It is composed of such three stages as a single-phase active power factor correction (PFC) pre-regulator, a full-bridge phase shift zero voltage switching (FB-PS-ZVS) converter based on complex control paralleled of machining current closed-loop and voltage closed-loop at period of spark gap insulation, and a pulse generator based on machining sequence control. The PFC pre-regulator contributes to a great increase to about 0.95 in its power factor. The efficiency of the new system is considerably increased to about 70% due to design of ZVS. The pulse generator contributes to the pulse machining current without a tail. Experiment results demonstrates that the prototype is capable of low electrode wear, high speed, stable machining.

Info:

Periodical:

Key Engineering Materials (Volumes 375-376)

Edited by:

Yingxue Yao, Xipeng Xu and Dunwen Zuo

Pages:

714-718

DOI:

10.4028/www.scientific.net/KEM.375-376.714

Citation:

Y. K. Wang et al., "Research on Energy-Saving EDM Pulse Power Supply", Key Engineering Materials, Vols. 375-376, pp. 714-718, 2008

Online since:

March 2008

Export:

Price:

$35.00

[1] J.C. Liu, J.Q. Zhao and W.S. Zhao: Nontraditional Machining (China Machine Press, Beijing 2003).

[2] W.S. Zhao: Advanced Electrical Discharge Machining Technology (National Defense Industry Press of China, Beijing 2003).

[3] W.J. Wu, X.H. Mu, C. Liu and Z.Y. Yang: Power Electronics, Vol. 36 (2002) No. 4, pp.6-9.

[4] T. Magara: U. S. Patent 5149931. (1998).

[5] Y.J. Kaneko and S.J. Ito: Japan Patent 5386095. (1999).

[6] O. Haruki, O. Tsuyoshi and H. Masatoshi: Proc. of International Symposium for Electro Machining XIII (Bilbao, 2001), pp.153-160.

[7] C. Rosario, A.C. Luis, J.A. Francisco and B. Salvador: Proc. of the 27 th Annual Conference of the IEEE Industrial Electronics Society (2001), pp.1027-1032.

[8] C. Rosario, J.A. Francisco and B. Salvador: Proc. of International Symposium for Electro Machining XIV (2004), pp.153-160.
