Calibration Technology of the Articulated Arm Flexible CMM

Abstract:

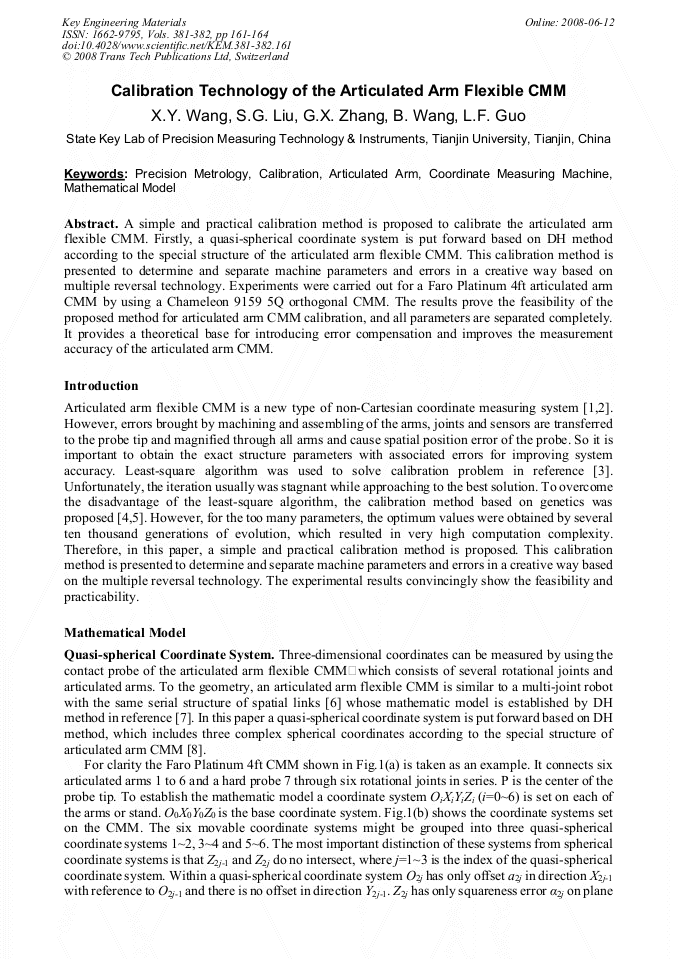

Article Preview

A simple and practical calibration method is proposed to calibrate the articulated arm flexible CMM. Firstly, a quasi-spherical coordinate system is put forward based on DH method according to the special structure of the articulated arm flexible CMM. This calibration method is presented to determine and separate machine parameters and errors in a creative way based on multiple reversal technology. Experiments were carried out for a Faro Platinum 4ft articulated arm CMM by using a Chameleon 9159 5Q orthogonal CMM. The results prove the feasibility of the proposed method for articulated arm CMM calibration, and all parameters are separated completely. It provides a theoretical base for introducing error compensation and improves the measurement accuracy of the articulated arm CMM.

Info:

Periodical:

Key Engineering Materials (Volumes 381-382)

Edited by:

Wei Gao, Yasuhiro Takaya, Yongsheng Gao and Michael Krystek

Pages:

161-164

DOI:

10.4028/www.scientific.net/KEM.381-382.161

Citation:

X.Y. Wang et al., "Calibration Technology of the Articulated Arm Flexible CMM", Key Engineering Materials, Vols. 381-382, pp. 161-164, 2008

Online since:

June 2008

Export:

Price:

$35.00

[1] G. X. Zhang: Coordinate Measuring Machines, (Tianjin University Press, Tianjin 1999).

[2] J. A. Bosch: Coordinate Measuring Machines and systems, (Marcel Decker Inc, New York USA 1995).

[3] D. Ye, R. S. Che: 2nd ISIST, Ji'nan, China, Vol. 3 (2002), pp.145-149.

[4] Y. Hu, K. Xiao: Computer Applications, Vol. 25 (2005), No. 8, p.1913-(1915).

[5] X. Zou, D. H. Li: Optical and Precision Engineering, Vol. 9 (2001), No. 3, pp.252-256.

[6] P. P. Wang, Y. T. Fei: Journal of Xi'an Jiaotong University, Vol. 40 (2006), No. 3, pp.284-288.

[7] J. Denavit, R. Hartenberg: ASME Journal of Applied Mechanics, Vol. 22 (1995), No. 6, pp.215-221.

[8] X. Y. Wang, S.G. Liu: Nanotechnology and Precision Engineering, Vol. 3 (2005), No. 4, pp.262-267.
