An Experimental Study on the Fatigue of Structural Steels with Various Welding Details

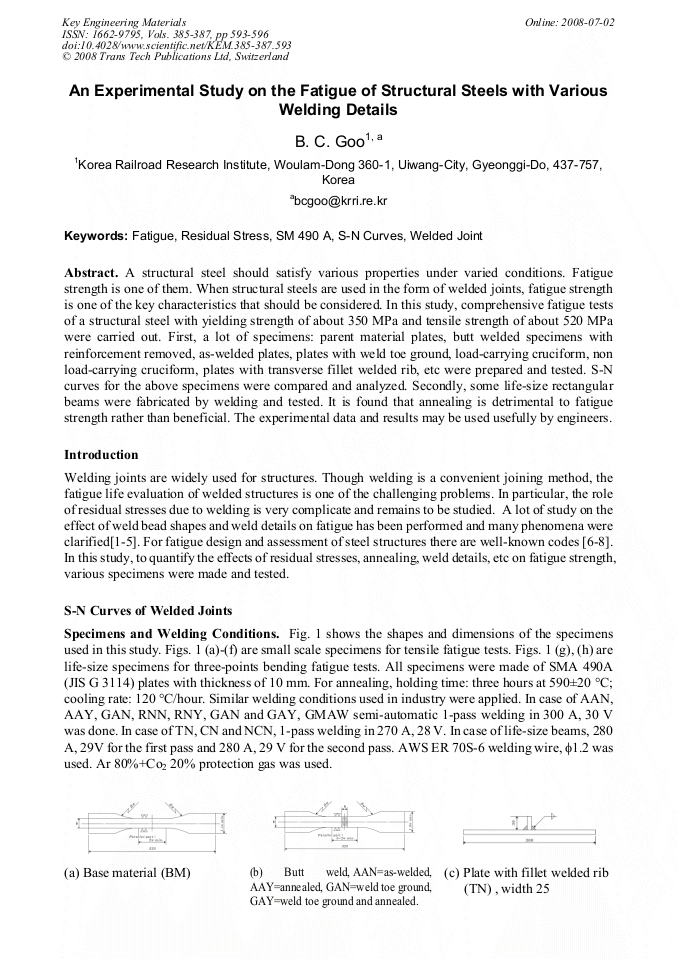

Article Preview

A structural steel should satisfy various properties under varied conditions. Fatigue strength is one of them. When structural steels are used in the form of welded joints, fatigue strength is one of the key characteristics that should be considered. In this study, comprehensive fatigue tests of a structural steel with yielding strength of about 350 MPa and tensile strength of about 520 MPa were carried out. First, a lot of specimens: parent material plates, butt welded specimens with reinforcement removed, as-welded plates, plates with weld toe ground, load-carrying cruciform, non load-carrying cruciform, plates with transverse fillet welded rib, etc were prepared and tested. S-N curves for the above specimens were compared and analyzed. Secondly, some life-size rectangular beams were fabricated by welding and tested. It is found that annealing is detrimental to fatigue strength rather than beneficial. The experimental data and results may be used usefully by engineers.



Key Engineering Materials (Volumes 385-387)

Edited by:

H.S. Lee, In Seok Yoon and Prof. Ferri M.H.Aliabadi




B. C. Goo, "An Experimental Study on the Fatigue of Structural Steels with Various Welding Details", Key Engineering Materials, Vols. 385-387, pp. 593-596, 2008

Online since:

July 2008





[1] R. P. Newman and T. R. Gurney, British Welding Journal, (1959), p.569.

[2] K. Takahashi and A. Ito, Japanese J. of Welding, Vol. 40, No. 8 (1971), p.723.

[3] S. Yoshida, M. Inagaki, M. Kanao, E. Sasaki, M. Nihei and M. Kamakura, Japanese J. of Welding, Vol. 47, No. 9 (1978), p.5.

[4] W. Fricke and A. Muller-Schmerl, Journal of Offshore Mechanics and Arctic Engineering, Vol. 120 (1998), p.97.

[5] B.C. Goo, J.H. Kim, J.W. Seo and C.S. Seok, Key Engineering Materials, Vol. 270-273 (2004), p.2302.

[6] BS 7608, 1993, Code of Practice for Fatigue Design and Assessment of Steel Structures.

[7] Japanese Society of Steel Structures, 1993, Fatigue Design Guide of Steel Structures.

[8] ENV 1993-1-1, Eurocode 3: Design of Steel Structures.
