Preparation of MBi4Ti4O15 (M=Ba,Ca) Thick Films by Screen Printing

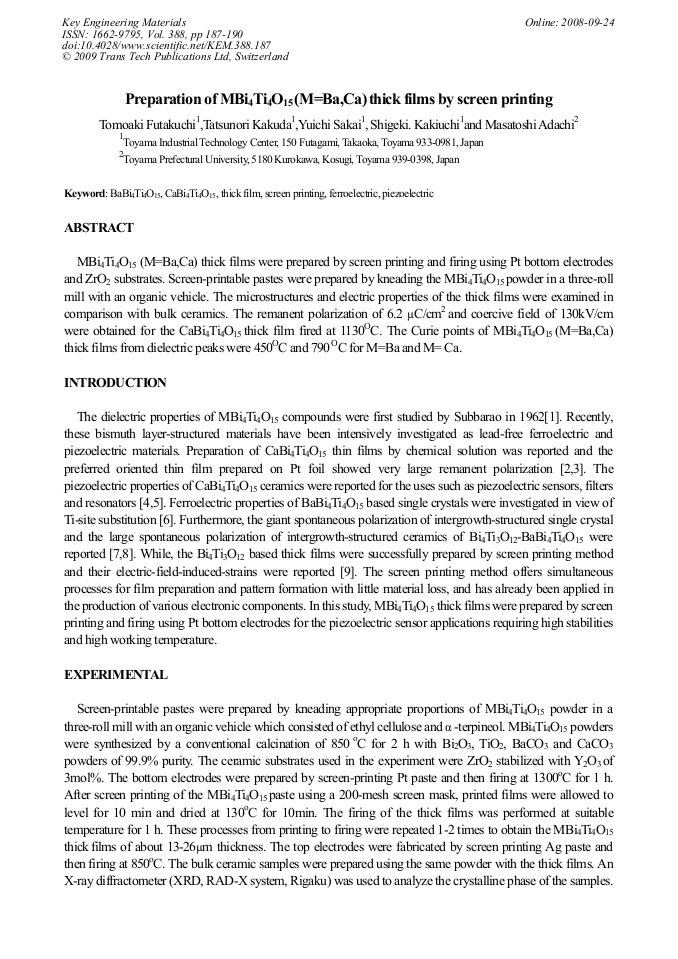

Article Preview

MBi4Ti4O15 (M=Ba,Ca) thick films were prepared by screen printing and firing using Pt bottom electrodes and ZrO2 substrates. Screen-printable pastes were prepared by kneading the MBi4Ti4O15 powder in a three-roll mill with an organic vehicle. The microstructures and electric properties of the thick films were examined in comparison with bulk ceramics. The remanent polarization of 6.2 9C/cm2 and coercive field of 130kV/cm were obtained for the CaBi4Ti4O15 thick film fired at 1130OC. The Curie points of MBi4Ti4O15 (M=Ba,Ca) thick films from dielectric peaks were 450OC and 790 OC for M=Ba and M= Ca.



Edited by:

Kazumi Kato, Tadashi Takenaka, Masasuke Takata and Kazuo Shinozaki




T. Futakuchi et al., "Preparation of MBi4Ti4O15 (M=Ba,Ca) Thick Films by Screen Printing", Key Engineering Materials, Vol. 388, pp. 187-190, 2009

Online since:

September 2008




[1] E. C. Subbaro, J. Phys. Chem. Solid, 23(1962), p.655.

[2] D. Fu, K. Suzuki and K. Kato, Key Eng. Mater., 269 (2004), p.41.

[3] K. Kato, D. Fu, K. Suzuki, K. Tanaka, K. Nishizawa and T. Miki, Appl. Phys. Lett., 85 (2004), p.3519.

[4] M. Kimura, T. Sawada, A. Ando and Y. Sakabe, Jpn. J. Appl. Phys., 38 (1999), p.5557.

[5] T. Takeuchi, T. Tani and Y. Saito, Jpn. J. Appl. Phys., 39 (2000), p.5577.

[6] H. Irie, M. Miyayama and T. Kido,. Key Eng. Mater., 215 (2002), p.31..

[7] T. Kobayashi, Y. Noguchi and M. Miyayama,. Key Eng. Mater., 301 (2006), p.3.

[8] T. Kobayashi, Y. Noguchi and M. Miyayama, Jpn. J. Appl. Phys., 43 (2004), p.53.

[9] T. Futakuchi, T. Kakuda, Y. Sakai, T. Iijima and M. Adachi, Key Eng. Mater., 350 (2007), p.115.

[10] S. Matsuzawa, Y. Hiruma, R. Aoyagi, H. Nagata and T. Takenaka, Key Eng. Mater., 320 (2006).
