A Truing Technique of Flattening Diamond Grains for Fabricating Microstructures with Fine Surfaces

Abstract:

Article Preview

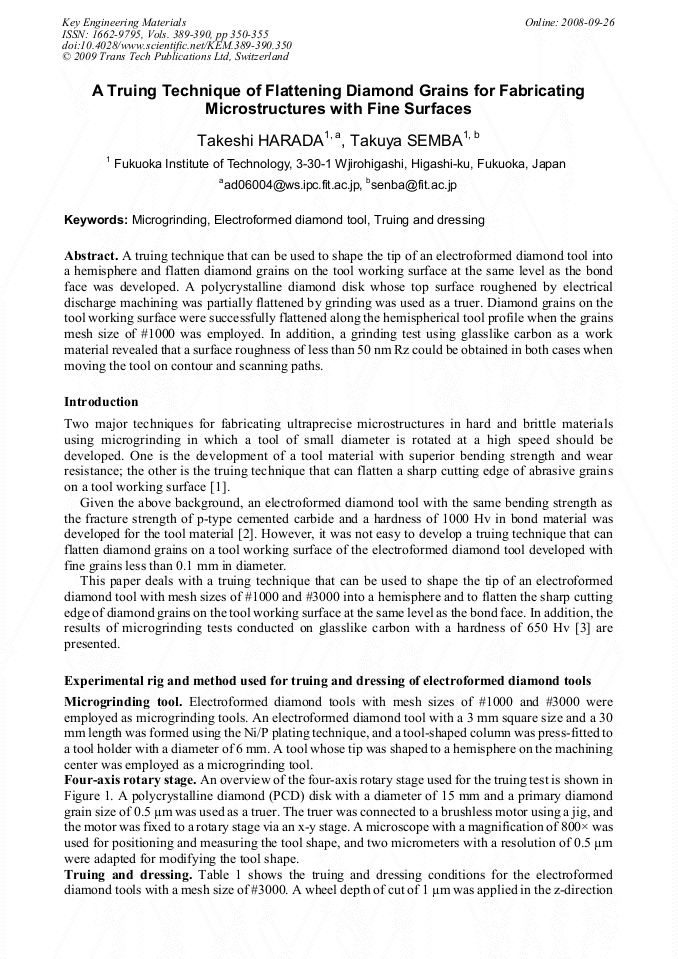

A truing technique that can be used to shape the tip of an electroformed diamond tool into a hemisphere and flatten diamond grains on the tool working surface at the same level as the bond face was developed. A polycrystalline diamond disk whose top surface roughened by electrical discharge machining was partially flattened by grinding was used as a truer. Diamond grains on the tool working surface were successfully flattened along the hemispherical tool profile when the grains mesh size of #1000 was employed. In addition, a grinding test using glasslike carbon as a work material revealed that a surface roughness of less than 50 nm Rz could be obtained in both cases when moving the tool on contour and scanning paths.

Info:

Periodical:

Key Engineering Materials (Volumes 389-390)

Edited by:

Tsunemoto Kuriyagawa, Libo Zhou, Jiwang Yan and Nobuhito Yoshihara

Pages:

350-355

DOI:

10.4028/www.scientific.net/KEM.389-390.350

Citation:

T. Harada and T. Semba, "A Truing Technique of Flattening Diamond Grains for Fabricating Microstructures with Fine Surfaces", Key Engineering Materials, Vols. 389-390, pp. 350-355, 2009

Online since:

September 2008
