Fractal Analysis of Self-Sharpening Phenomenon in cBN Grinding

Abstract:

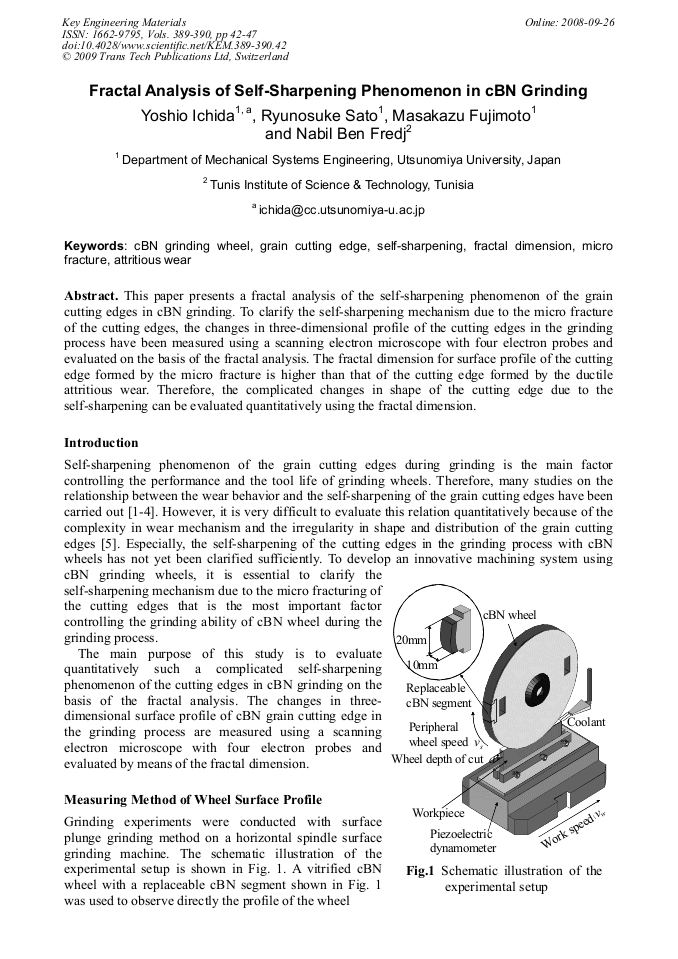

Article Preview

This paper presents a fractal analysis of the self-sharpening phenomenon of the grain cutting edges in cBN grinding. To clarify the self-sharpening mechanism due to the micro fracture of the cutting edges, the changes in three-dimensional profile of the cutting edges in the grinding process have been measured using a scanning electron microscope with four electron probes and evaluated on the basis of the fractal analysis. The fractal dimension for surface profile of the cutting edge formed by the micro fracture is higher than that of the cutting edge formed by the ductile attritious wear. Therefore, the complicated changes in shape of the cutting edge due to the self-sharpening can be evaluated quantitatively using the fractal dimension.

Info:

Periodical:

Key Engineering Materials (Volumes 389-390)

Edited by:

Tsunemoto Kuriyagawa, Libo Zhou, Jiwang Yan and Nobuhito Yoshihara

Pages:

42-47

DOI:

10.4028/www.scientific.net/KEM.389-390.42

Citation:

Y. Ichida et al., "Fractal Analysis of Self-Sharpening Phenomenon in cBN Grinding", Key Engineering Materials, Vols. 389-390, pp. 42-47, 2009

Online since:

September 2008

Export:

Price:

$35.00

[1] H. Tsuwa: J. Jpn. Soc. Prec. Eng., 27 (11) (1961), p.719.

[2] H. Yoshikawa: J. Jpn. Soc. Prec. Eng., 26 (11) (1960), p.691.

[3] Y. Ichida, N. B. Fredj, N. Usui: The 2nd Int. ABTEC Conf. JSGA, 11 (1995), p.501.

[4] Y. Ichida, K. Kishi: ASME J. Manuf. Sci. Eng., 119 (1) (1997), p.110.

[5] H. Tsuwa: J. Jpn. Soc. Prec. Eng., 27 (6) (1961), p.414.

[6] M. Fujimoto, Y. Ichida, R. Sato, Y. Morimoto: Jpn. Soc. Mech. Eng. Int. J. Series C, 49 (1) (2006), p.106.

[7] B. B. Mandelbrot: W. H. freeman and Company, New York, (1983), p.109.

[8] S. Hagiwara, T. Obikawa, H. Yanai: J. Jpn. Soc. Prec. Eng., 61 (12) (1995), p.1760.

[9] T. Sakai, T. Sakai, A. Ueno: Trans. Jpn. Soc. Mech. Eng. Series A, 64 (620) (1998).
