An Investigation into Surface Roughness of EDM Using Soft Particles Suspension in Silicone Oil

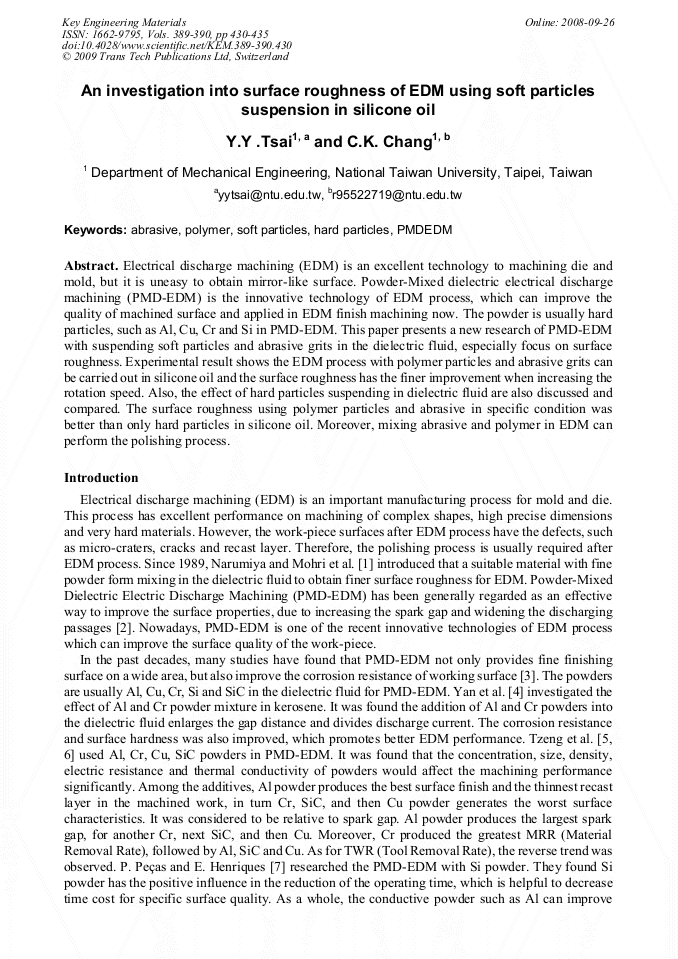

Article Preview

Electrical discharge machining (EDM) is an excellent technology to machining die and mold, but it is uneasy to obtain mirror-like surface. Powder-Mixed dielectric electrical discharge machining (PMD-EDM) is the innovative technology of EDM process, which can improve the quality of machined surface and applied in EDM finish machining now. The powder is usually hard particles, such as Al, Cu, Cr and Si in PMD-EDM. This paper presents a new research of PMD-EDM with suspending soft particles and abrasive grits in the dielectric fluid, especially focus on surface roughness. Experimental result shows the EDM process with polymer particles and abrasive grits can be carried out in silicone oil and the surface roughness has the finer improvement when increasing the rotation speed. Also, the effect of hard particles suspending in dielectric fluid are also discussed and compared. The surface roughness using polymer particles and abrasive in specific condition was better than only hard particles in silicone oil. Moreover, mixing abrasive and polymer in EDM can perform the polishing process.



Key Engineering Materials (Volumes 389-390)

Edited by:

Tsunemoto Kuriyagawa, Libo Zhou, Jiwang Yan and Nobuhito Yoshihara




Y. Y. Tsai and C. K. Chang, "An Investigation into Surface Roughness of EDM Using Soft Particles Suspension in Silicone Oil", Key Engineering Materials, Vols. 389-390, pp. 430-435, 2009

Online since:

September 2008




[1] H. Narumiya, N. Mohri, N. Saito, H. Ohtake, Y. Tsunekawa, T. Takawashi and K. Kobayashi: Proceedings of the 9th International Symposium for Electrical Machining (1989), pp.5-8.

[2] W.S. Zhao, Q.G. Meng and Z.L. Wang: J. Mater. Process. Technol. Vol. 129 (2002), pp.30-33.

[3] N. Mohri, N. Saito and M. Higashi: CIRP Ann. Vol. 40/1 (1991), pp.207-210.

[4] B. H. Yan, Y. C. Lin, F. U. Huang and C. H. Wang: Mate. Trans. Vol. 42 (2001), pp.2597-2604.

[5] Y. F. Tzeng and F. C. Chen: J. Mater. Process. Technol. Vol. 170 (2005), pp.385-391.

[6] Y. F. Tzeng and C. Y. Lee: Int. J. Adv. Manuf. Technol. Vol. 17 (2001), pp.586-592.

[7] P. Peças and E. Henriques: Int. J. Mach. Tools Manuf. Vol. 43 (2003), pp.1465-1471.

[8] Y.S. Wong, L.C. Lim, Iqbal Rahuman and W.M. Tee: J. Mater. Process. Technol. Vol. 79 (1998), pp.30-40.

[9] A.C. Wang and S.H. Weng: J. Mater. Process. Technol. Vol. 192-193 (2007), pp.486-490.

[10] Y. Y. Tsai, C. H. Tseng and C. K. Chang: Proceedings of Advances in Materials and Processing Technologies (2007).

[11] W.B. Kim, S.J. Lee, Y.J. Kim and E. S Lee: Int. J. Mach. Tools Manuf. Vol. 43 (2003), pp.81-88.
