Damage Detection of Concrete Structures Using Acoustic Emission

Abstract:

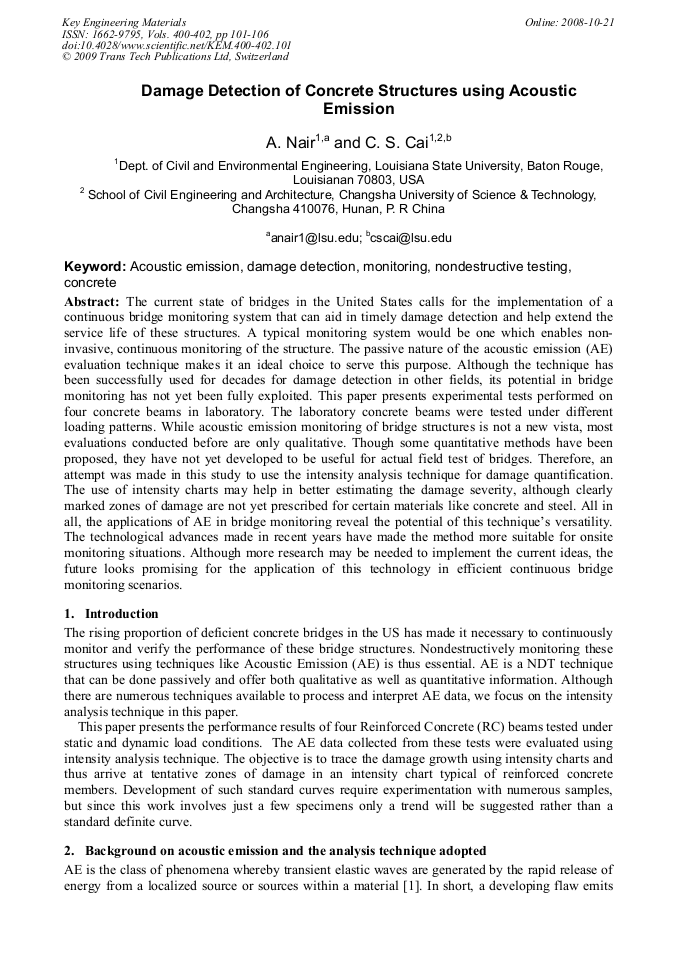

Article Preview

The current state of bridges in the United States calls for the implementation of a continuous bridge monitoring system that can aid in timely damage detection and help extend the service life of these structures. A typical monitoring system would be one which enables non-invasive, continuous monitoring of the structure. The passive nature of the acoustic emission (AE) evaluation technique makes it an ideal choice to serve this purpose. Although the technique has been successfully used for decades for damage detection in other fields, its potential in bridge monitoring has not yet been fully exploited. This paper presents experimental tests performed on four concrete beams in laboratory. The laboratory concrete beams were tested under different loading patterns. While acoustic emission monitoring of bridge structures is not a new vista, most evaluations conducted before are only qualitative. Though some quantitative methods have been proposed, they have not yet developed to be useful for actual field test of bridges. Therefore, an attempt was made in this study to use the intensity analysis technique for damage quantification. The use of intensity charts may help in better estimating the damage severity, although clearly marked zones of damage are not yet prescribed for certain materials like concrete and steel. All in all, the applications of AE in bridge monitoring reveal the potential of this technique’s versatility. The technological advances made in recent years have made the method more suitable for onsite monitoring situations. Although more research may be needed to implement the current ideas, the future looks promising for the application of this technology in efficient continuous bridge monitoring scenarios.

Info:

Periodical:

Key Engineering Materials (Volumes 400-402)

Edited by:

Jingsi Huo, Yan Xiao, Zongjin Li and Shuaib Ahmad

Pages:

101-106

DOI:

10.4028/www.scientific.net/KEM.400-402.101

Citation:

A. Nair and C.S. Cai, "Damage Detection of Concrete Structures Using Acoustic Emission", Key Engineering Materials, Vols. 400-402, pp. 101-106, 2009

Online since:

October 2008
