Topology Optimization of One Special Carriage’s Square Cabin

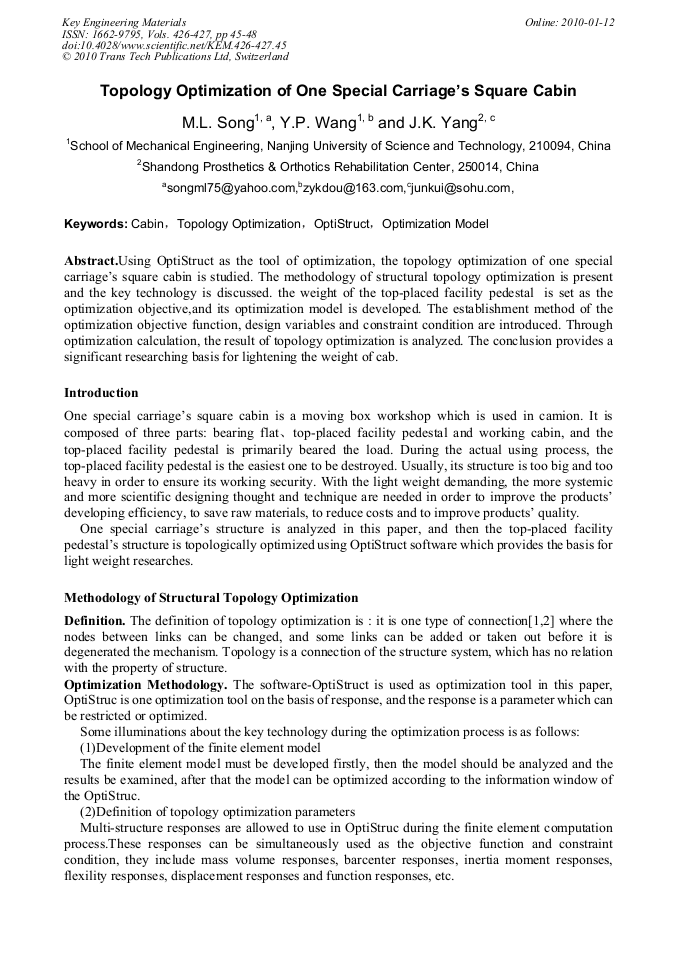

Article Preview

Using OptiStruct as the tool of optimization, the topology optimization of one special carriage’s square cabin is studied. The methodology of structural topology optimization is present and the key technology is discussed. the weight of the top-placed facility pedestal is set as the optimization objective,and its optimization model is developed. The establishment method of the optimization objective function, design variables and constraint condition are introduced. Through optimization calculation, the result of topology optimization is analyzed. The conclusion provides a significant researching basis for lightening the weight of cab.



Key Engineering Materials (Volumes 426-427)

Edited by:

Dunwen Zuo, Hun Guo, Guoxing Tang, Weidong Jin, Chunjie Liu and Chun Su




M.L. Song et al., "Topology Optimization of One Special Carriage’s Square Cabin", Key Engineering Materials, Vols. 426-427, pp. 45-48, 2010

Online since:

January 2010




[1] D.L. ZHU, J.W. CHEN, J. YU and C.L. FENG: Machine Building and Automation (2005) No. 6, pp.7-11.

[2] S.Q. XU and R.W. XIA: ACTA Aeronautica ET Astronautica Sinica (1995) No. 4, pp.385-396.

[3] Z.B. WU and S. LI: Aeronautical Computer Technique, (2006) No. 6, pp.9-12.

[4] Z. LUO, L.P. CHEN, Y.Y. HUANG and Y.Q. ZHANG: Advances in Mechanics (2004) No. 4, pp.463-476.
