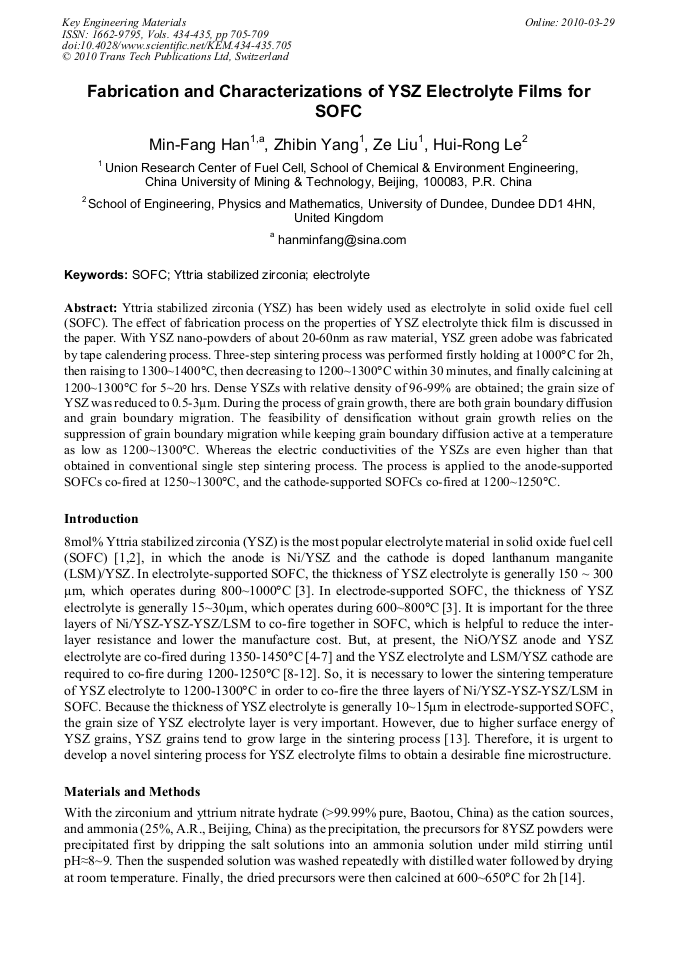

Fabrication and Characterizations of YSZ Electrolyte Films for SOFC
Yttria stabilized zirconia (YSZ) has been widely used as electrolyte in solid oxide fuel cell (SOFC). The effect of fabrication process on the properties of YSZ electrolyte thick film is discussed in the paper. With YSZ nano-powders of about 20-60nm as raw material, YSZ green adobe was fabricated by tape calendering process. Three-step sintering process was performed firstly holding at 1000°C for 2h, then raising to 1300~1400°C, then decreasing to 1200~1300°C within 30 minutes, and finally calcining at 1200~1300°C for 5~20 hrs. Dense YSZs with relative density of 96-99% are obtained; the grain size of YSZ was reduced to 0.5-3µm. During the process of grain growth, there are both grain boundary diffusion and grain boundary migration. The feasibility of densification without grain growth relies on the suppression of grain boundary migration while keeping grain boundary diffusion active at a temperature as low as 1200~1300°C. Whereas the electric conductivities of the YSZs are even higher than that obtained in conventional single step sintering process. The process is applied to the anode-supported SOFCs co-fired at 1250~1300°C, and the cathode-supported SOFCs co-fired at 1200~1250°C.
Wei Pan and Jianghong Gong
M. F. Han et al., "Fabrication and Characterizations of YSZ Electrolyte Films for SOFC", Key Engineering Materials, Vols. 434-435, pp. 705-709, 2010
