Anomalous Transformation-Induced Deformation in Gum Metal

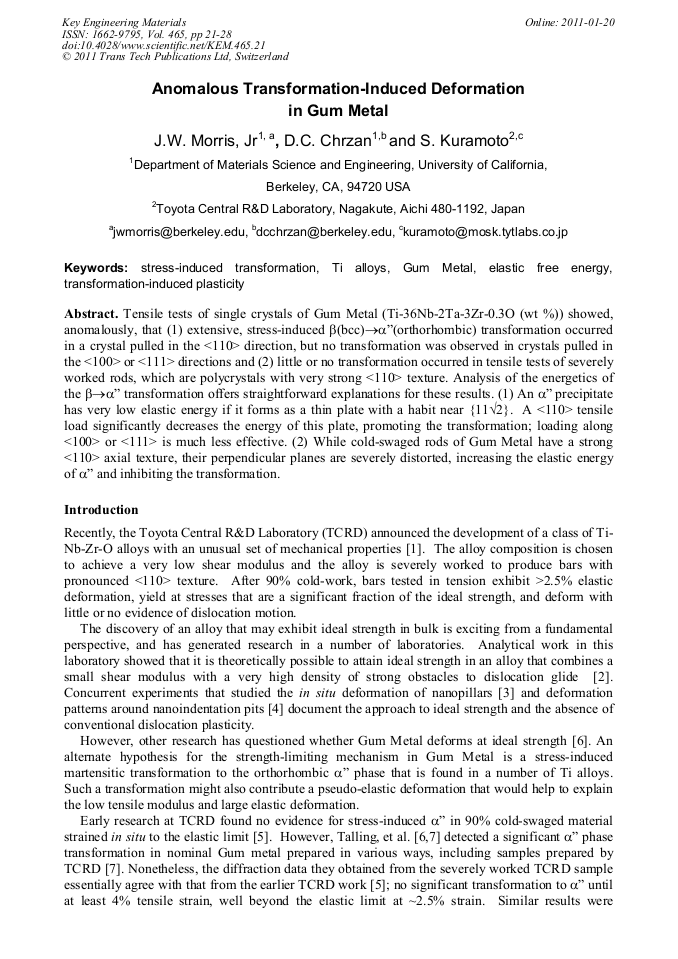

Article Preview

Tensile tests of single crystals of Gum Metal (Ti-36Nb-2Ta-3Zr-0.3O (wt %)) showed, anomalously, that (1) extensive, stress-induced (bcc)”(orthorhombic) transformation occurred in a crystal pulled in the <110> direction, but no transformation was observed in crystals pulled in the <100> or <111> directions and (2) little or no transformation occurred in tensile tests of severely worked rods, which are polycrystals with very strong <110> texture. Analysis of the energetics of the ” transformation offers straightforward explanations for these results. (1) An ” precipitate has very low elastic energy if it forms as a thin plate with a habit near {11√2}. A <110> tensile load significantly decreases the energy of this plate, promoting the transformation; loading along <100> or <111> is much less effective. (2) While cold-swaged rods of Gum Metal have a strong <110> axial texture, their perpendicular planes are severely distorted, increasing the elastic energy of ” and inhibiting the transformation.



Edited by:

Pavel Šandera






J.W. Morris et al., "Anomalous Transformation-Induced Deformation in Gum Metal", Key Engineering Materials, Vol. 465, pp. 21-28, 2011

Online since:

January 2011




[1] T. Saito, T. Furuta, J.H. Hwang, S. Kuramoto, K. Nishino, N. Suzuki, R. Chen, A. Yamada, K. Ito, Y. Seno, T. Nonaka, H. Ikehata, N. Nagasako, C. Iwamoto, Y. Ikuhara and T. Sakuma, Science, 300, 464 (2003).

DOI: 10.4028/

[2] T. Li, J.W. Morris, Jr., D.C. Chrzan, N. Nagasato and S. Kuramoto, Phys. Rev. Lett., 98, 105503/1-4 (2007).

[3] E. Withey, A.M. Minor, D.C. Chrzan, J.W. Morris, Jr. and S. Kuramoto, Acta Mater., 58, 2652 (2010).

[4] E. Withey, M. Jin, A Minor, S. Kuramoto, D.C. Chrzan and J.W. Morris, Jr., Mat. Science Eng. (A), 493, 26 (2008).

[5] S. Kuramoto, T. Furuta, J.H. Hwang, K. Nishino and T Saito, Met. and Mat. Trans., 37A, 657 (2006).

[6] R.J. Talling, R.J. Dashwood, M. Jackson, and D. Dye, Acta Mater, 57, 1188 (2009).

[7] R.J. Talling, R.J. Dashwood, M. Jackson, S. Kuramoto and D. Dye, Scripta Mater, 59, 66 (2008).

[8] N. Takesue, Y. Shimizu, T. Yano, H. Hara and S. Kuramoto, J. Cryst. Growth, 311, 3319 (2009).

[9] J.W. Morris, Jr., Y. Hanlumyuang, M. Sherburne, E. Withey, D.C. Chrzan, S. Kuramoto, Y. Hayashi and M. Hara, Acta Mater., 58, 3271 (2010).

DOI: 10.1016/j.actamat.2010.02.001

[10] A.J. Khachaturyan, The Theory of Structural Transformations in Solids, J. Wiley, New York (1983).

[11] J.W. Morris, Jr., Phil. Mag. 90, 3-24 (2010).
