Acceleration of Apatite Nucleation on Parallel Aligned Ti-Substrates with Optimum Gaps by UV-Light Pre-Irradiation

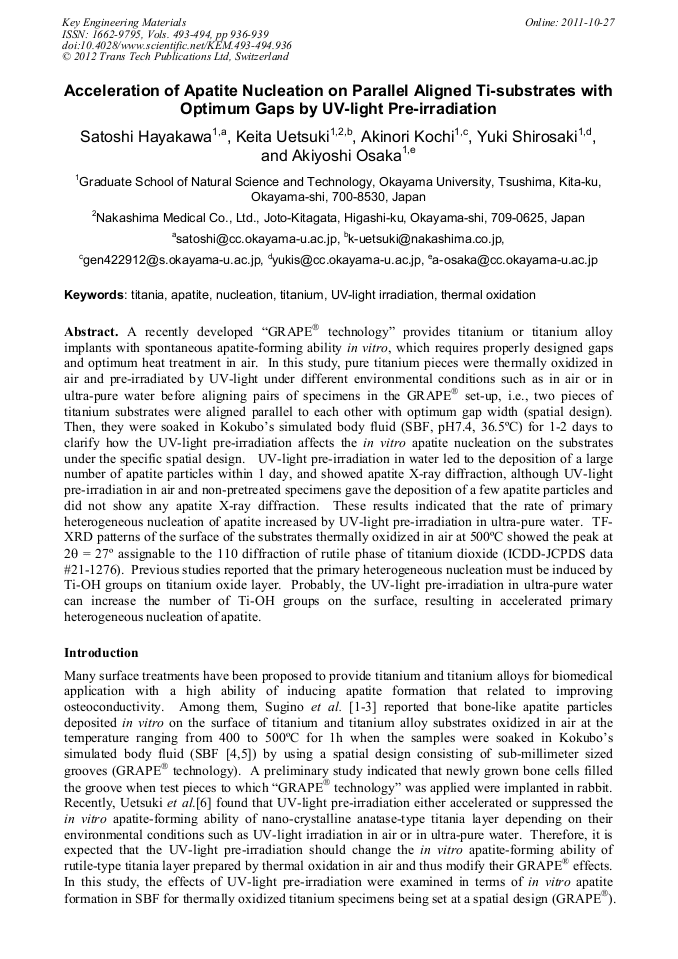

Article Preview

A recently developed “GRAPE® technology” provides titanium or titanium alloy implants with spontaneous apatite-forming ability in vitro, which requires properly designed gaps and optimum heat treatment in air. In this study, pure titanium pieces were thermally oxidized in air and pre-irradiated by UV-light under different environmental conditions such as in air or in ultra-pure water before aligning pairs of specimens in the GRAPE® set-up, i.e., two pieces of titanium substrates were aligned parallel to each other with optimum gap width (spatial design). Then, they were soaked in Kokubo’s simulated body fluid (SBF, pH7.4, 36.5°C) for 1-2 days to clarify how the UV-light pre-irradiation affects the in vitro apatite nucleation on the substrates under the specific spatial design. UV-light pre-irradiation in water led to the deposition of a large number of apatite particles within 1 day, and showed apatite X-ray diffraction, although UV-light pre-irradiation in air and non-pretreated specimens gave the deposition of a few apatite particles and did not show any apatite X-ray diffraction. These results indicated that the rate of primary heterogeneous nucleation of apatite increased by UV-light pre-irradiation in ultra-pure water. TF-XRD patterns of the surface of the substrates thermally oxidized in air at 500°C showed the peak at 2θ = 27º assignable to the 110 diffraction of rutile phase of titanium dioxide (ICDD-JCPDS data #21-1276). Previous studies reported that the primary heterogeneous nucleation must be induced by Ti-OH groups on titanium oxide layer. Probably, the UV-light pre-irradiation in ultra-pure water can increase the number of Ti-OH groups on the surface, resulting in accelerated primary heterogeneous nucleation of apatite.



Key Engineering Materials (Volumes 493-494)

Main Theme:

Edited by:

Eyup Sabri Kayali, Gültekin Göller and Ipek Akin




S. Hayakawa et al., "Acceleration of Apatite Nucleation on Parallel Aligned Ti-Substrates with Optimum Gaps by UV-Light Pre-Irradiation", Key Engineering Materials, Vols. 493-494, pp. 936-939, 2012

Online since:

October 2011




[1] A. Sugino, C. Ohtsuki, K. Tsuru, S. Hayakawa, T. Nakano, Y. Okazaki, A. Osaka, Acta Biomater. 5(2009) 298-304.

[2] A. Sugino, K. Tsuru, S. Hayakawa, K. Kikuta, G. Kawachi, A. Osaka, C. Ohtsuki, J. Ceram. Soc. Japan 117 (2009) 515-520.


[3] Y. Nakao, A. Sugino, K. Tsuru, K. Uetsuki, Y. Shirosaki, S. Hayakawa, A. Osaka, , J. Ceram. Soc. Japan, 118 (2010) 483-486.


[4] T. Kokubo, H. Takadama, Biomater. 27 (2006) 2907-2915.

[5] P. Li, C. Ohtsuki, T. Kokubo, K. Nakanishi, N. Soga, K. de Groot, J. Biomed. Mater. Res. 28 (1994) 7-15.

[6] K. Uetsuki, H. Kaneda, Y. Shirosaki, S. Hayakawa, A. Osaka, Mater. Sci. Eng. B, 173 (2010) 213-215.
